XC4005-6PQ160I
View detailed images (5)

XC4005-6PQ160I

SKU: XC4005-6PQ160I

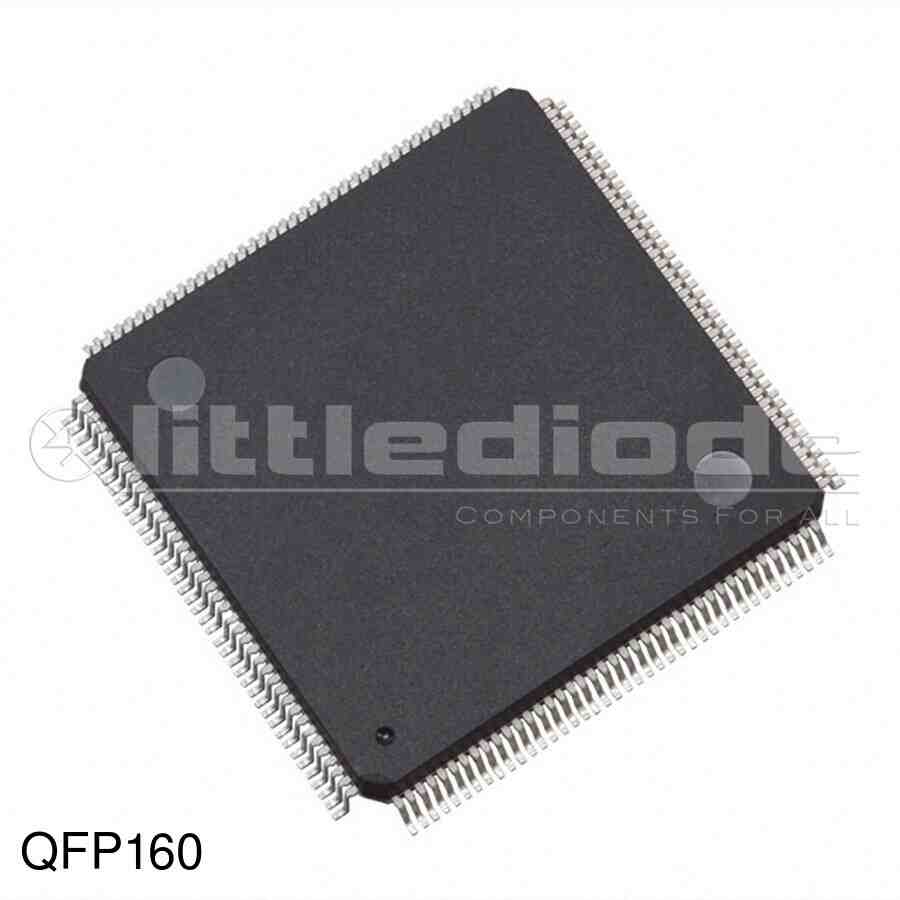

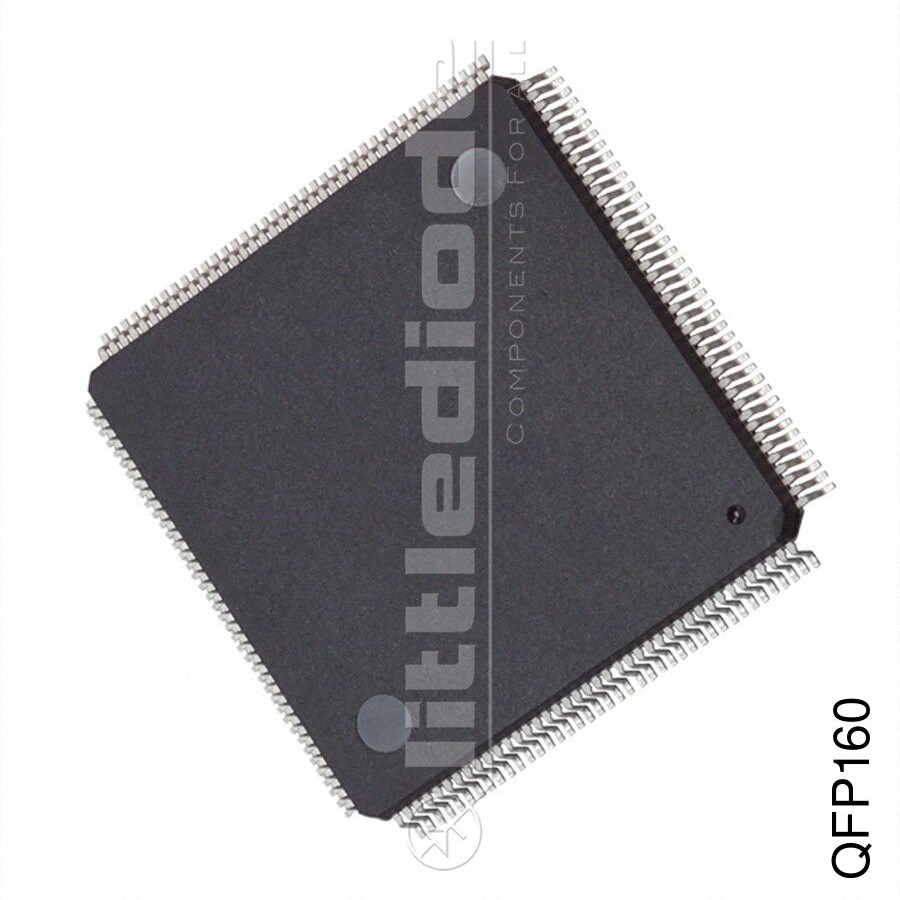

XC4005-6PQ160I Integrated Circuit - Case: QFP160 Make: XIL
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case QFP160
Manufacturer XIL
VIH Min. (TTL) 2.0
VIL Max. (TTL) 0.8
VOH Min. 2.4
VOL Max. 0.4
Nom. Pos. Supp 5
Quiescent Current Max (TTL) 10m
Tech. CMOS Integrated Circuit
Package Body Material Plastic
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 12m
@IOH (test) 4.0m
Logic Level Family TTL
Vsup (+) Maximum (V) 7.0
Digital Input V Max (V) 7.0
Gate Capacity 5000
Configurable Logic Blocks 196
Number of User I/Os 112
Program Data (Bits) 94960
Pinout Equivalence Number 160-6
JEDEC Std 30 Outline Code S-PQCC-J
Surface Mounted Yes/No YES
SKU 1156184
