ZTX313
View detailed images (4)

ZTX313

SKU: ZTX313

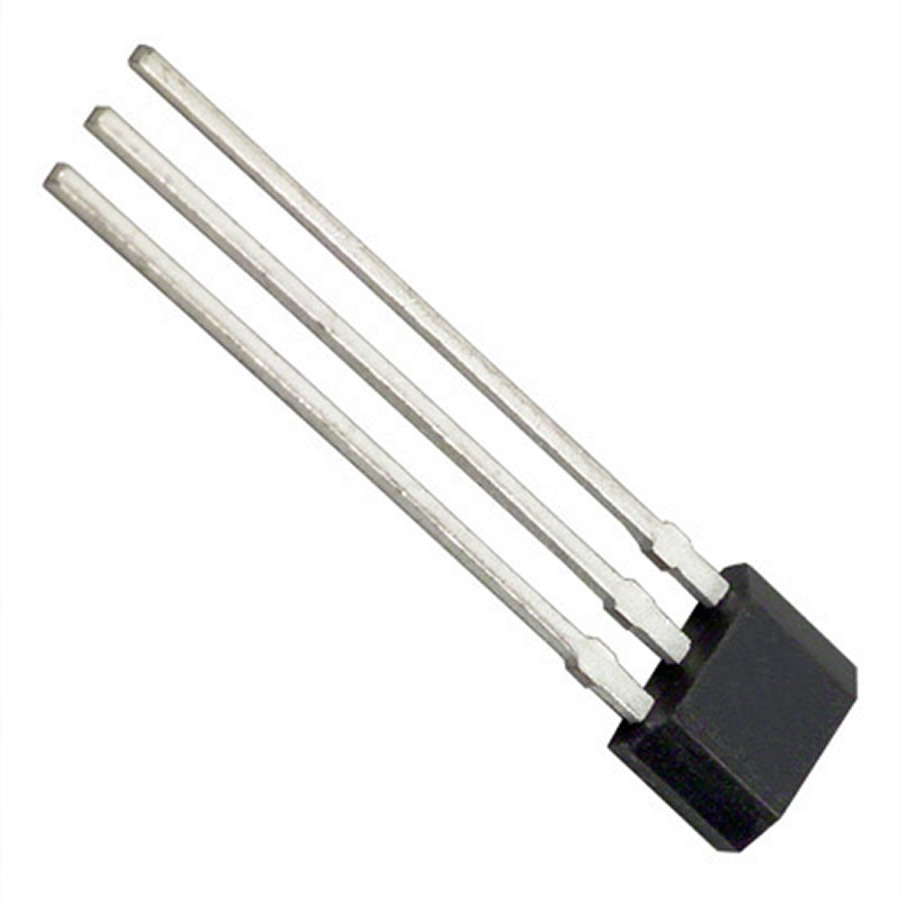

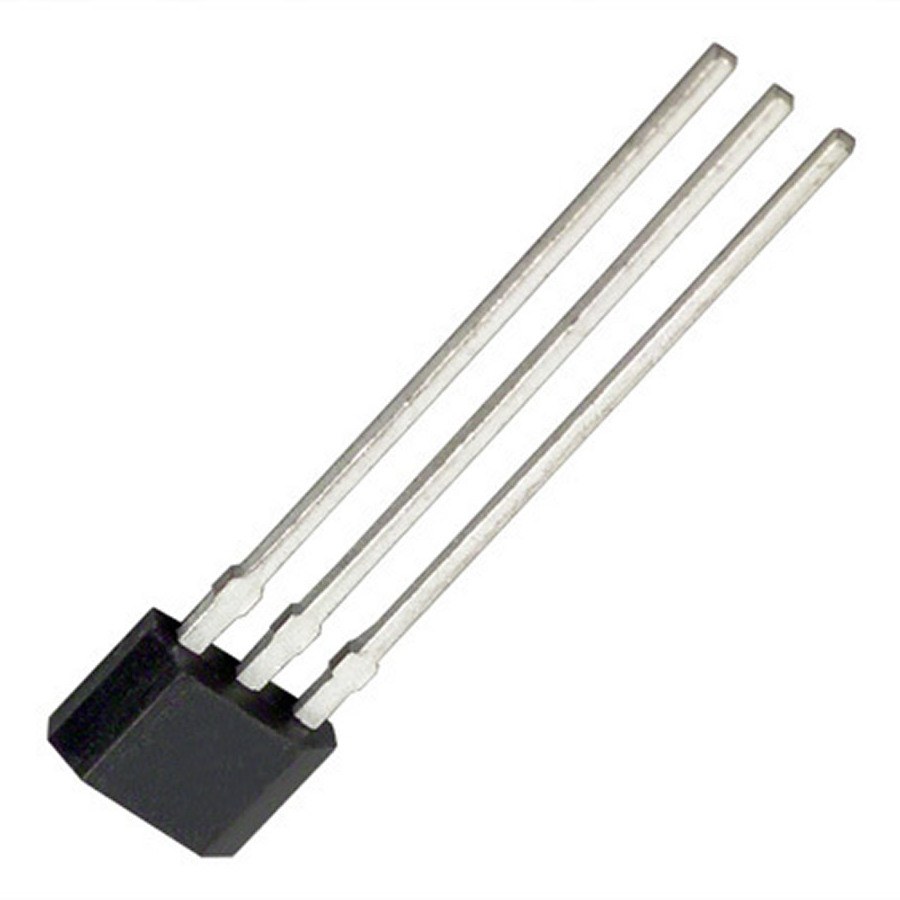

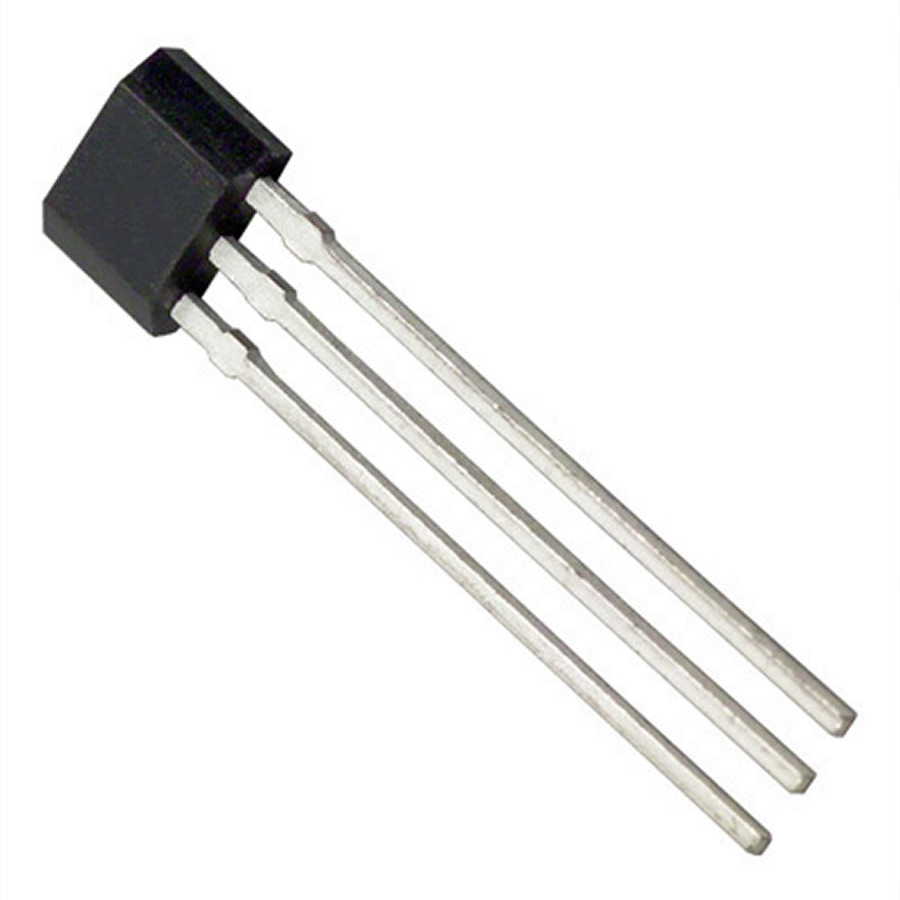

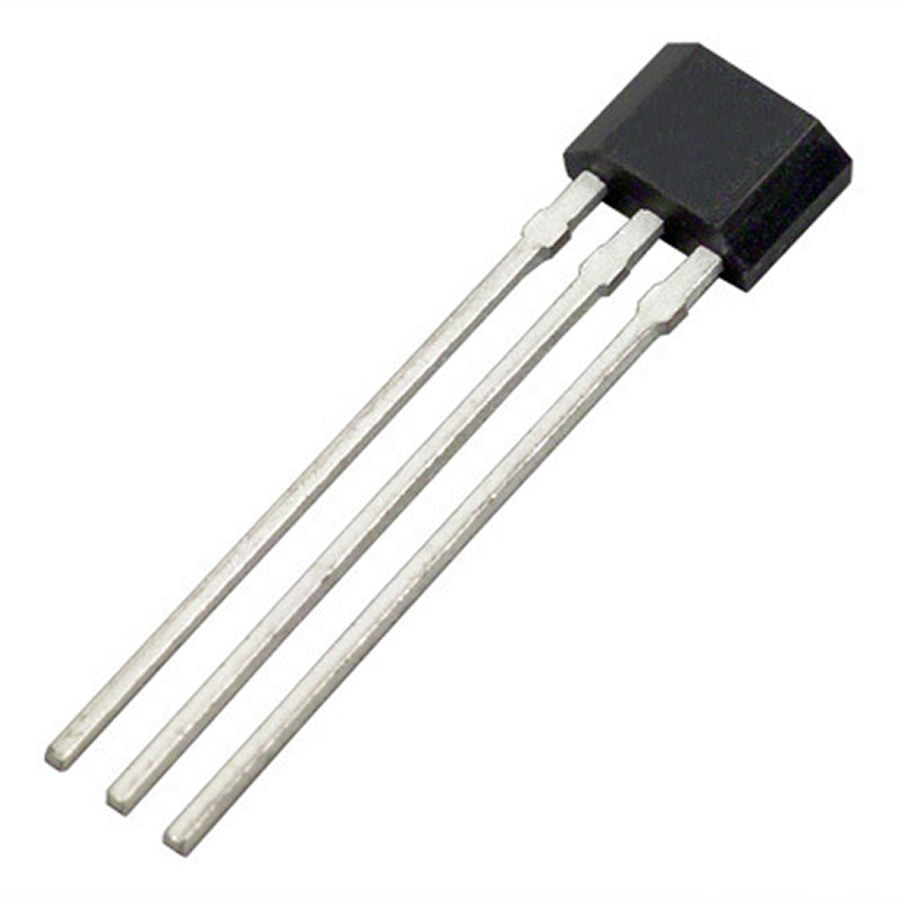

ZTX313 Transistor Silicon NPN - CASE: TO92S MAKE: Zetex
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 7 pieces in 1-2 Days
  • More pieces shipped in 14 days
Product specifications
Type Transistor Silicon NPN
Manufacturer Zetex
Case TO92S
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 300m
C(ob) (F) 4.0p
t(on) Delay (S) 12n
Derate (Amb) (W/°C) 3.0m
hfe 40
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 200n
Polarity NPN
t(stor) Max. (S) 18n+
Trans. Freq (Hz) Min. 500M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 390047
