ZTX704
View detailed images (4)

ZTX704

SKU: ZTX704

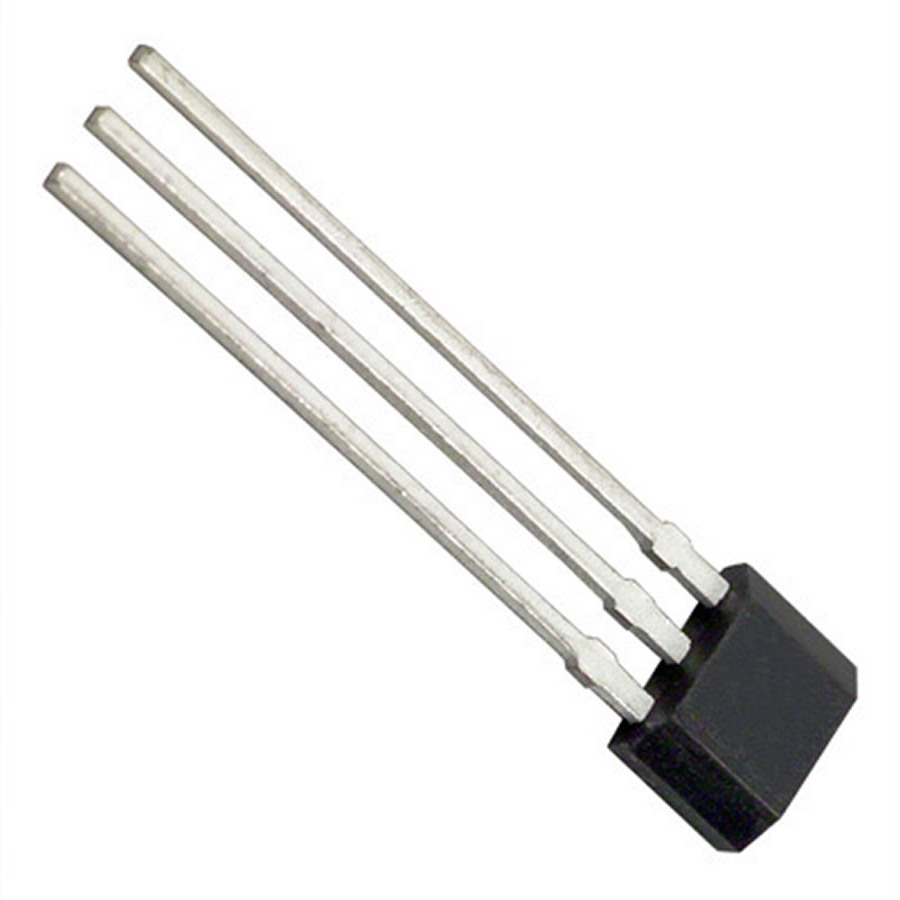

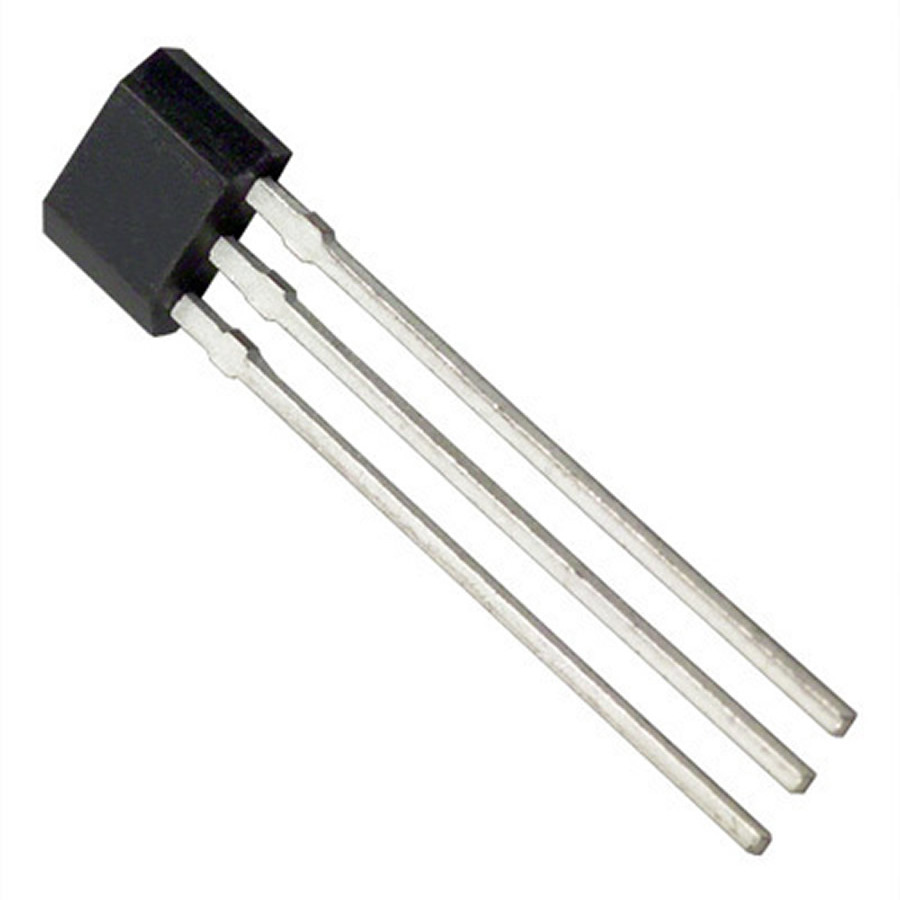

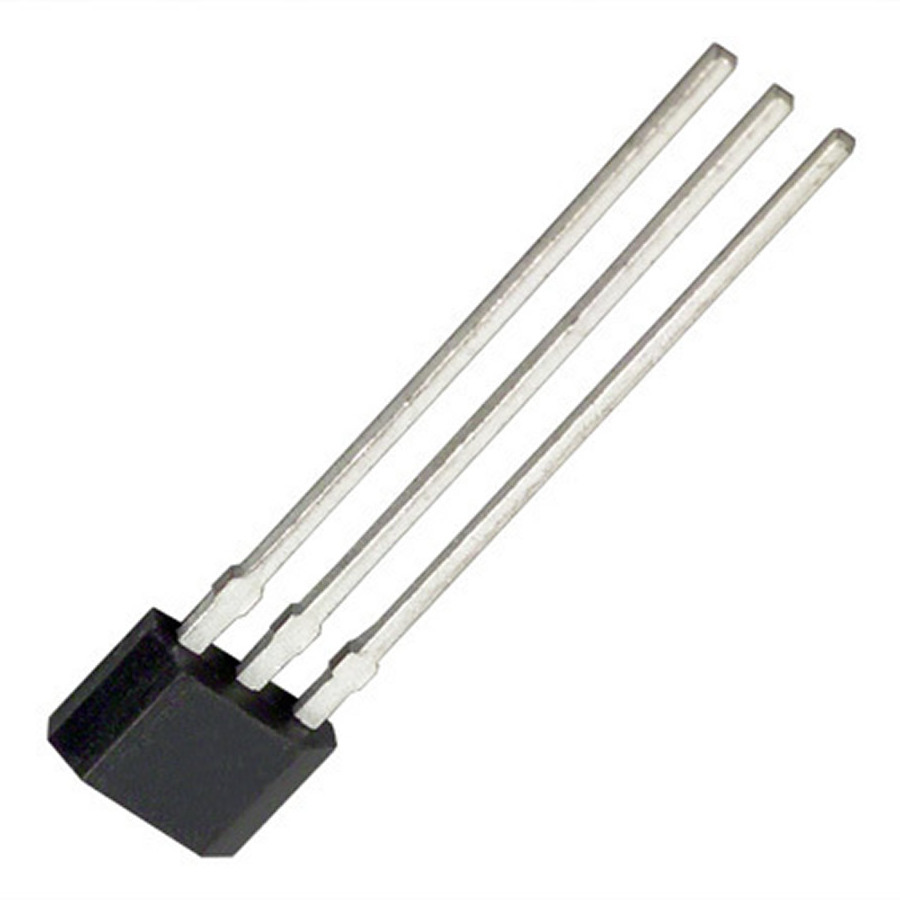

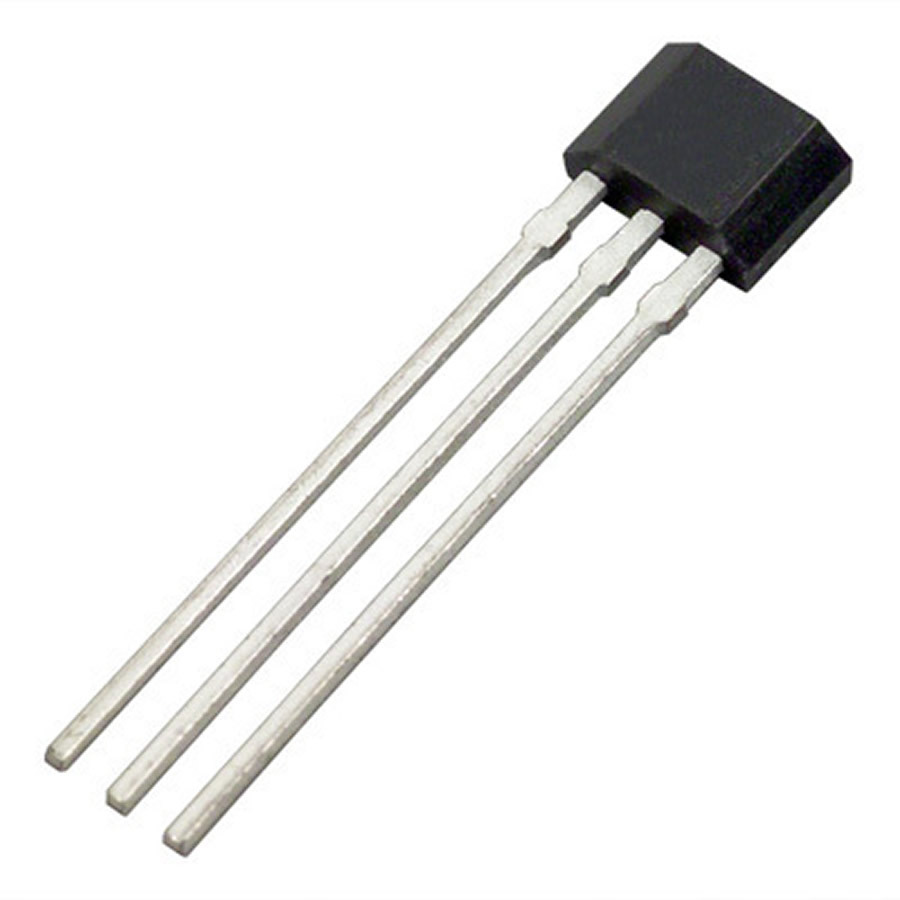

ZTX704 Transistor Silicon PNP CASE: TO92S MAKE: Zetex
Product specifications
Type Transistor Silicon PNP
Case TO92S
Manufacturer Zetex
Vbr CEO 100
Max. PD (W) 2.5
t(f) Max. (S) 800n-+
Max. hFE 30k
Min hFE 3.0k
Ic Max. (A) 1.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity PNP
Tr Max. (s) 600n-
Trans. Freq (Hz) Min. 160M
@VCE (test) 5.0
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 15 pF
Transition Frequency (ft): 160 MHz
Forward Current Transfer Ratio (hFE), MIN 5000
SKU 458428
