2SA915
View detailed images (3)

2SA915

SKU: 2SA915

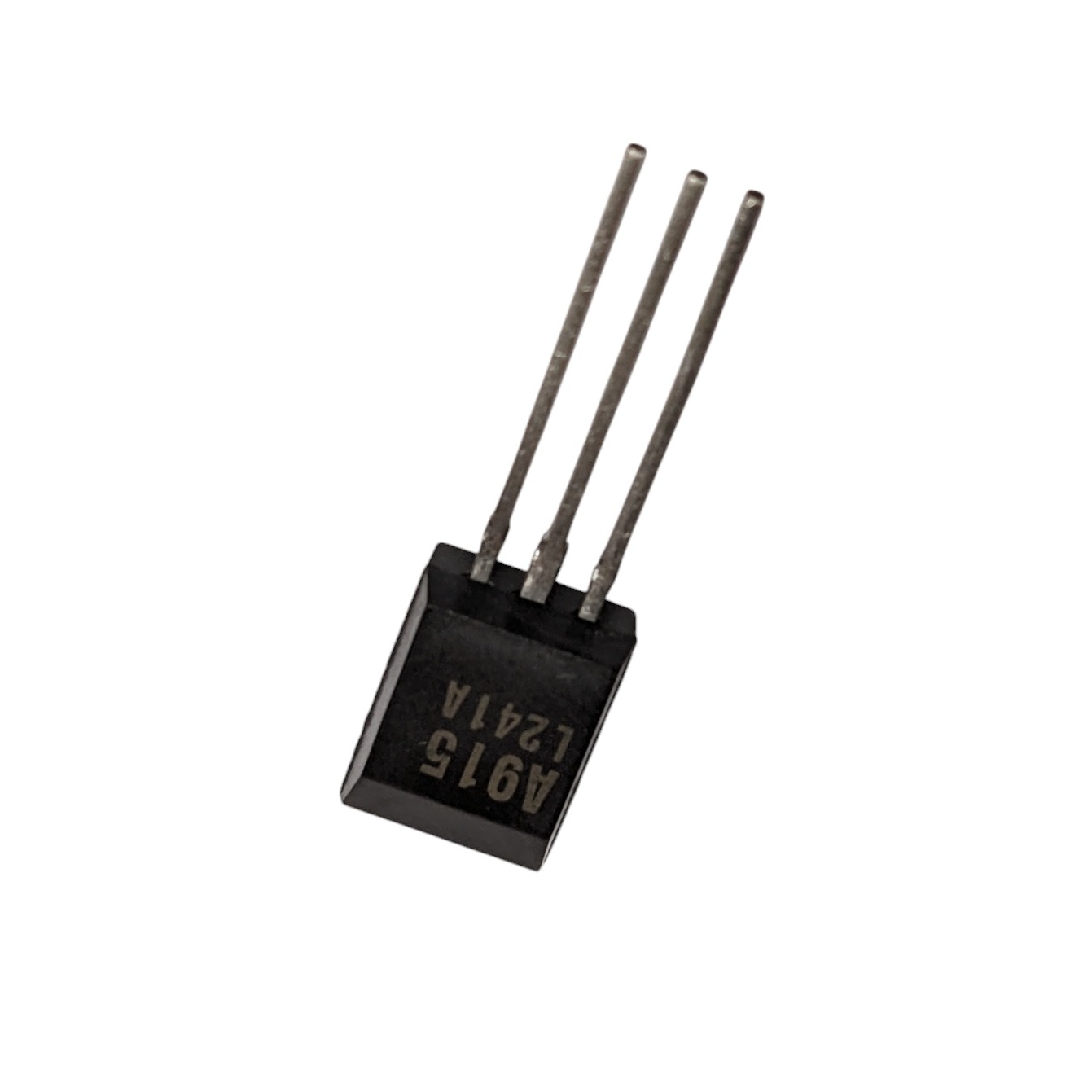

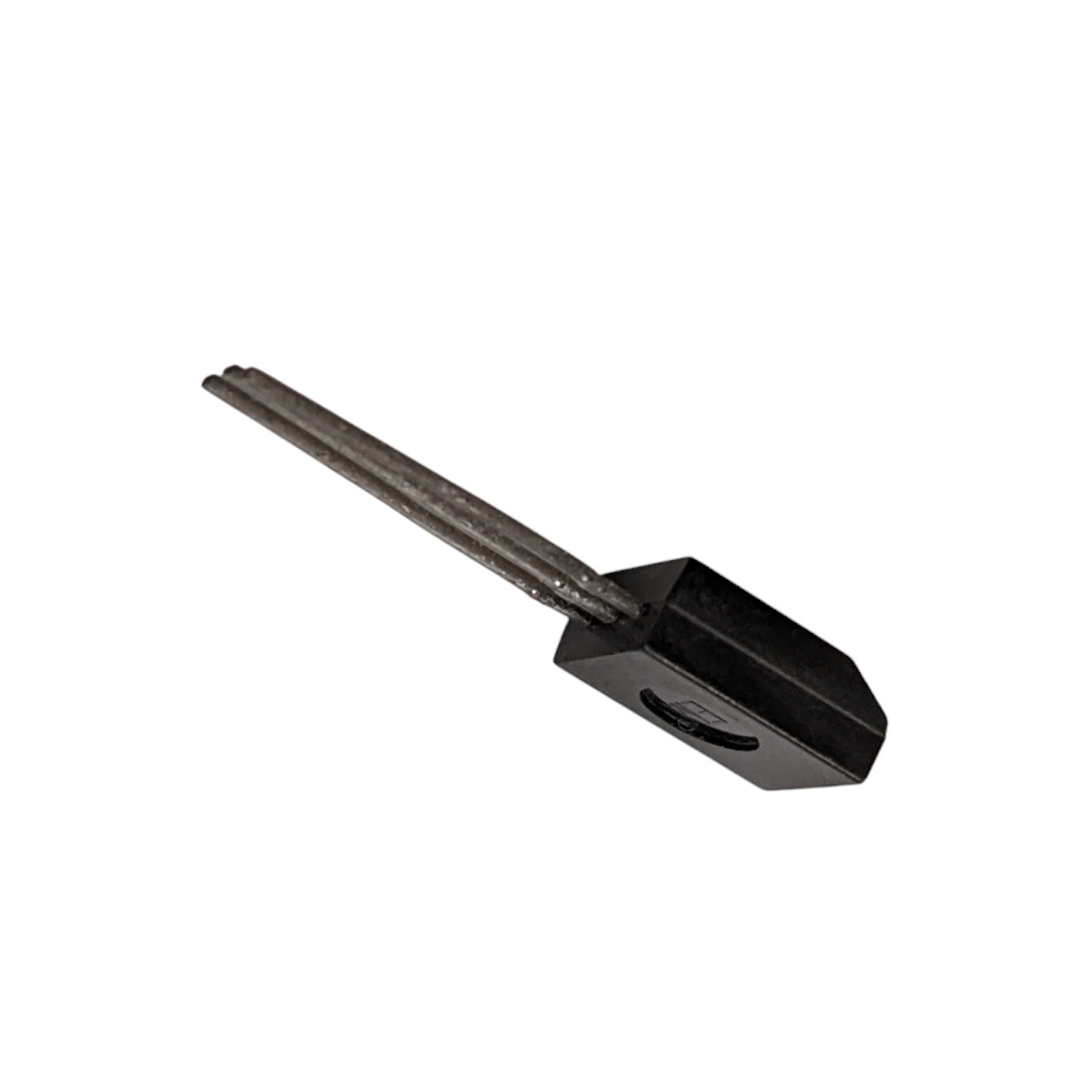

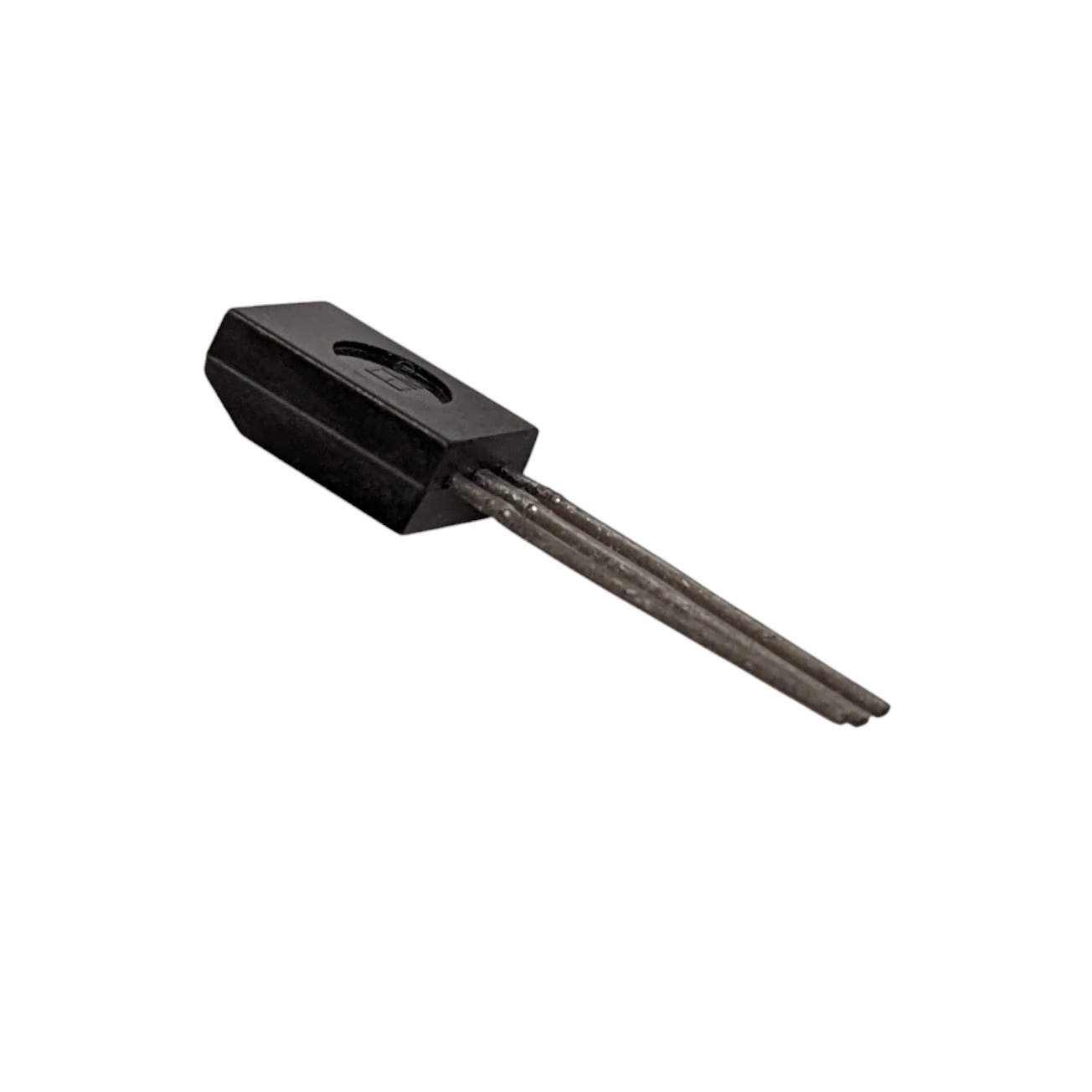

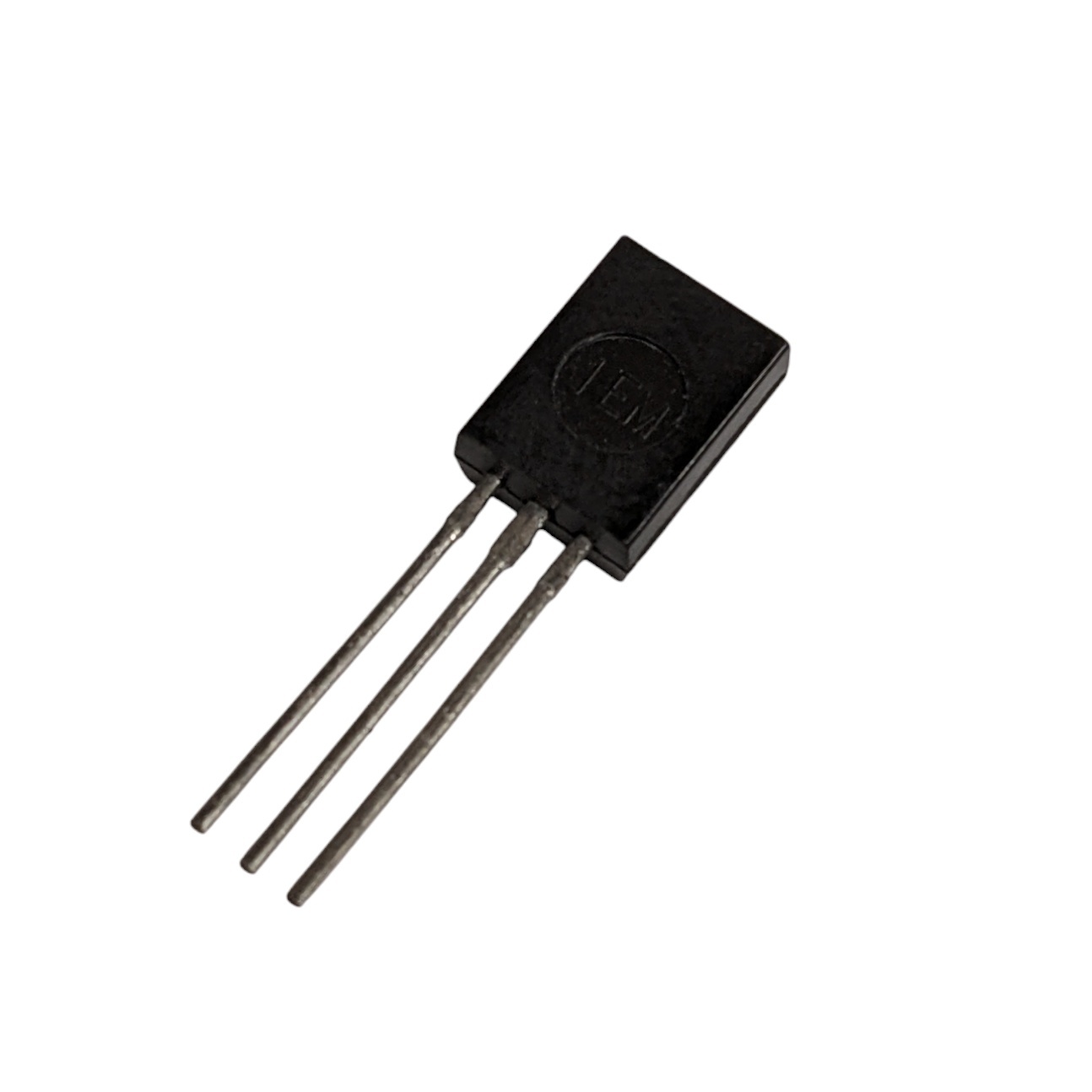

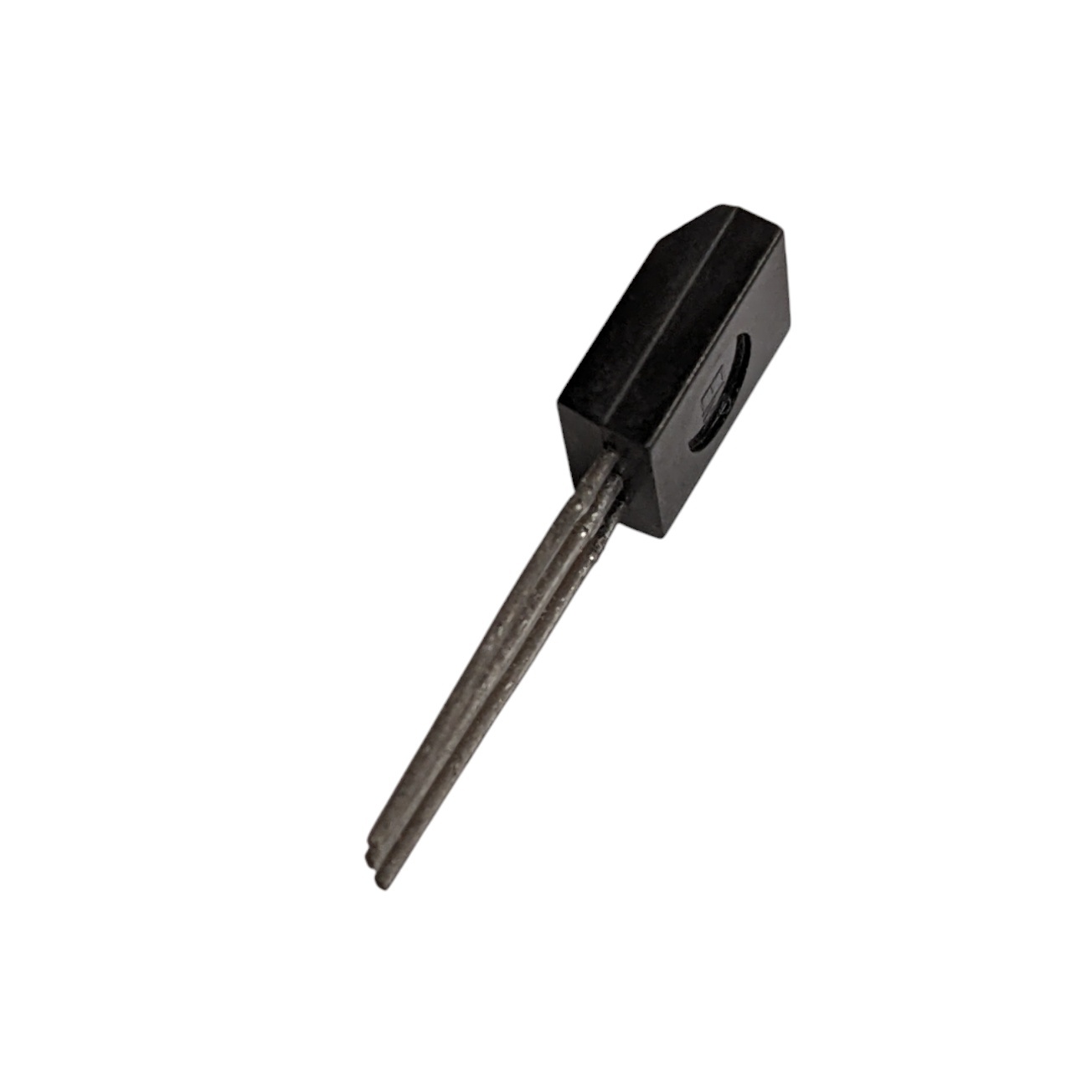

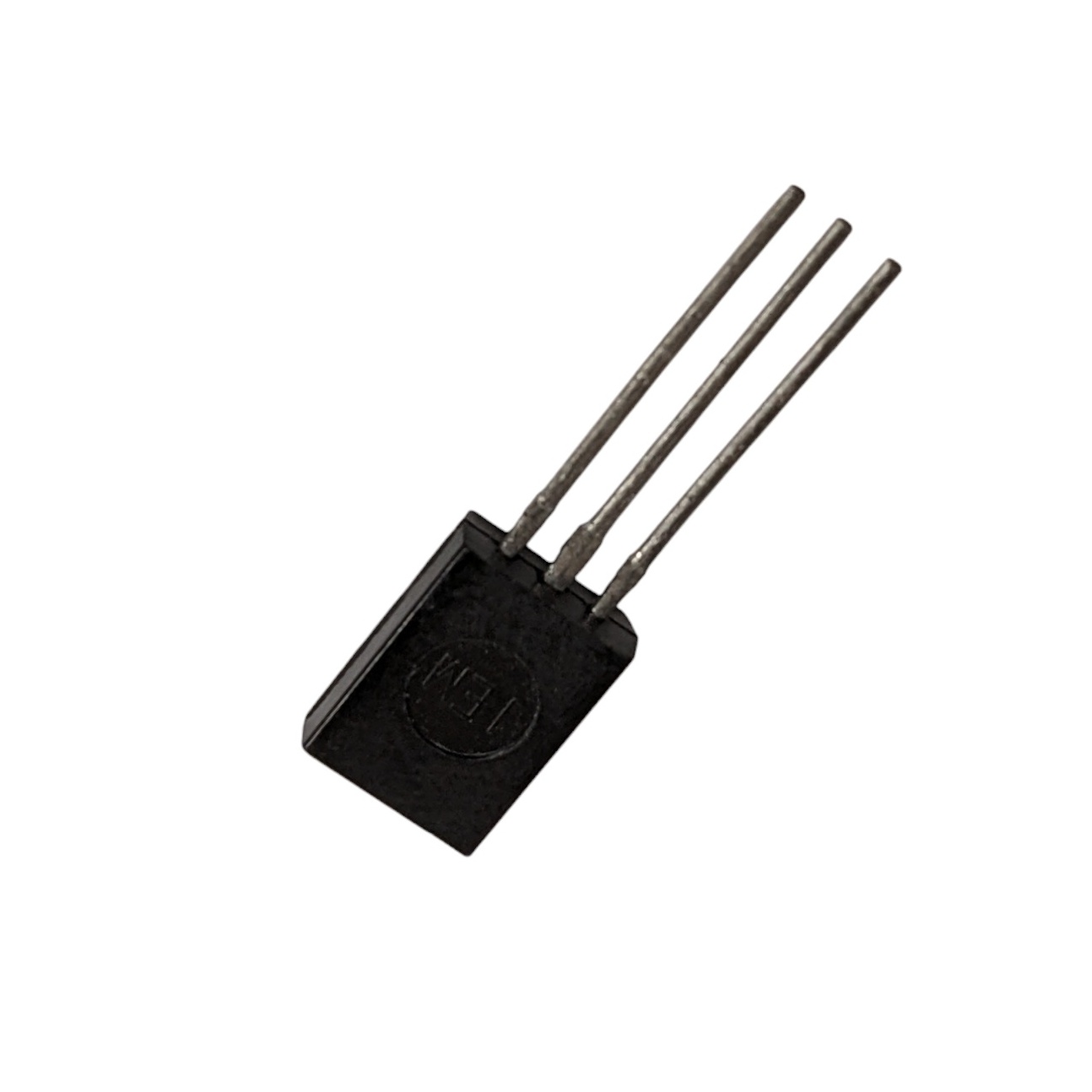

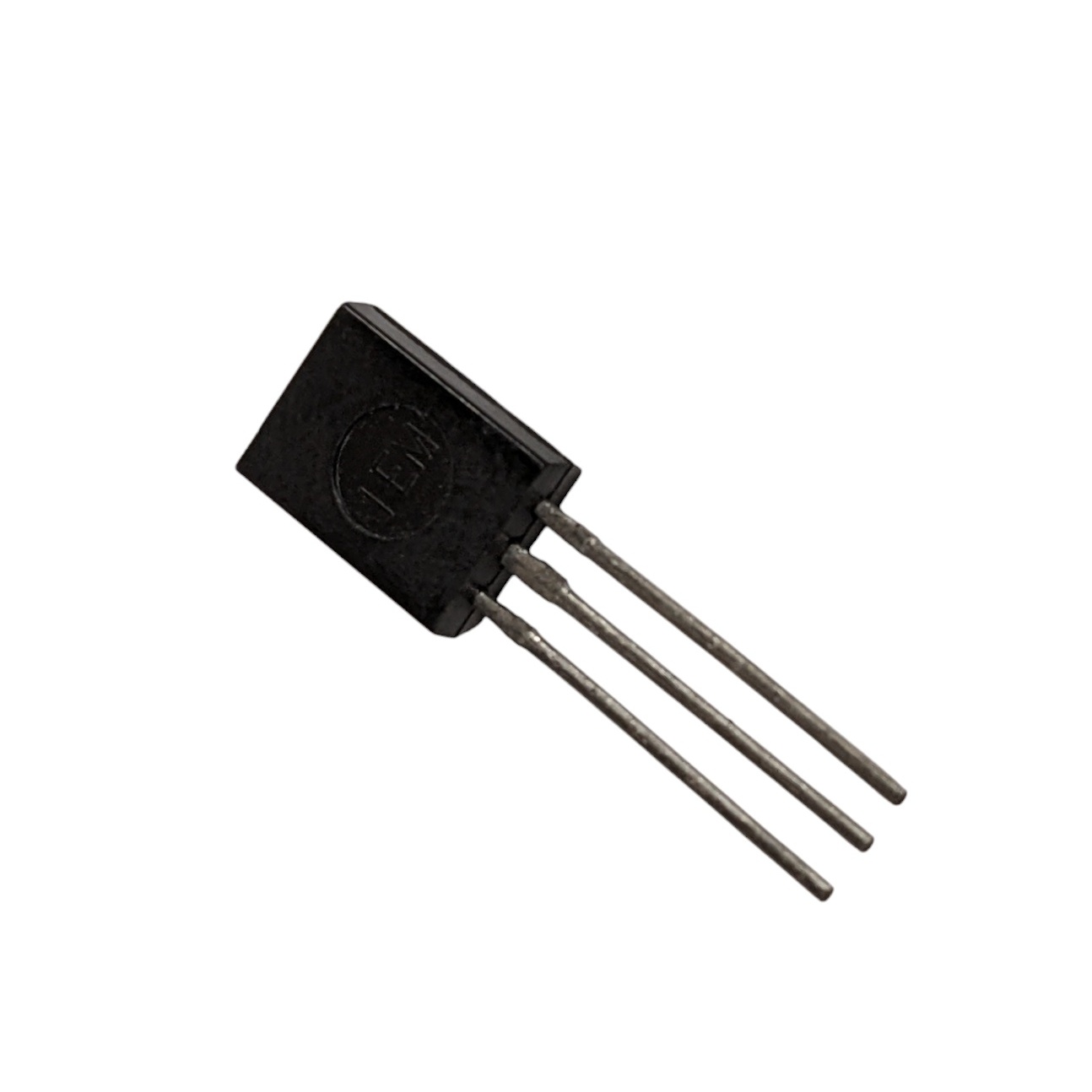

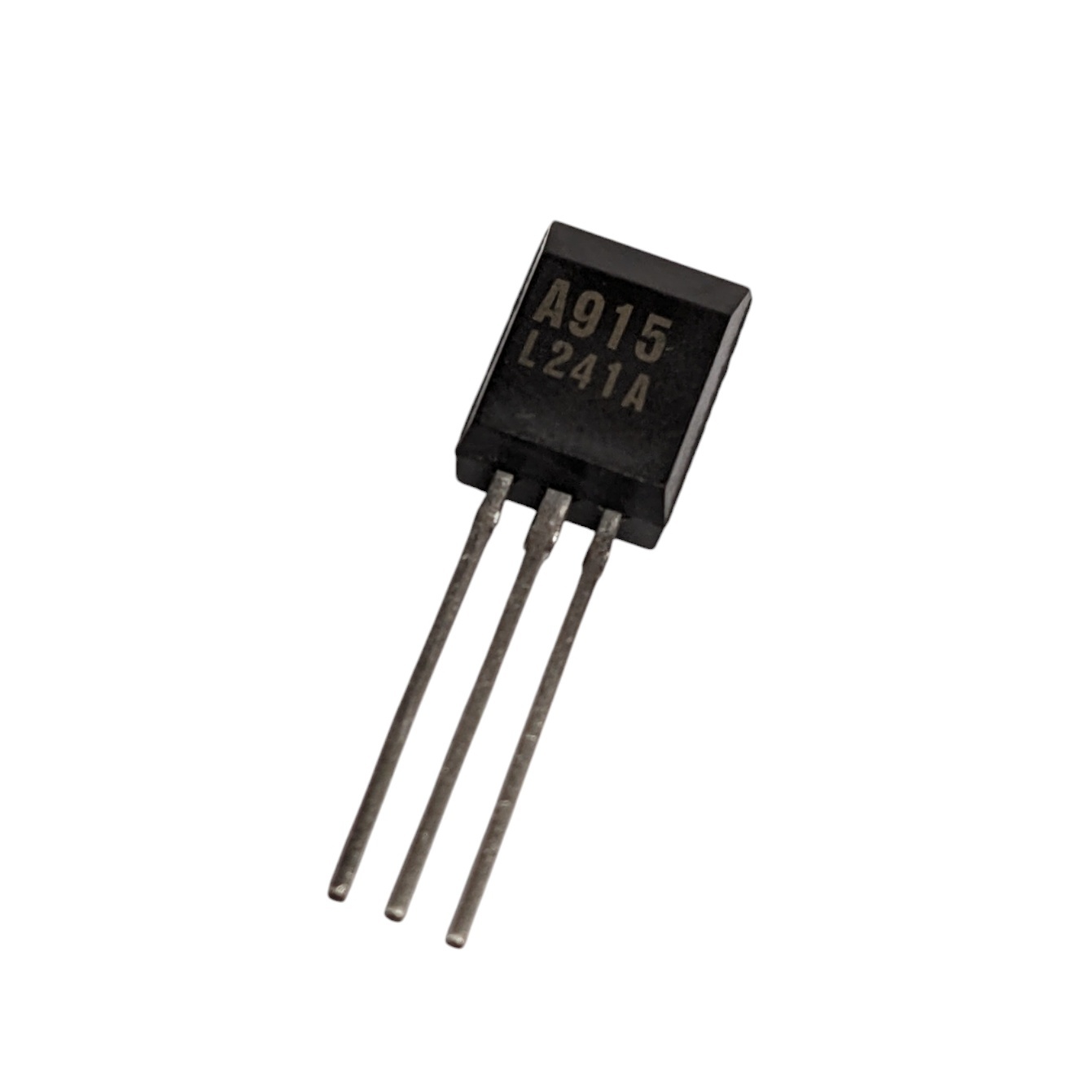

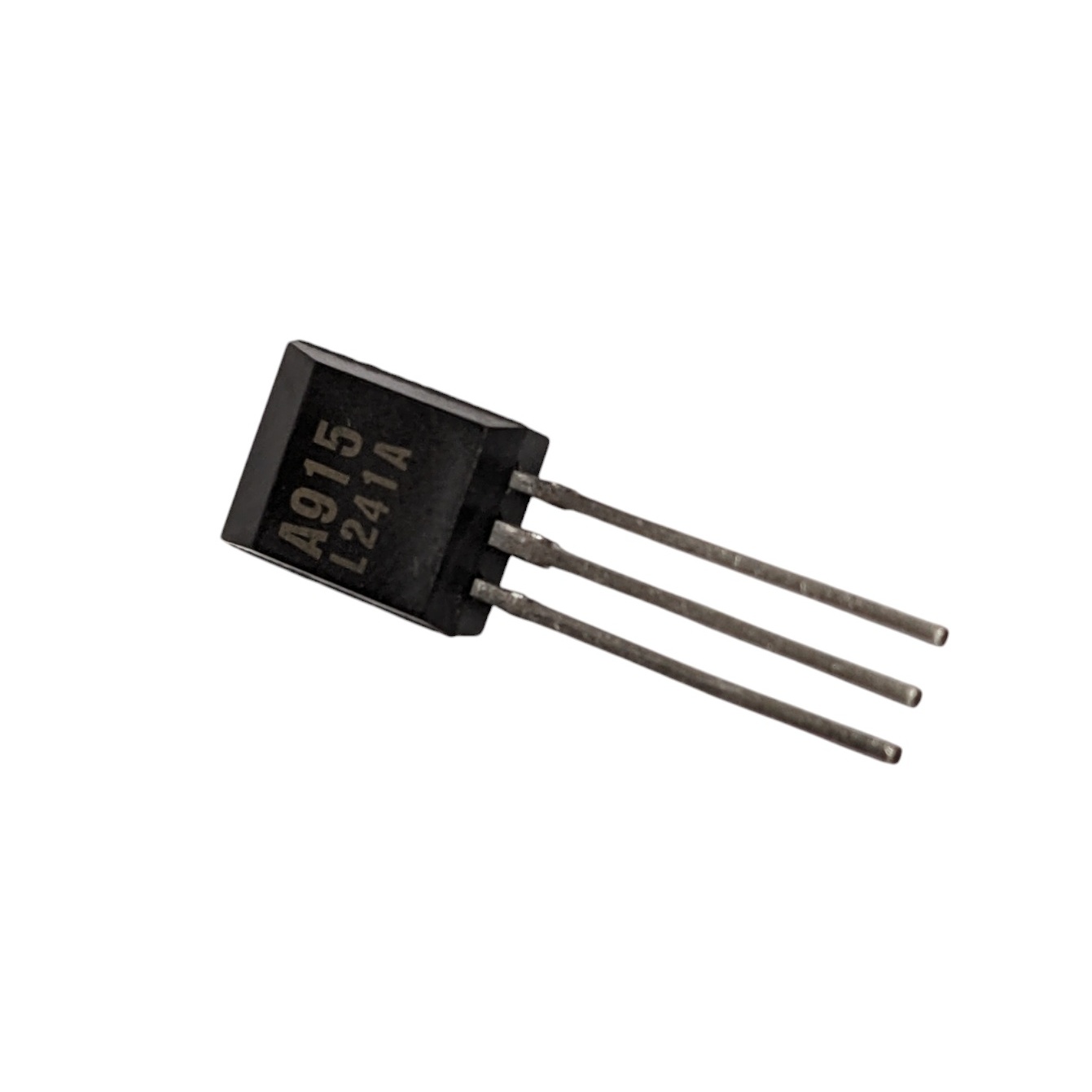

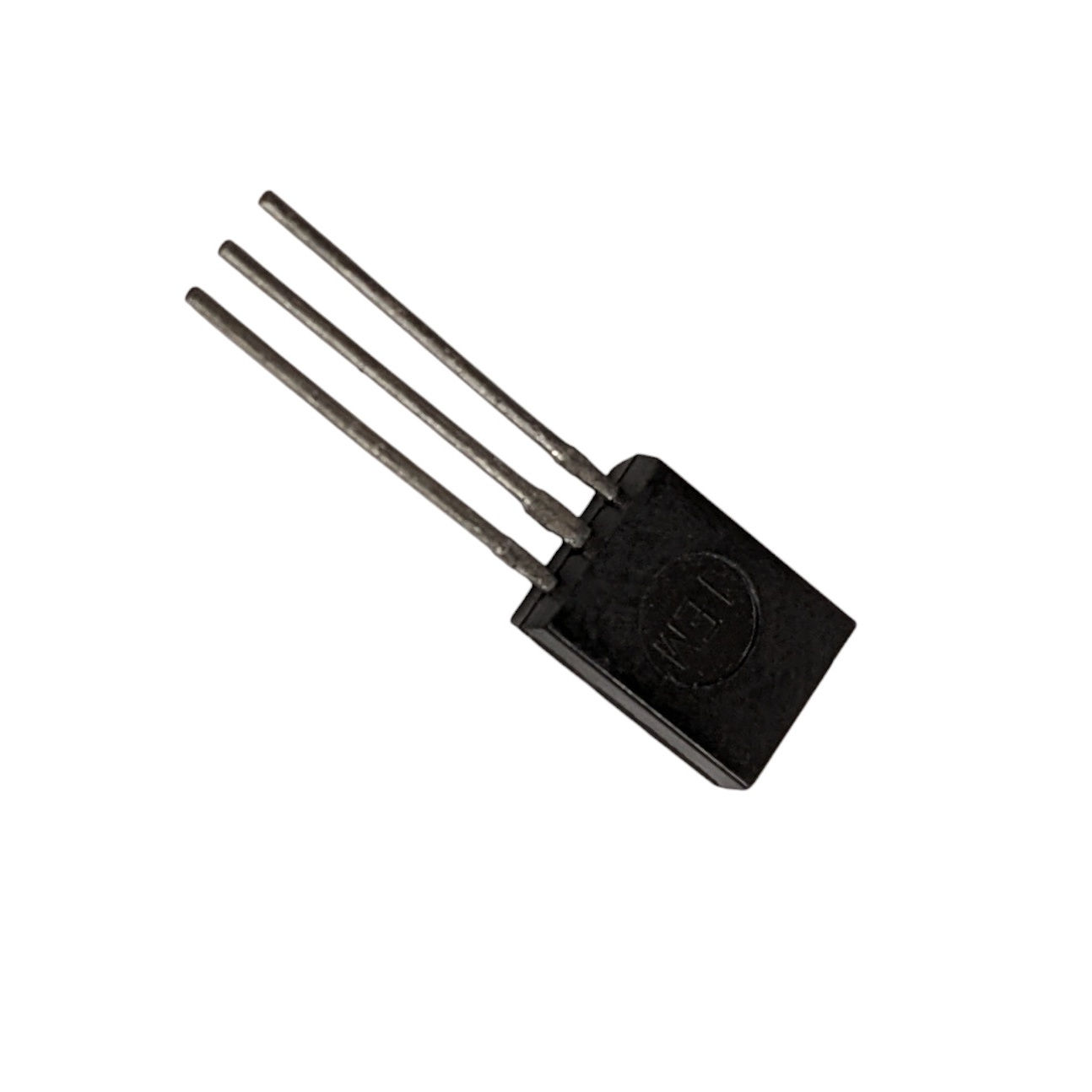

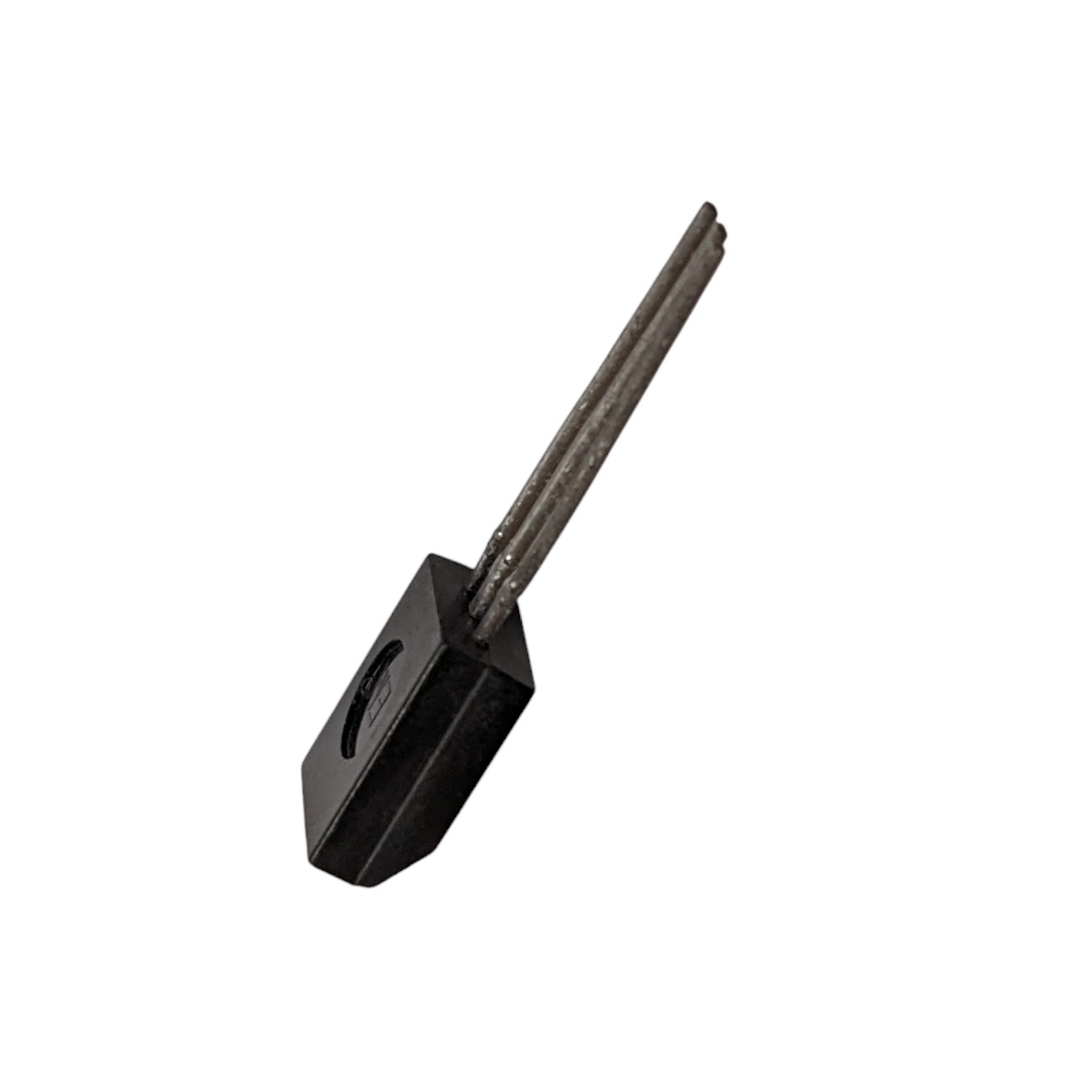

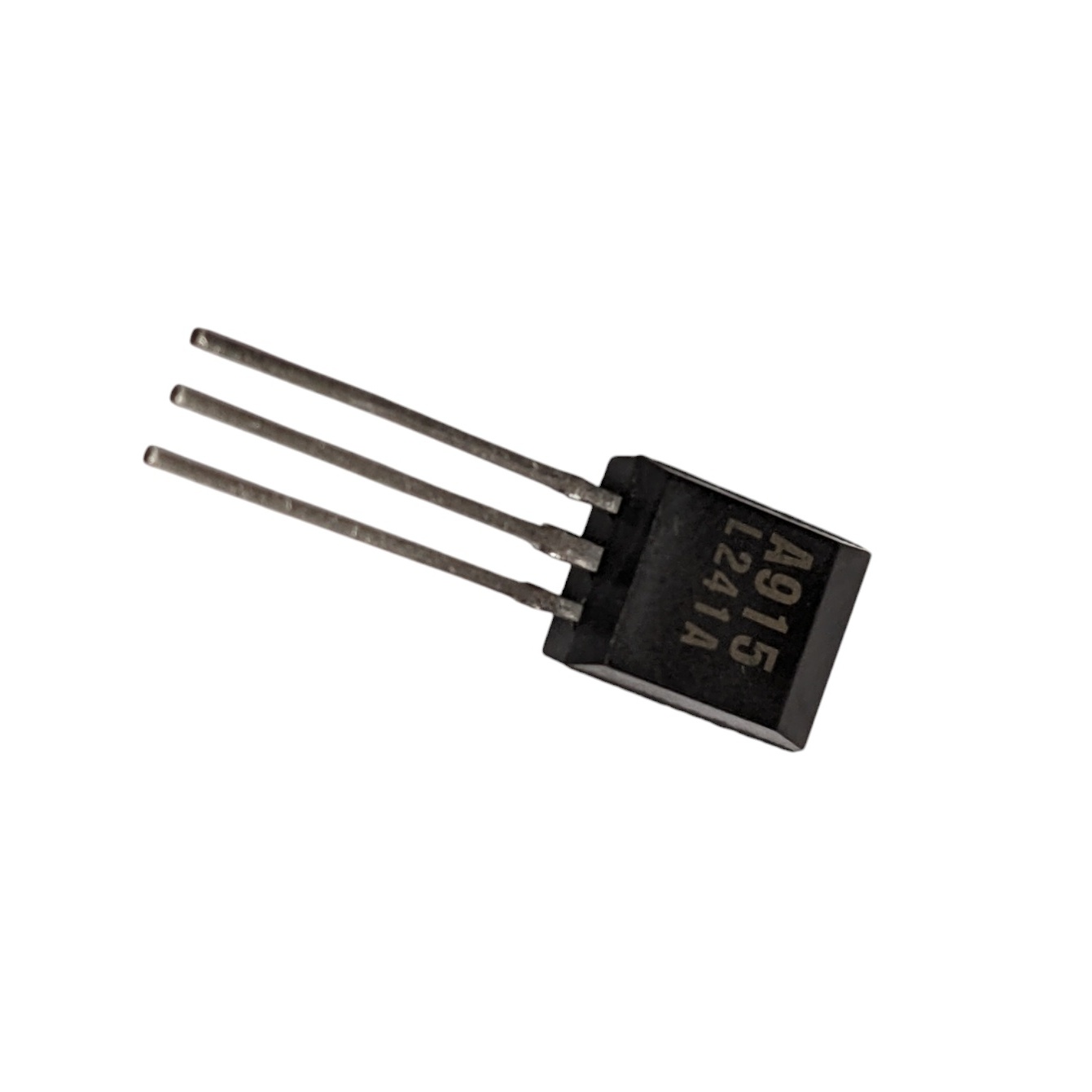

2SA915 Transistor Silicon PNP - CASE: TO126 MAKE: NEC
Price: £3.99
Quantity Price
2+ Items £2.00
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 19 pieces in 1-2 Days
  • More pieces in 8-10 days
Product specifications
Type Transistor Silicon PNP
Manufacturer NEC
Case TO126
Vbr CBO 120
Vbr CEO 120
Max. PD (W) 800m
C(ob) (F) 2.5p
Derate (Amb) (W/°C) 6.4m
hfe 50
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 2.5 pF
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN 65
SKU 85347
