2SA1307
View detailed images (12)

2SA1307

SKU: 2SA1307

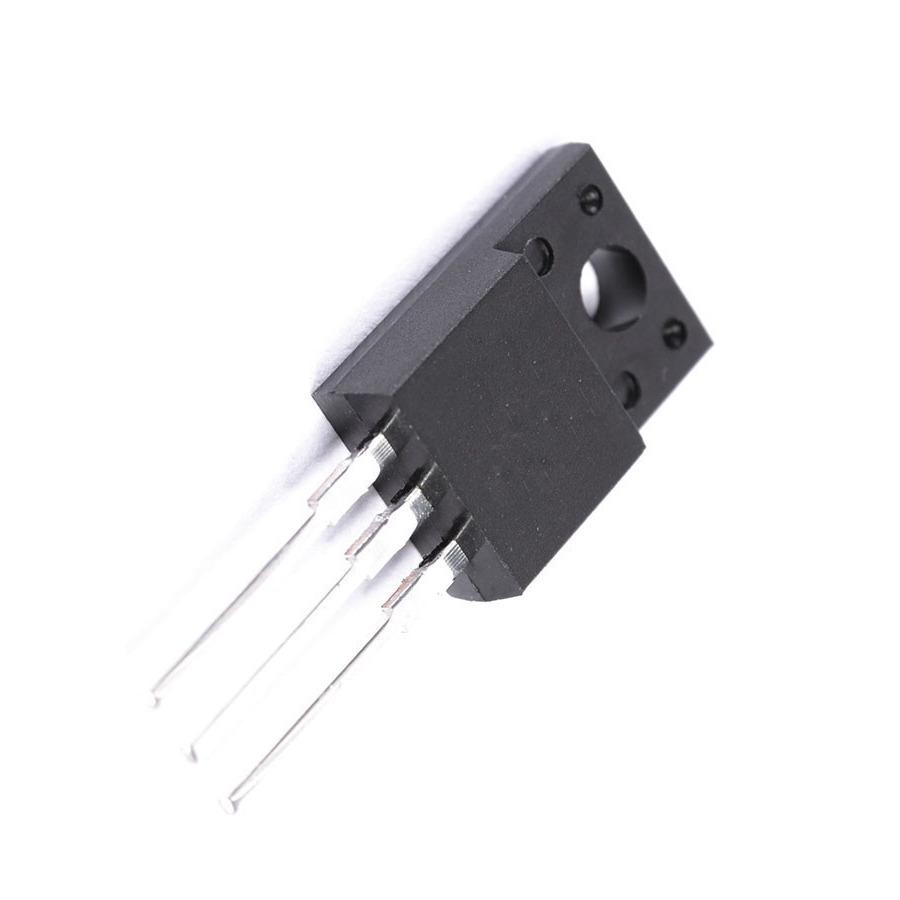

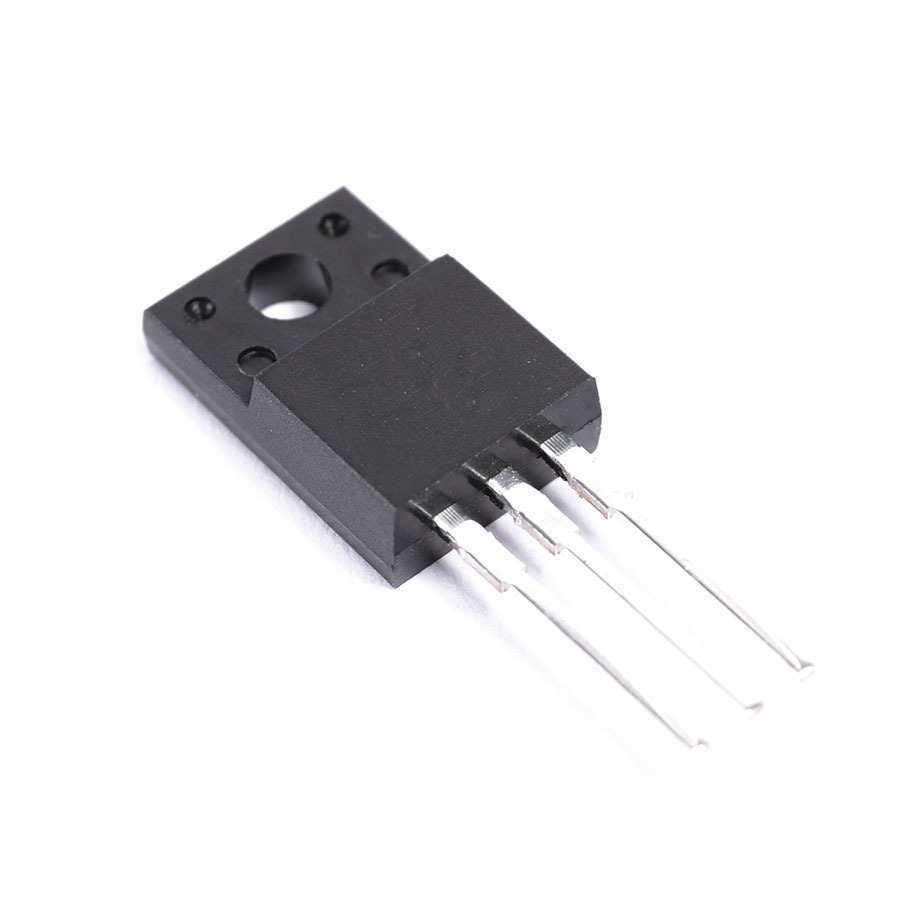

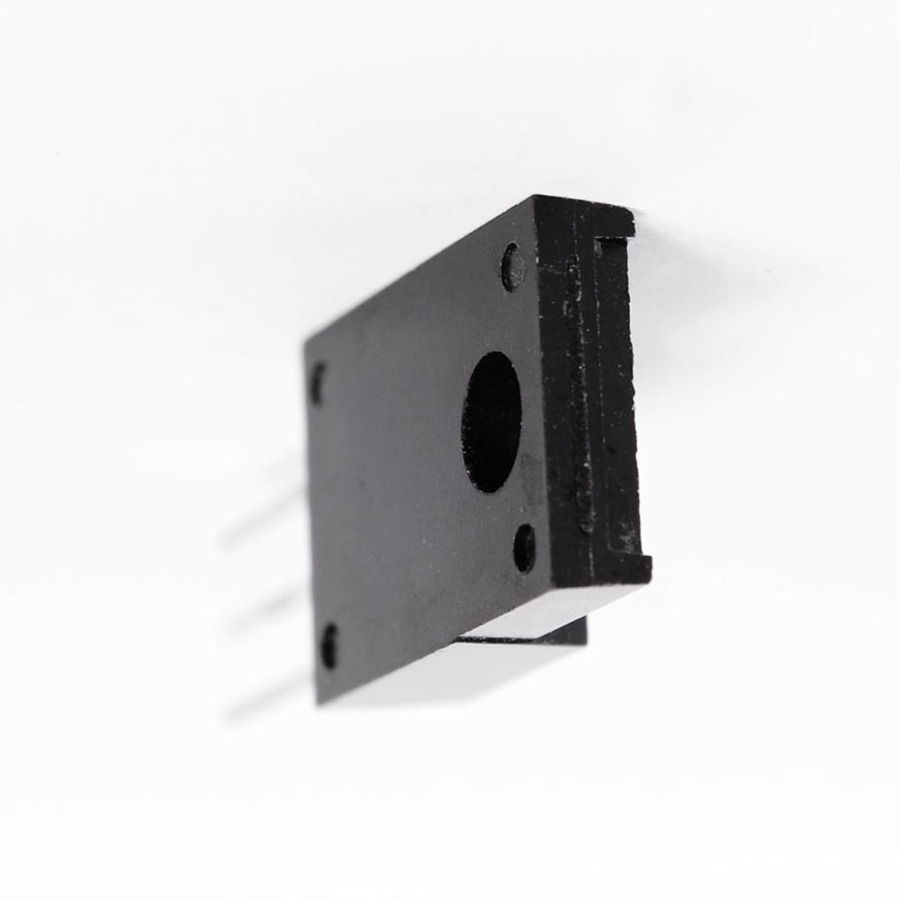

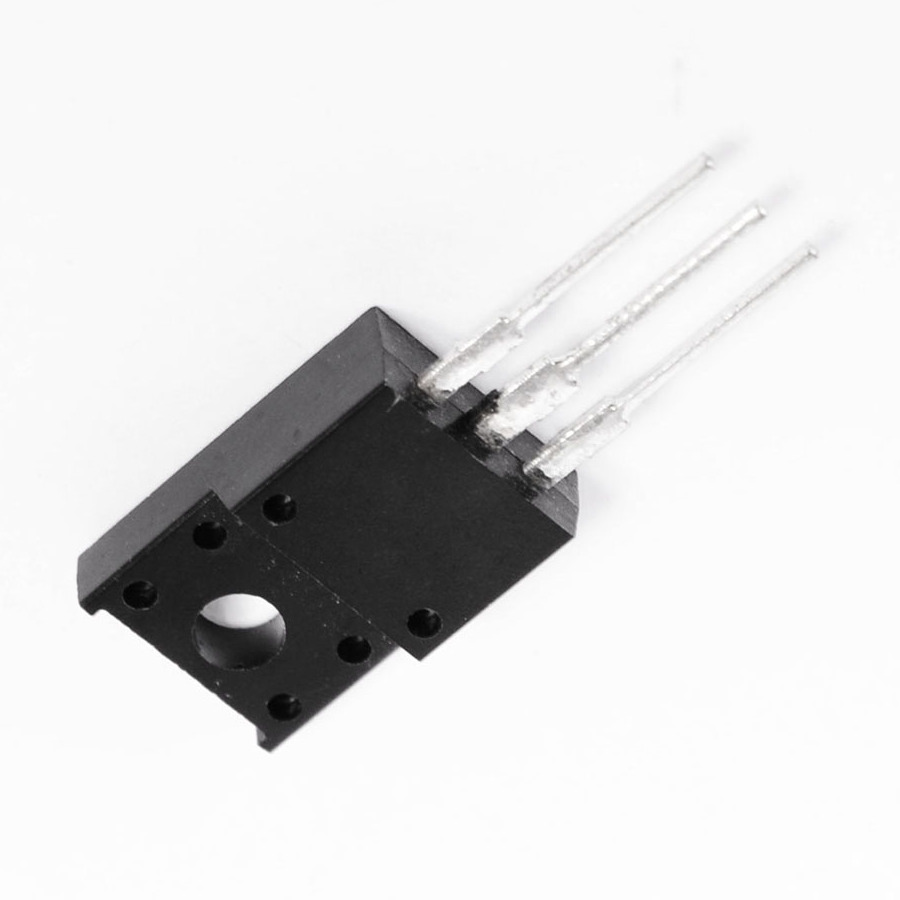

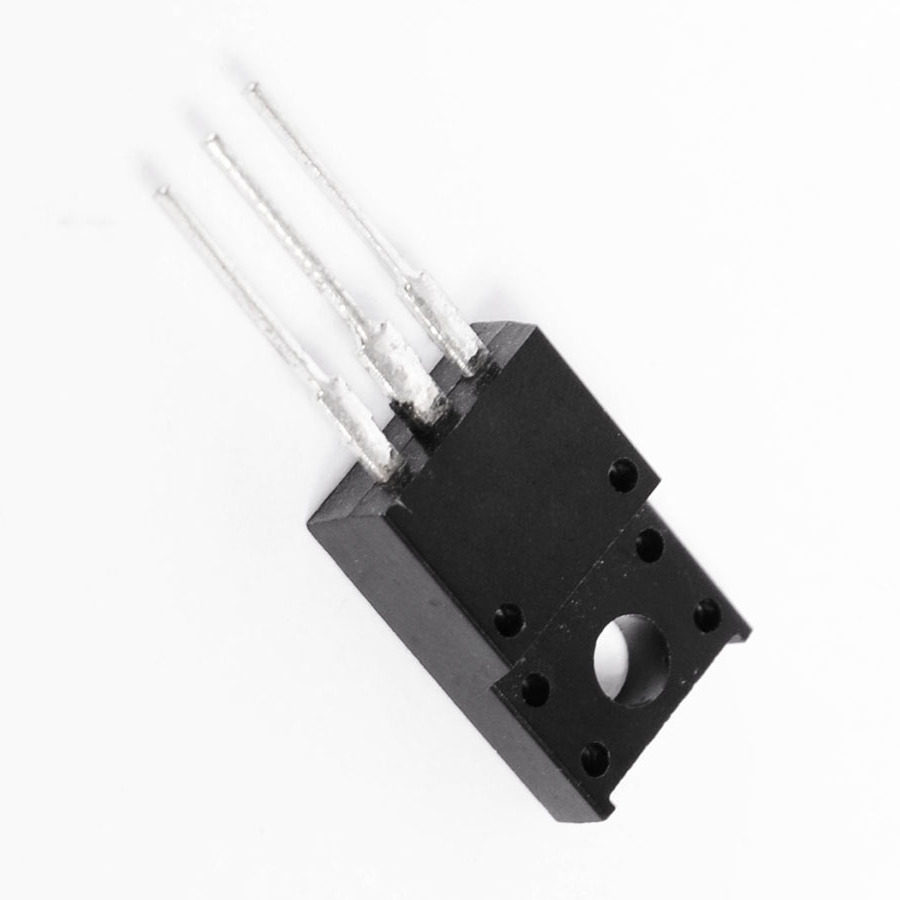

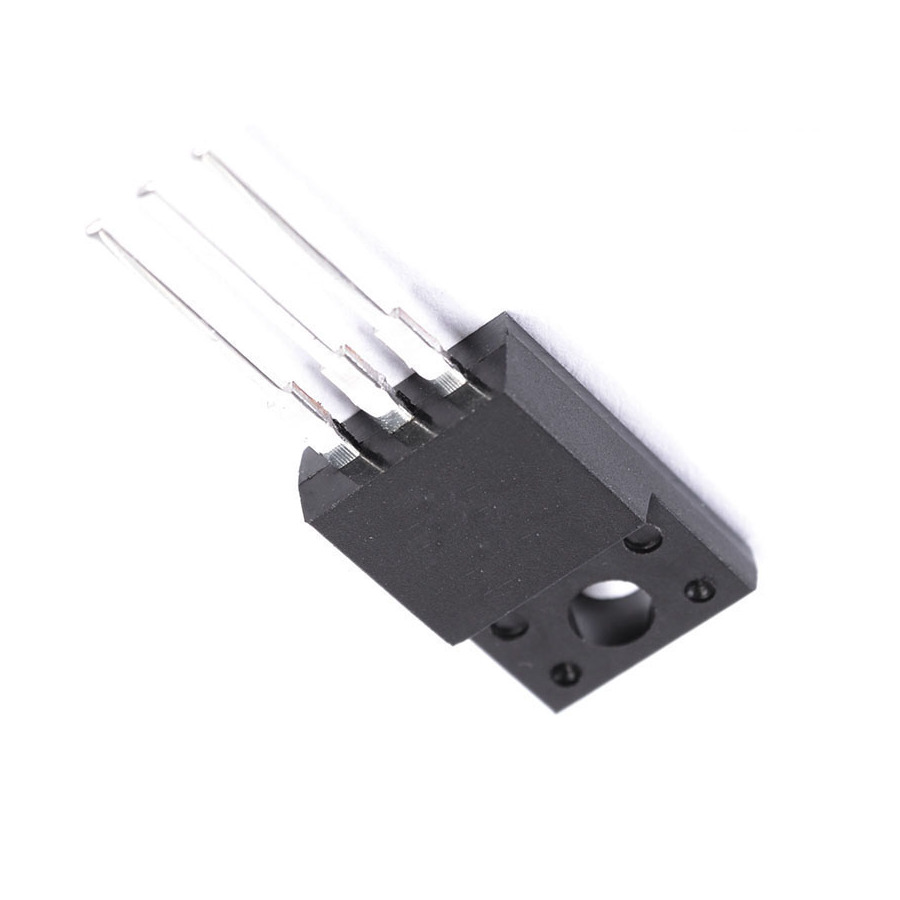

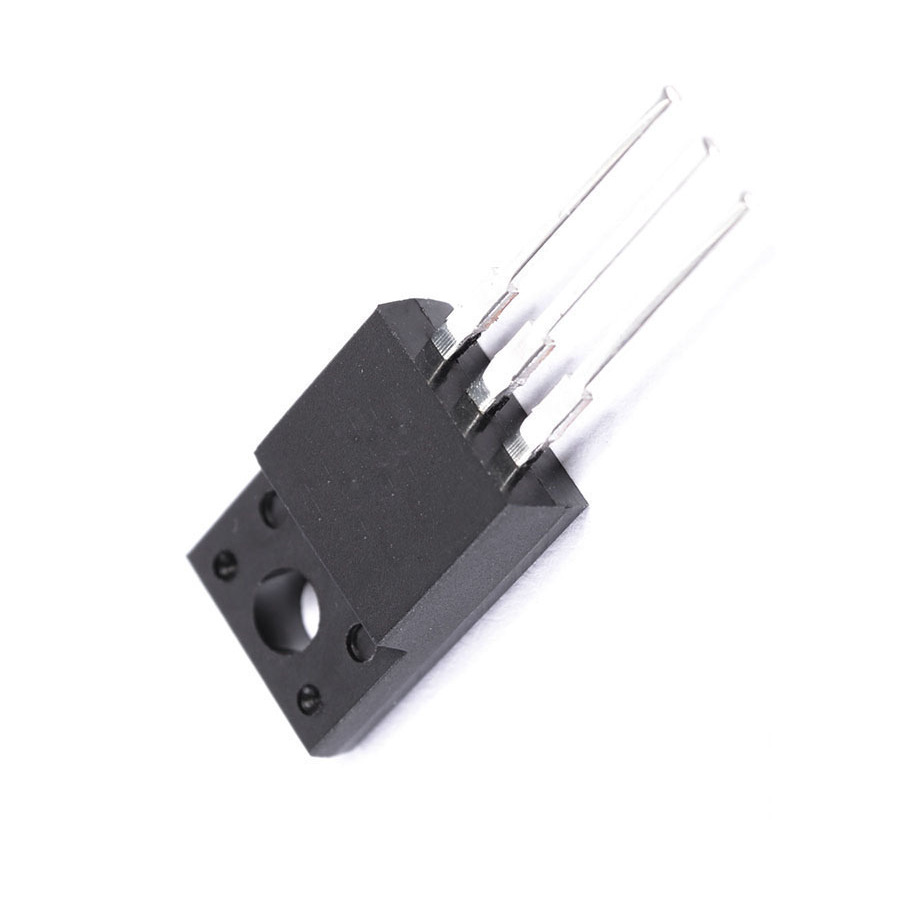

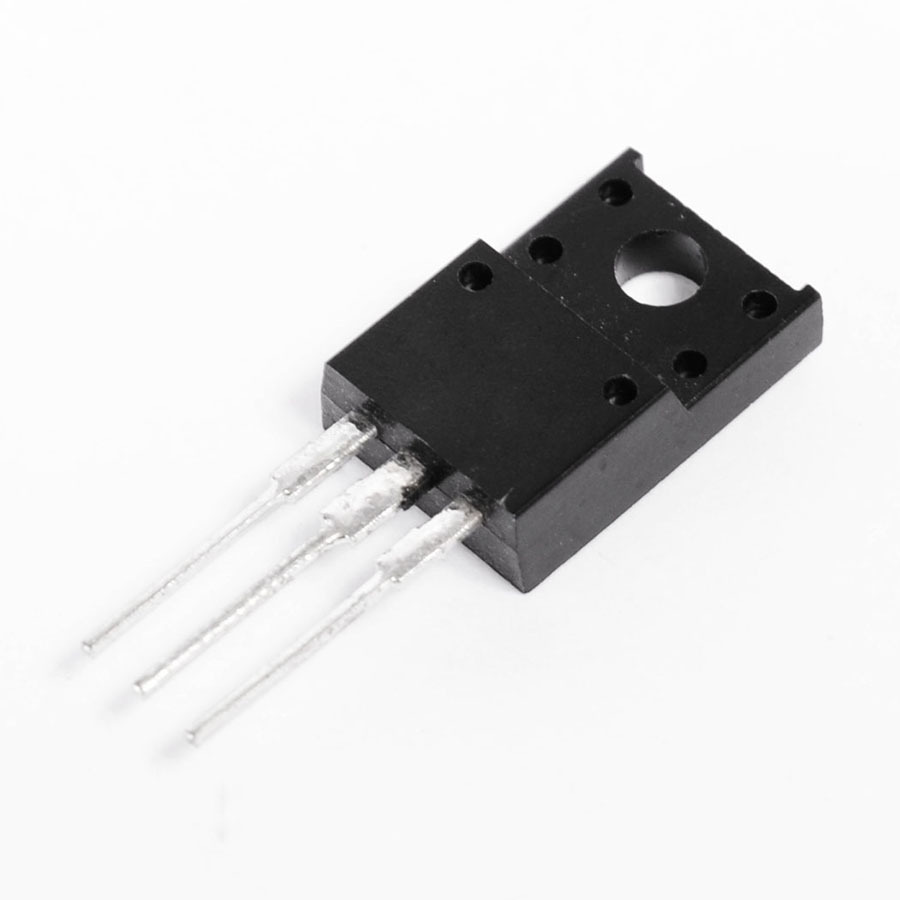

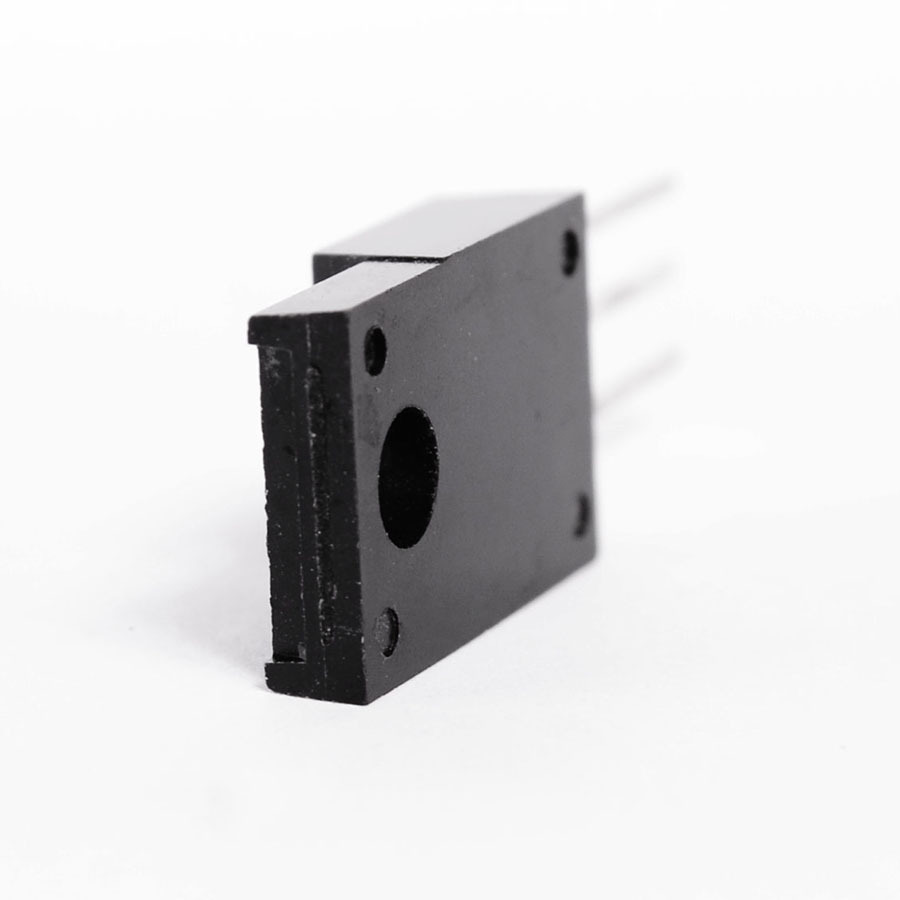

2SA1307 Transistor Silicon PNP CASE: SOT186 MAKE: Toshiba
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 26 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SA1307 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT186
Manufacturer Toshiba
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 20
Derate (Amb) (W/°C) 160m
Max. hFE 240
Min hFE 70
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Tr Max. (s) 100n
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 80656
