2SA968Y
View detailed images (9)

2SA968Y

SKU: 2SA968Y

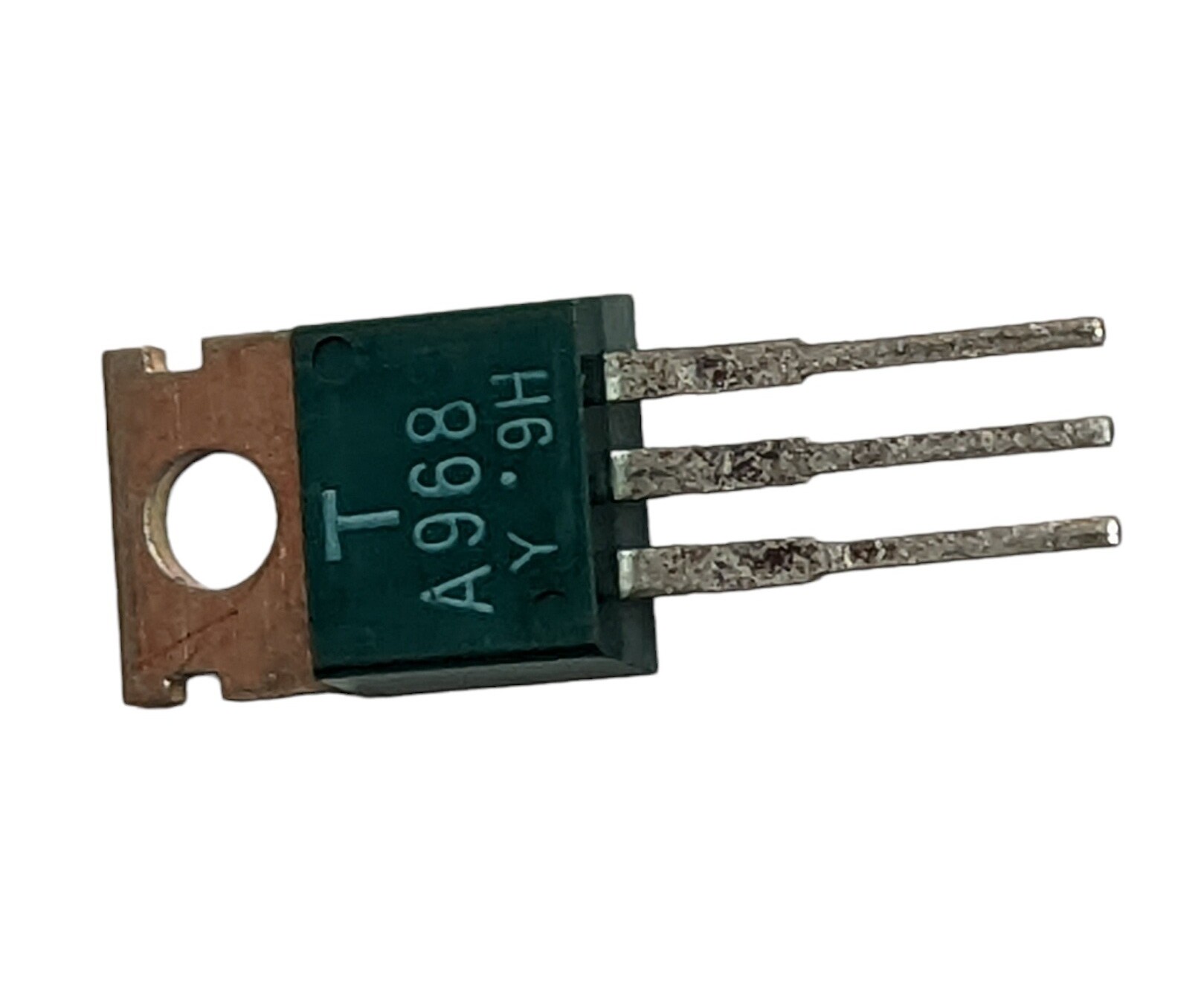

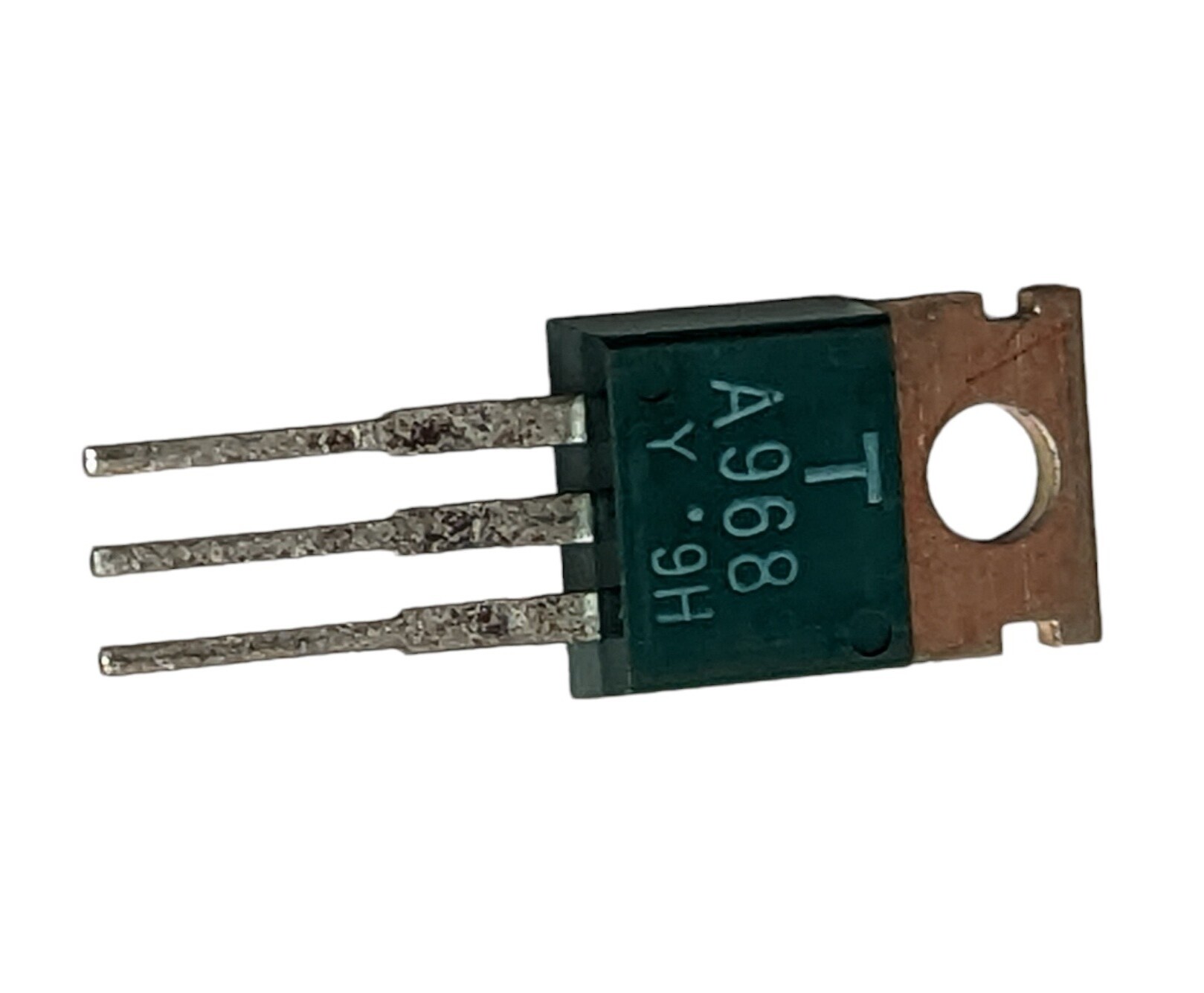

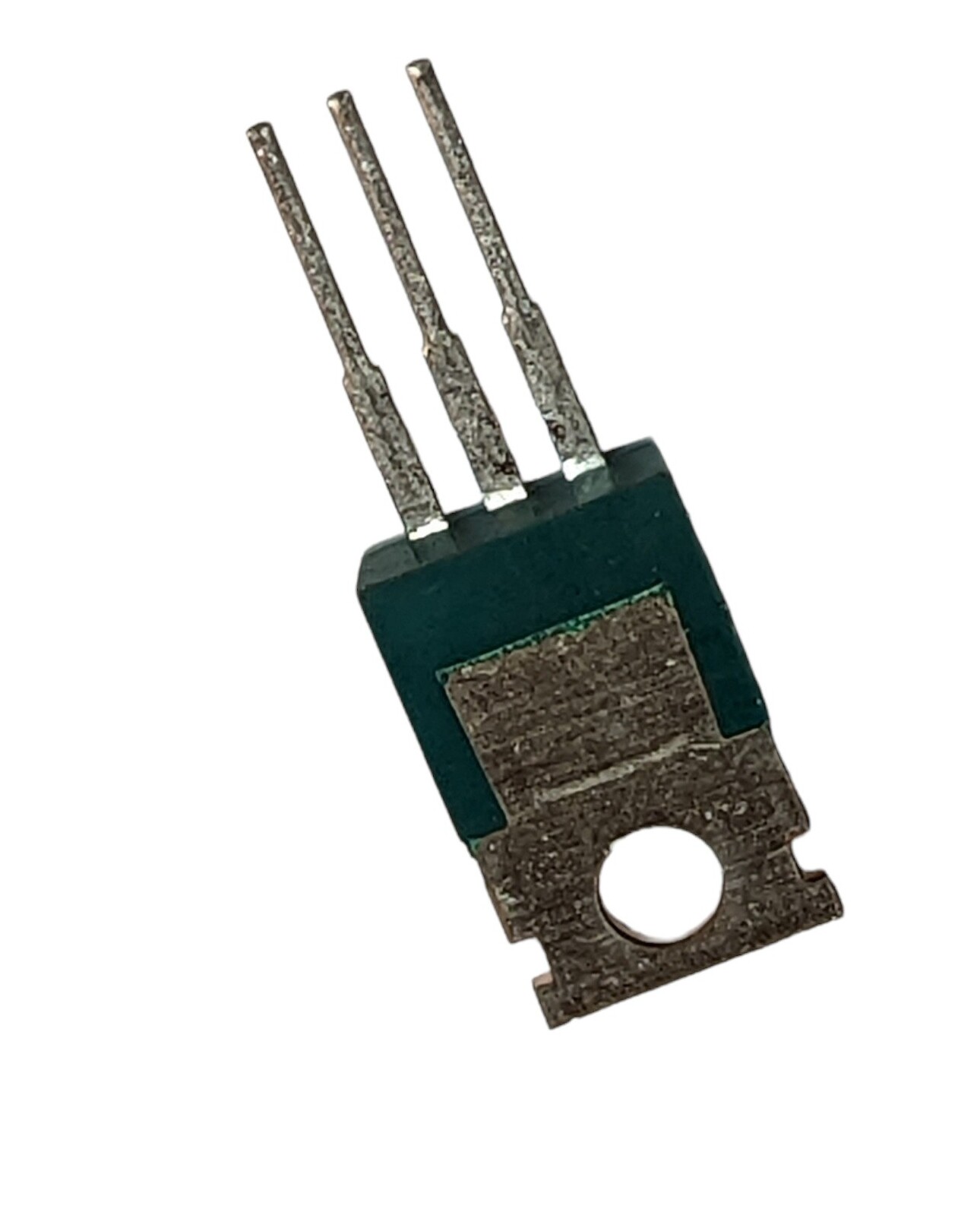

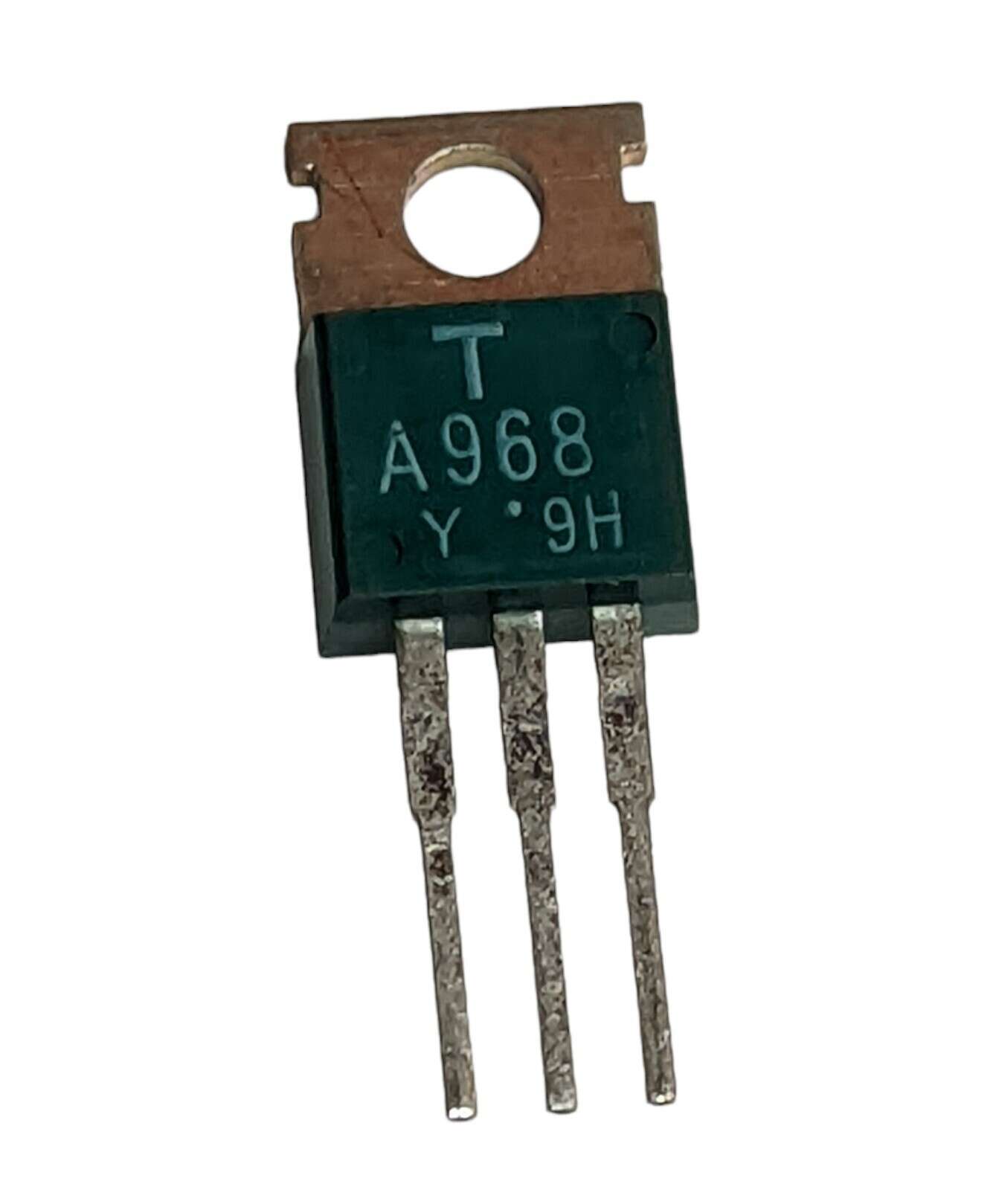

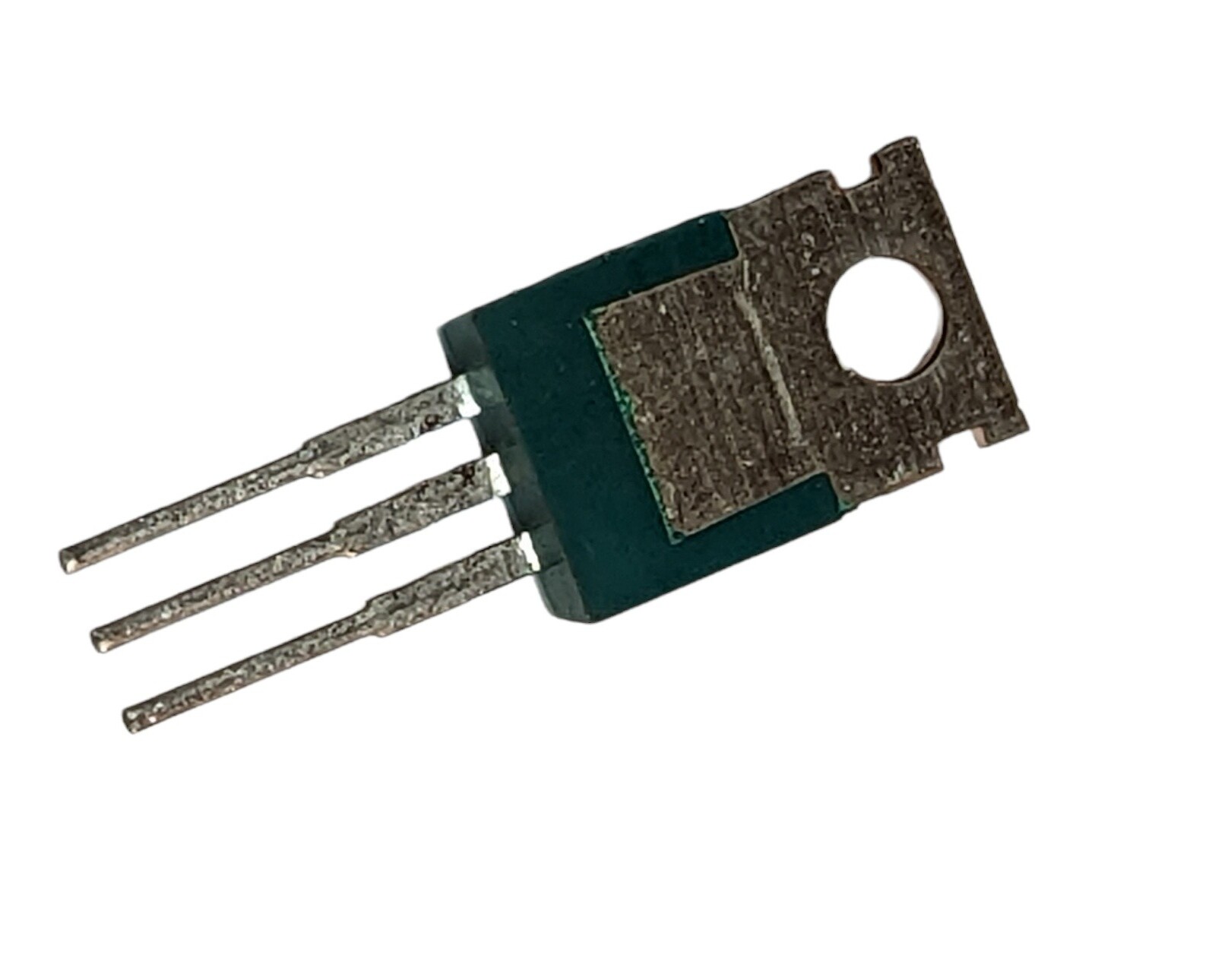

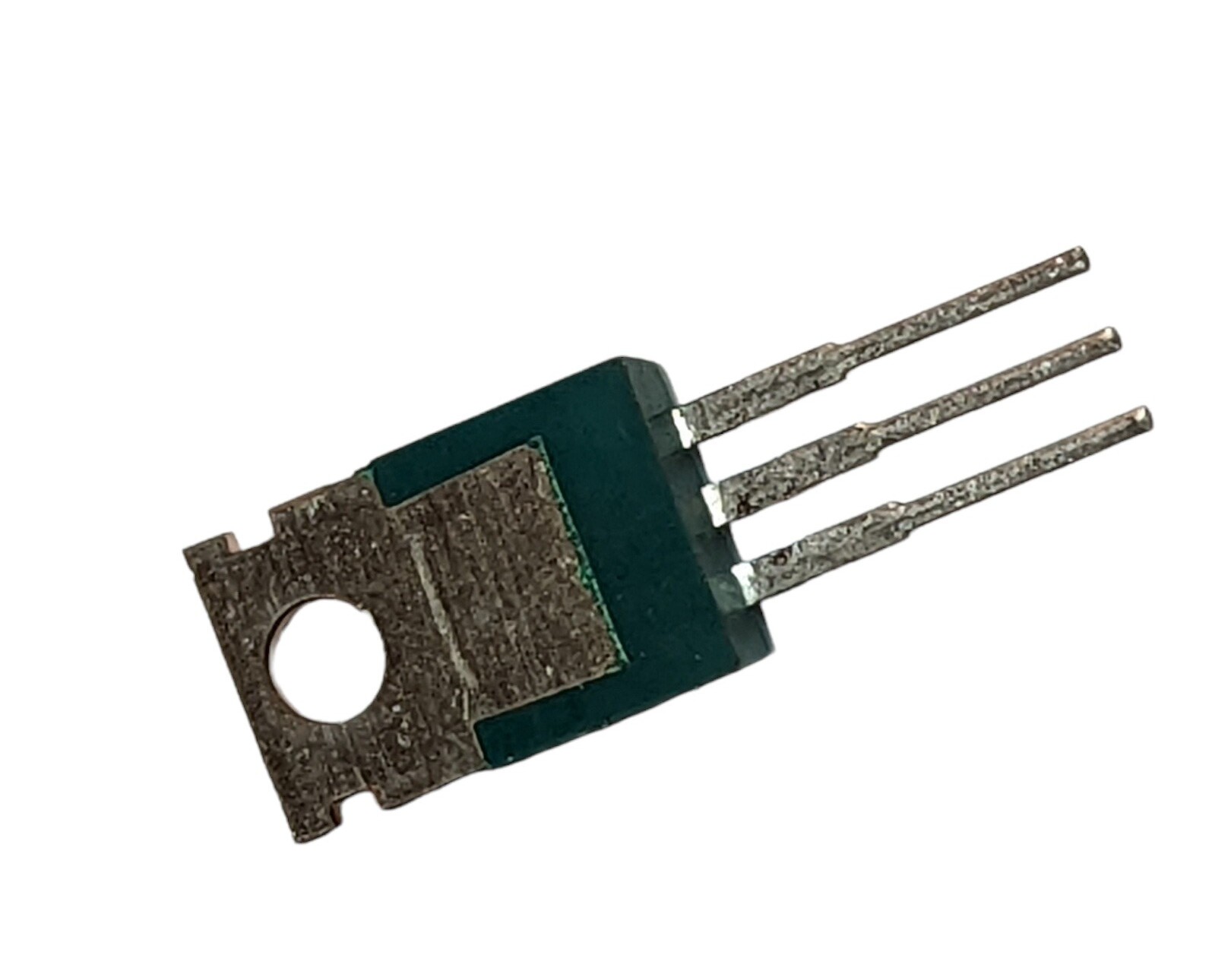

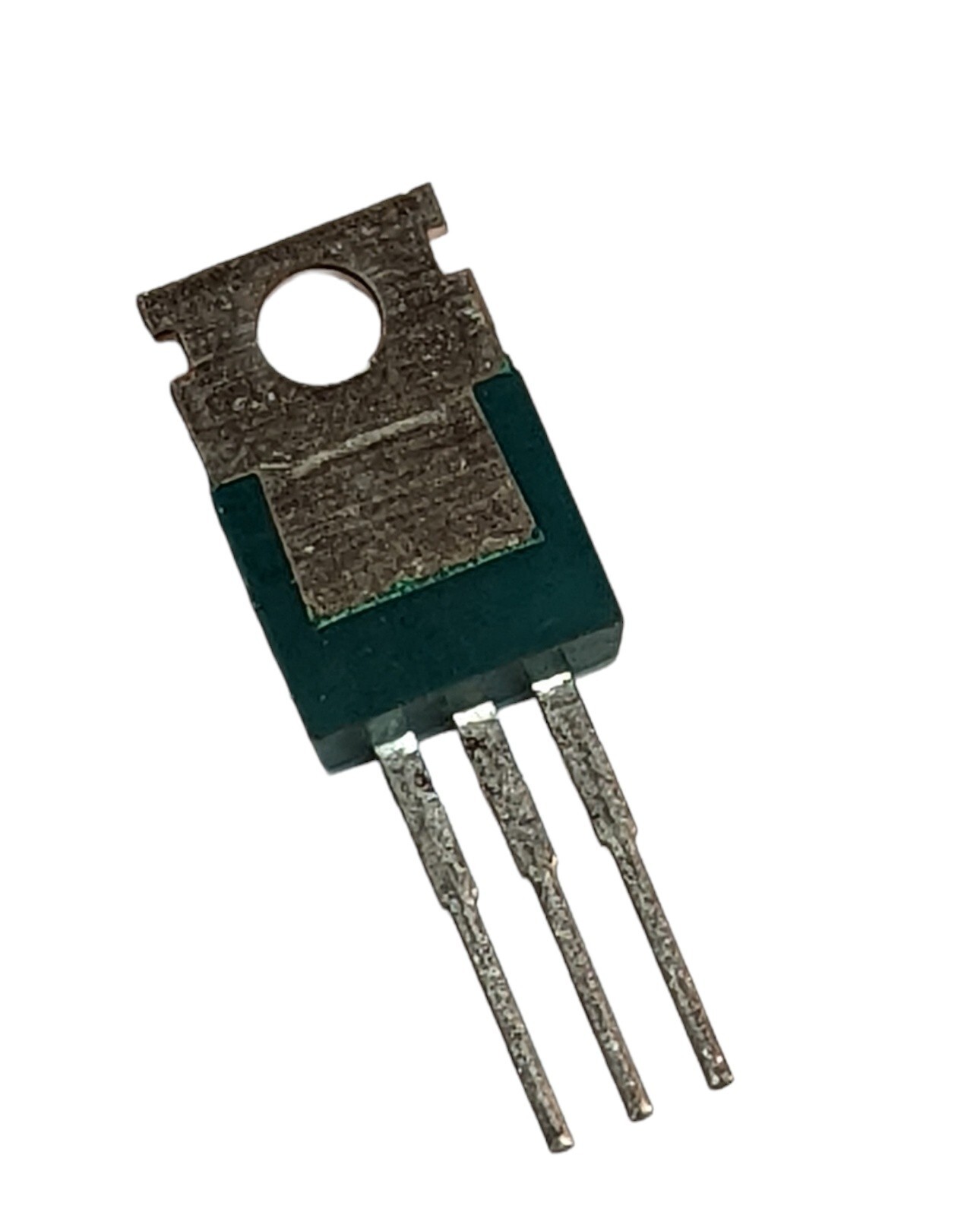

2SA968Y Transistor Silicon PNP CASE: TO220 MAKE: Toshiba
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT for International Orders)

£14.39 Inc. VAT (£11.99 Ex. VAT for International Orders)
Qty
  • 305 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2SA968
Type Transistor Silicon PNP
Case TO220
Manufacturer Toshiba
Vbr CBO 160
Vbr CEO 160
Max. PD (W) 25
Derate (Amb) (W/°C) 200m
Max. hFE 240
Min hFE 120
Ic Max. (A) 1.5
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Trans. Freq (Hz) Min. 100M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 394812
