2SB1165

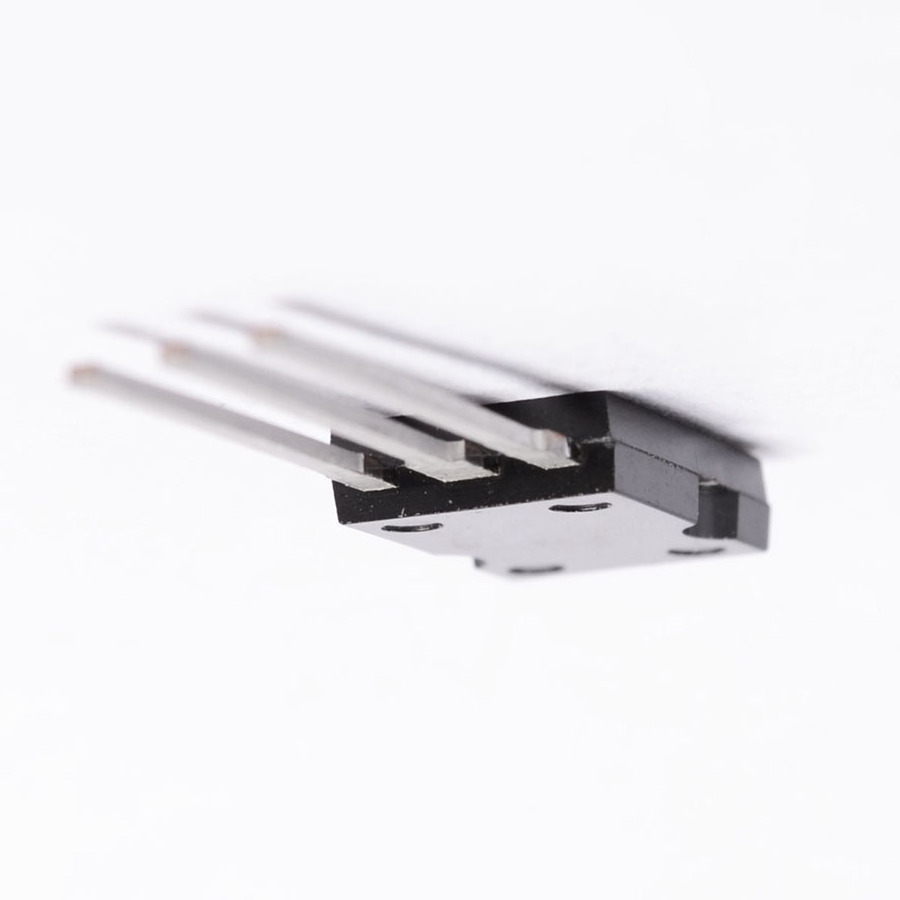

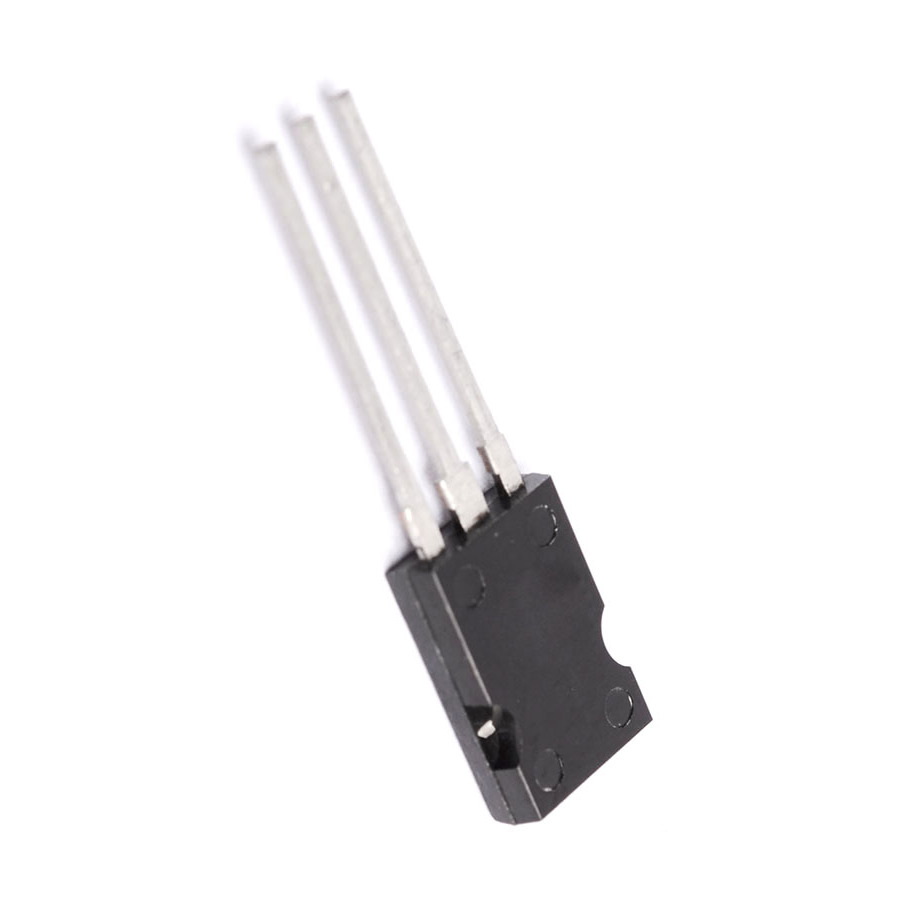

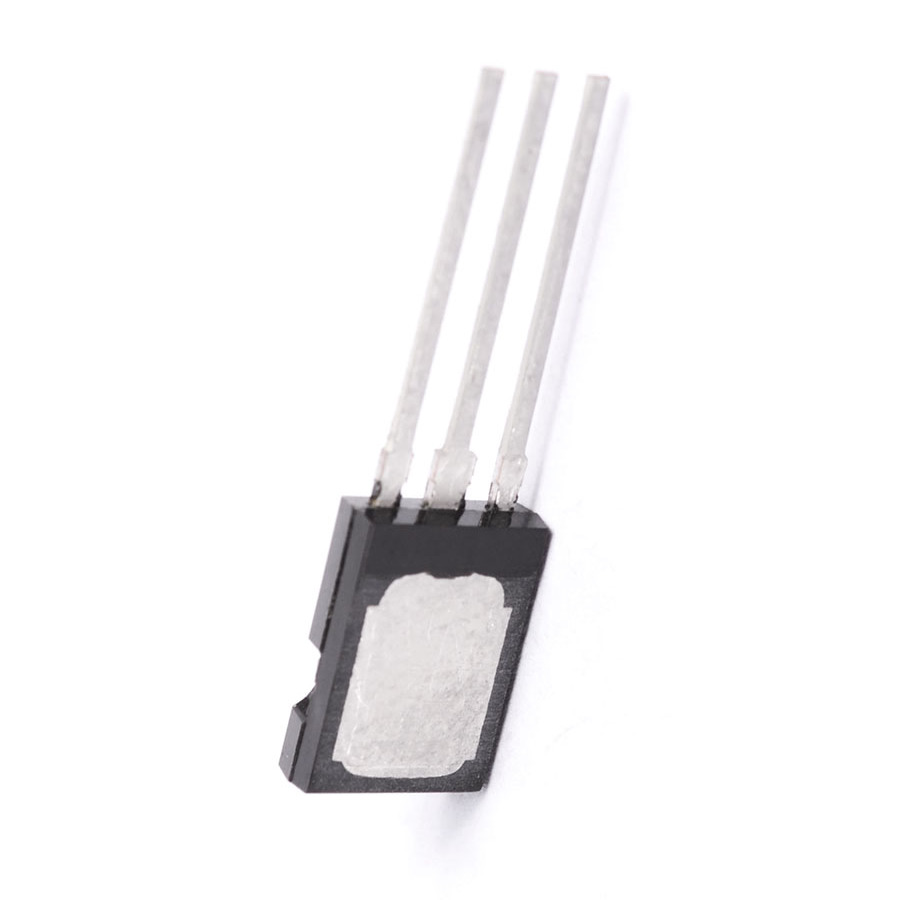

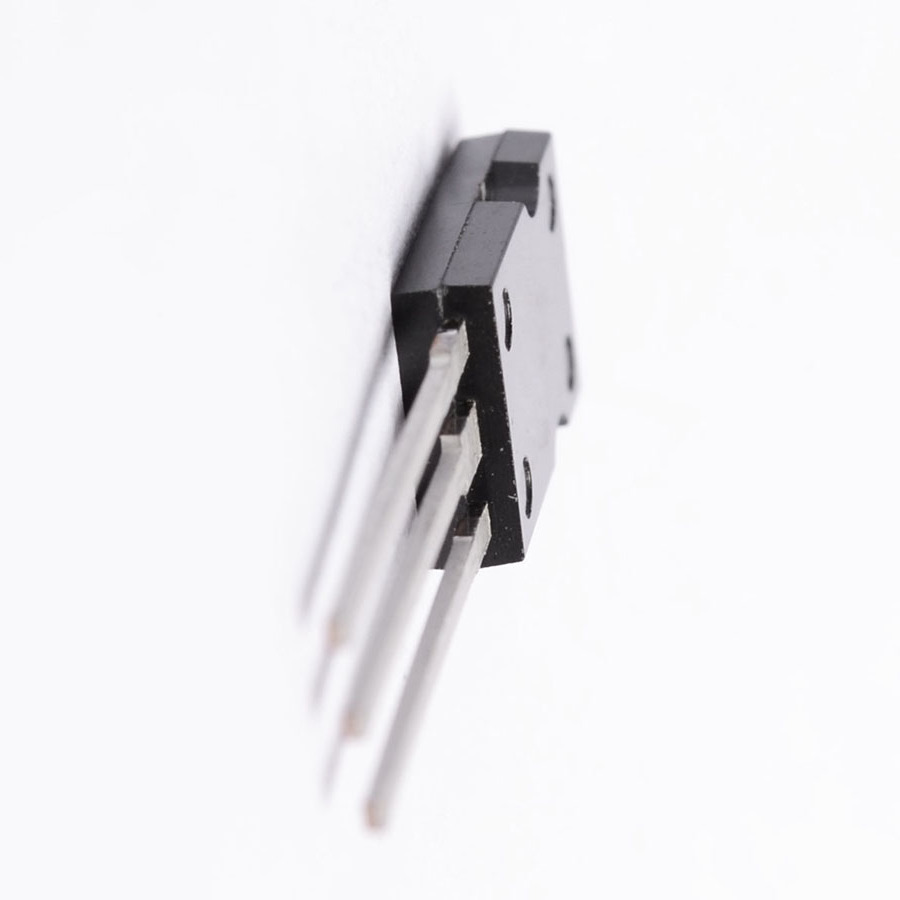

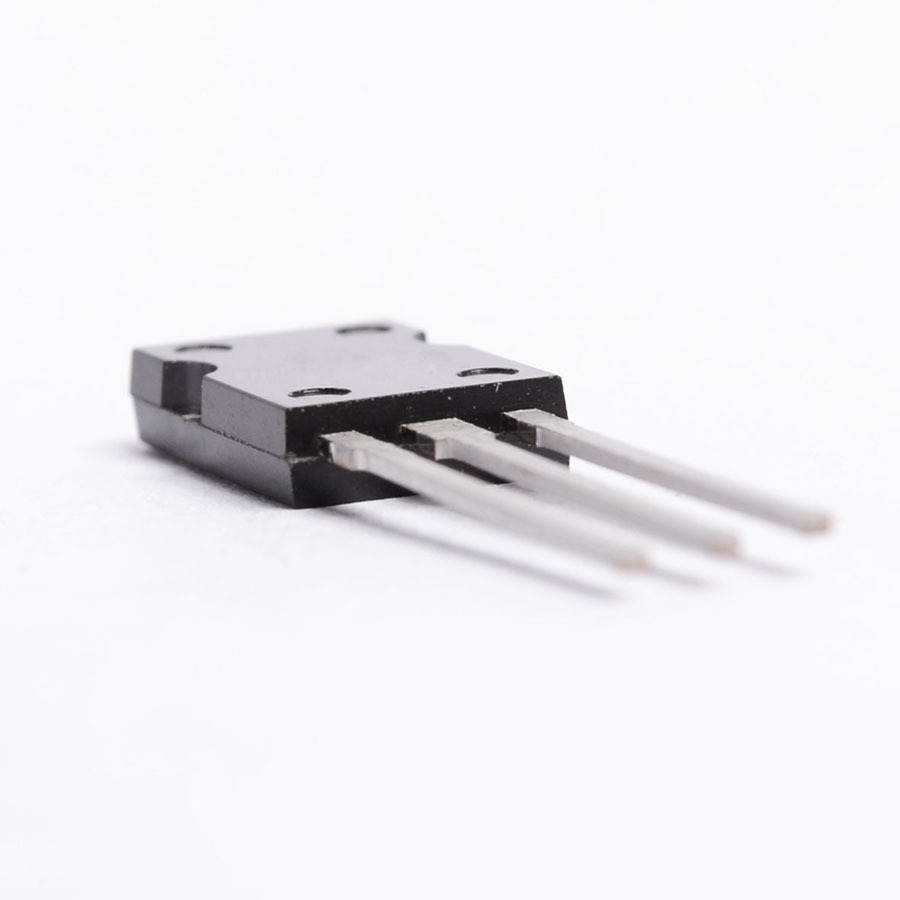

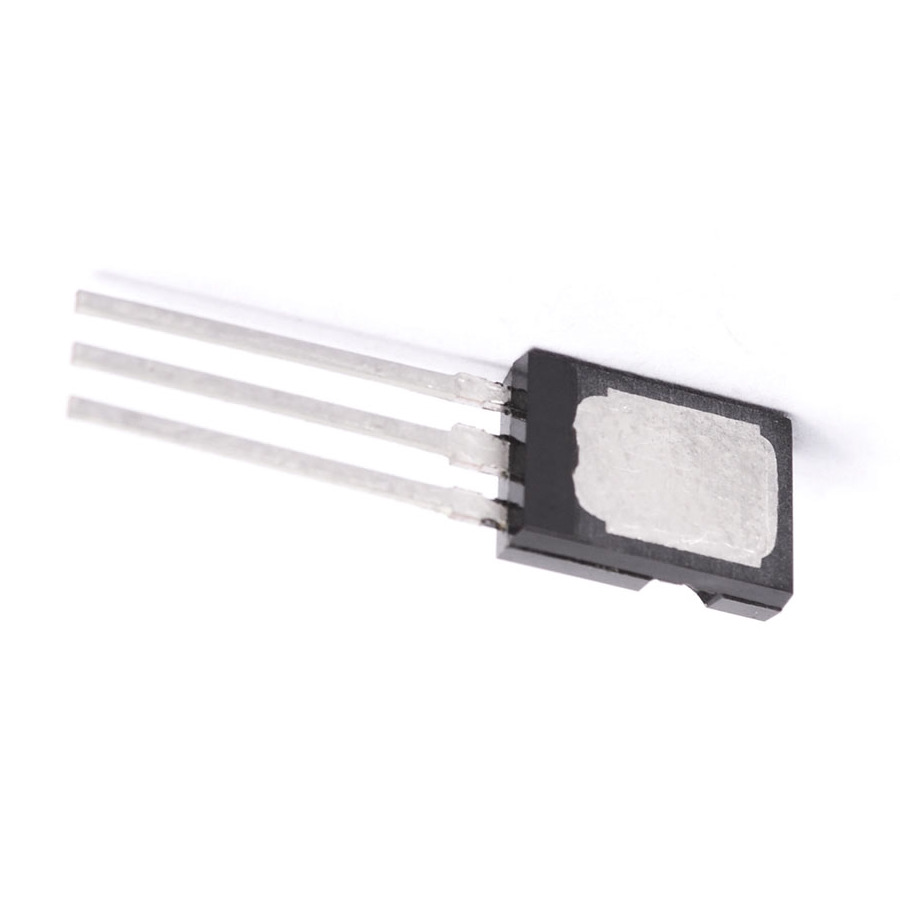

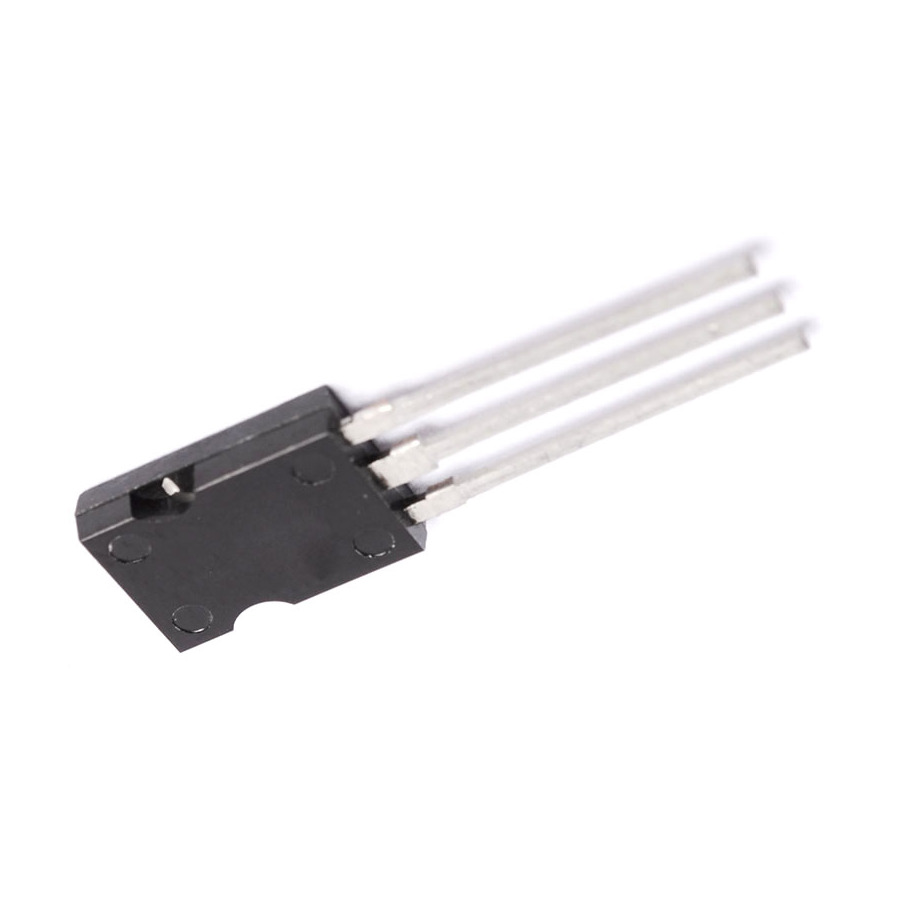

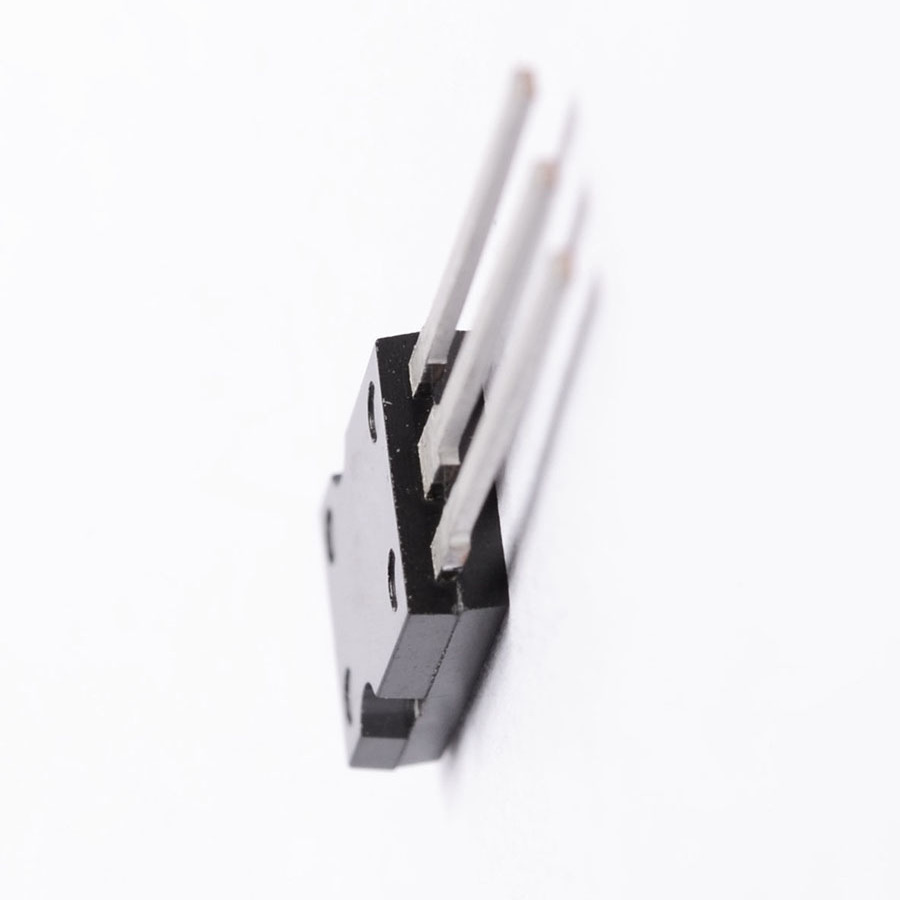

View detailed images (12)

2SB1165

SKU: 2SB1165

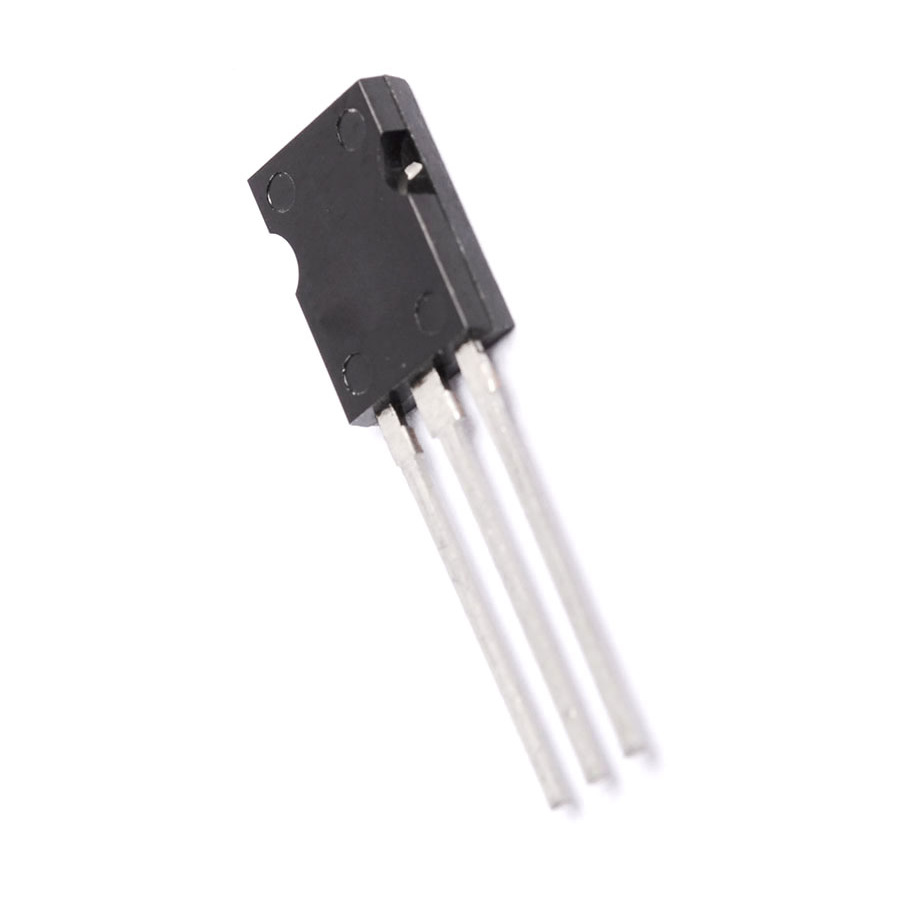

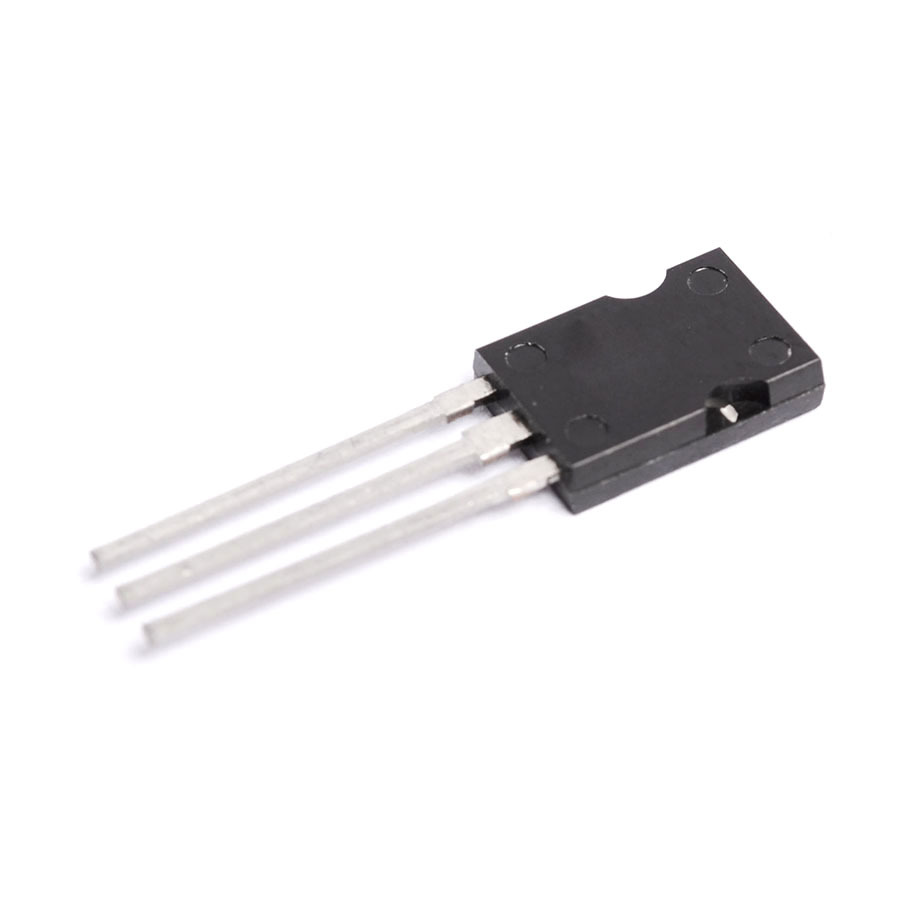

2SB1165 Transistor - Case: SOT82 Make: Sanyo Semiconductor
+ VAT 20% for UK purchases
Datasheet
2SB1165 Datasheet
Product specifications
Equivalent 2SB1165T
Type Transistor Silicon PNP
Case SOT82
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 20
t(f) Max. (S) 20n
Max. hFE 400
Min hFE 70
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Tr Max. (s) 50n
Trans. Freq (Hz) Min. 180M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SKU 343401
