2SB1165T
View detailed images (12)

2SB1165T

SKU: 2SB1165T

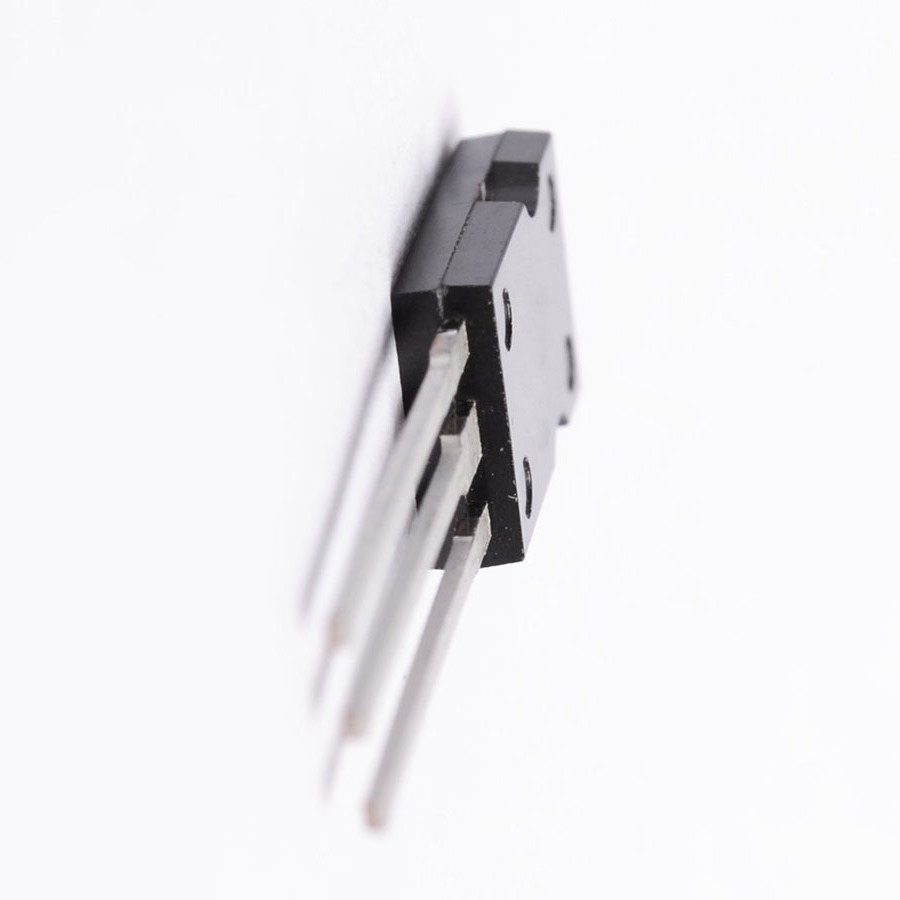

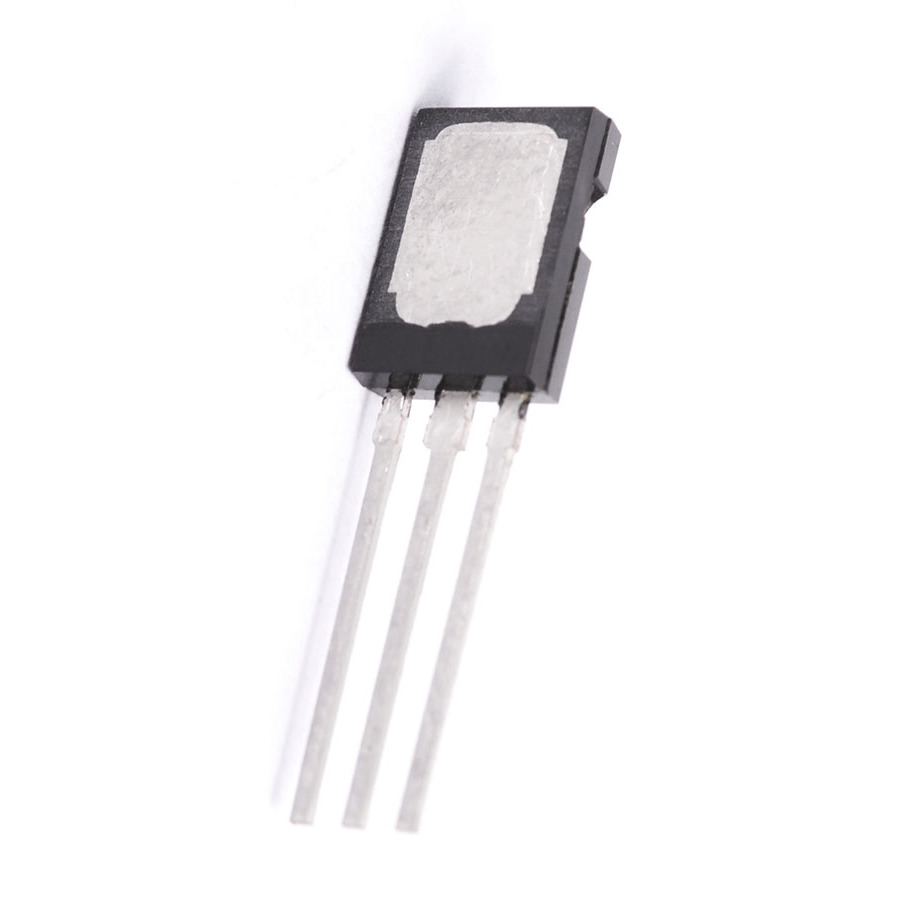

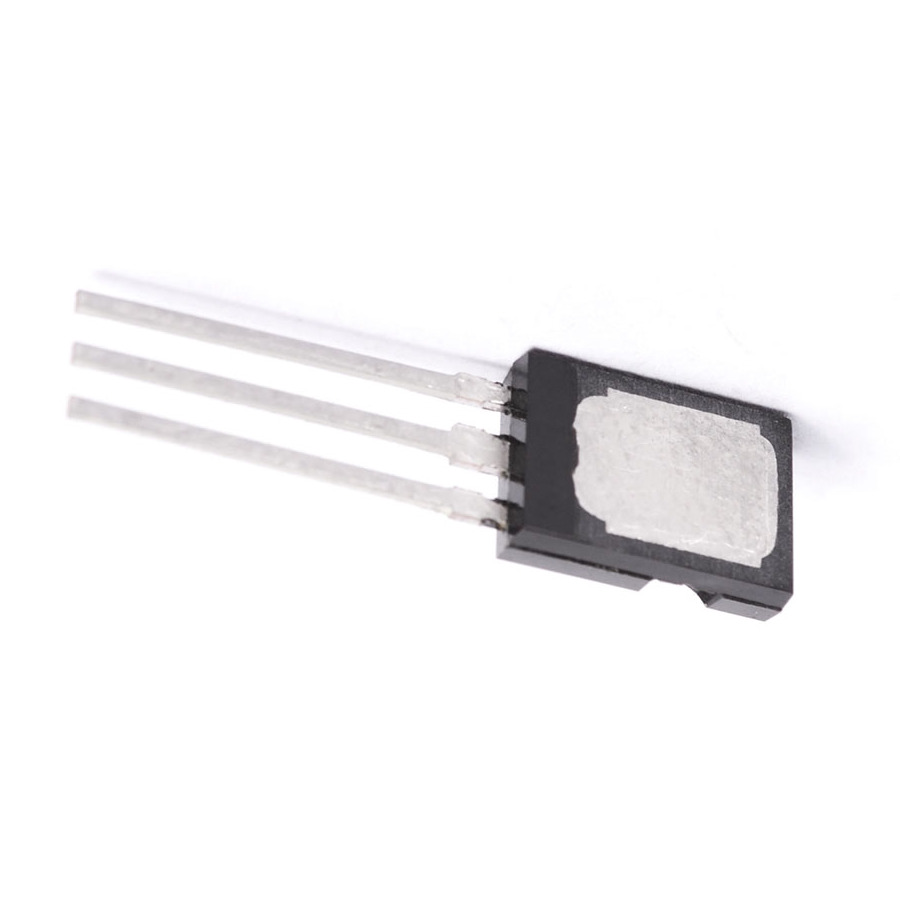

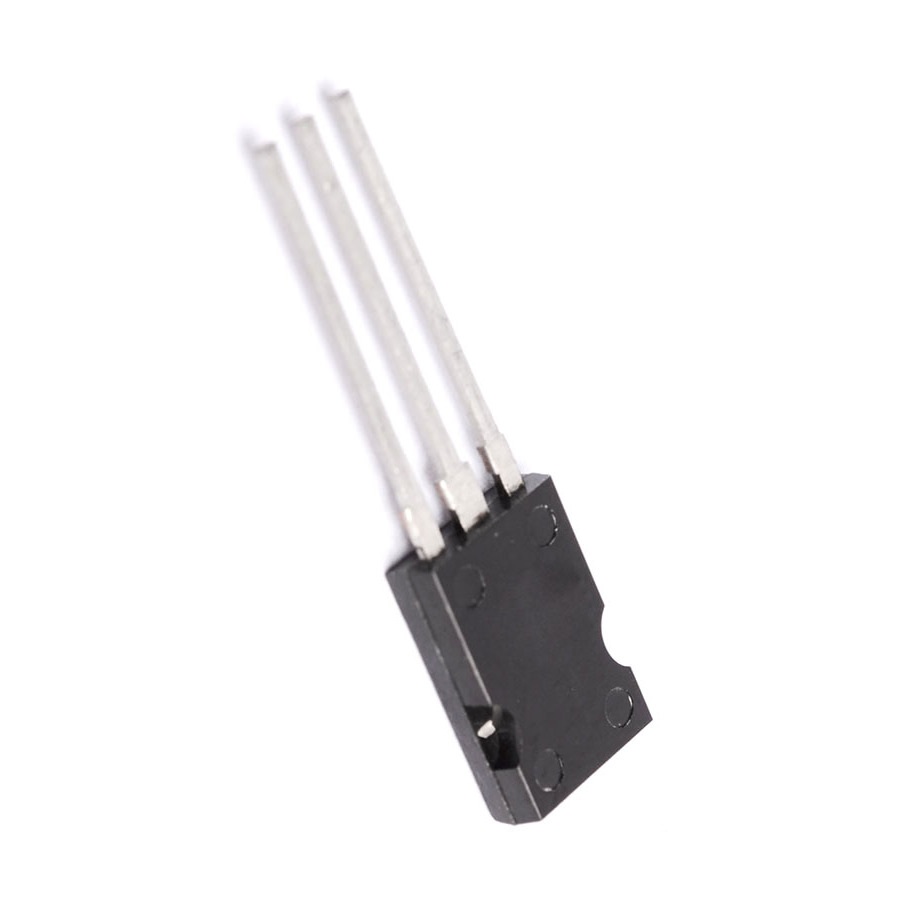

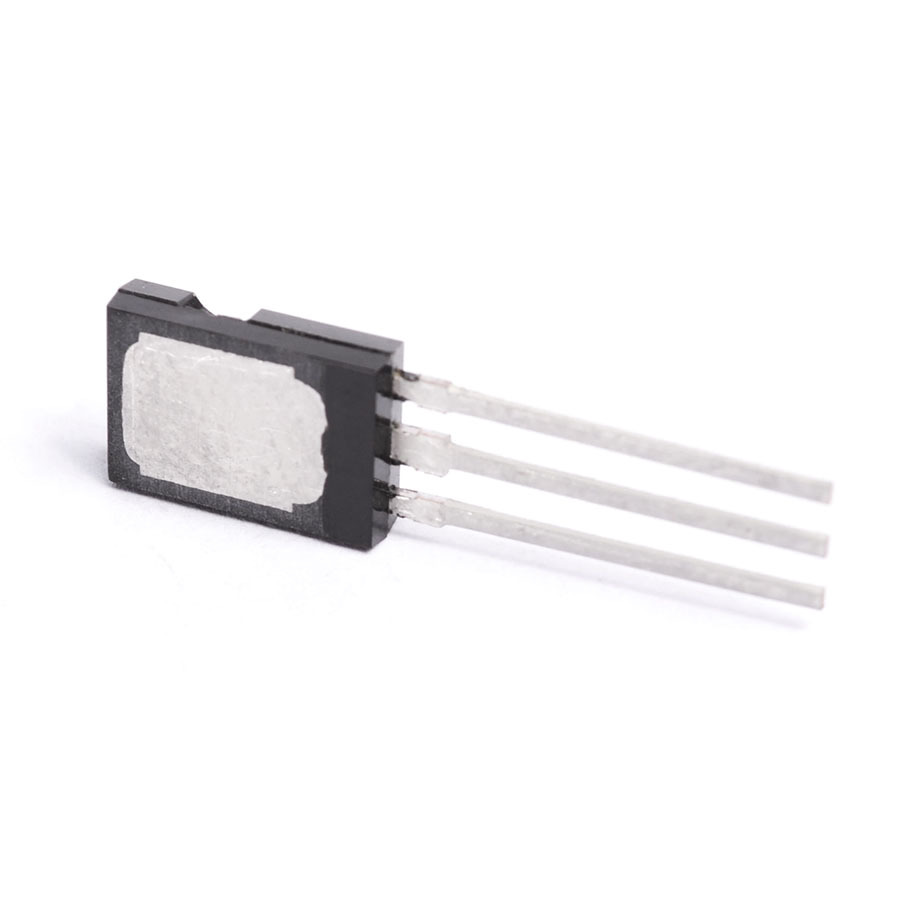

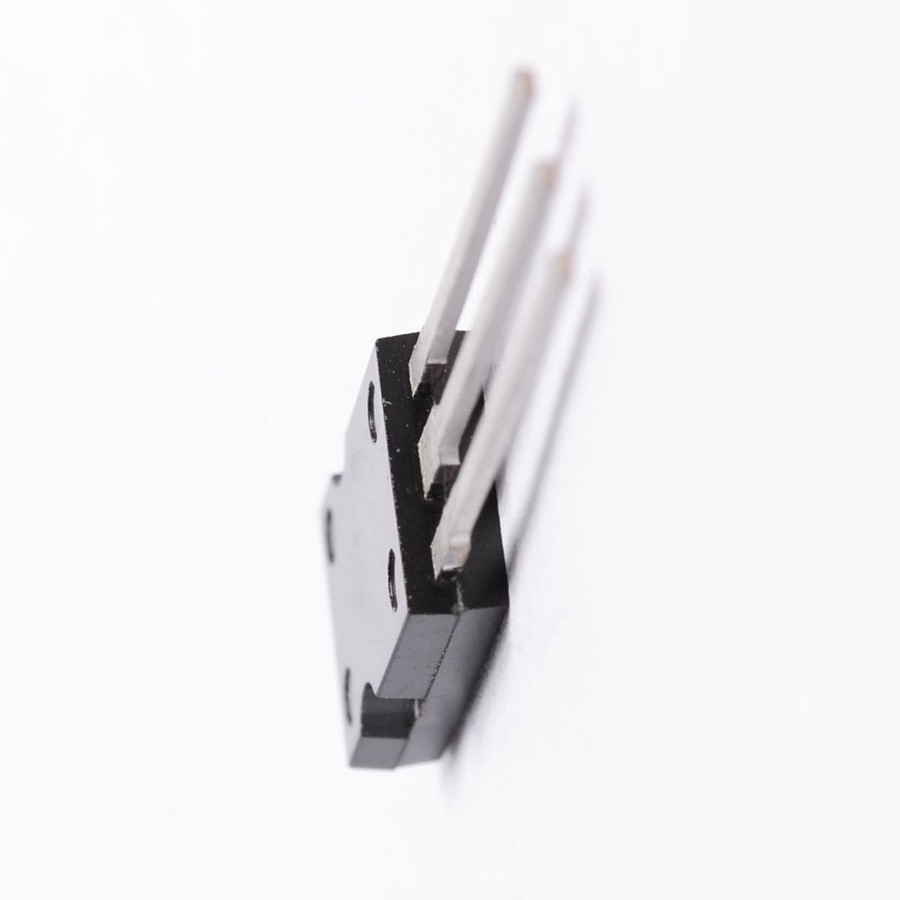

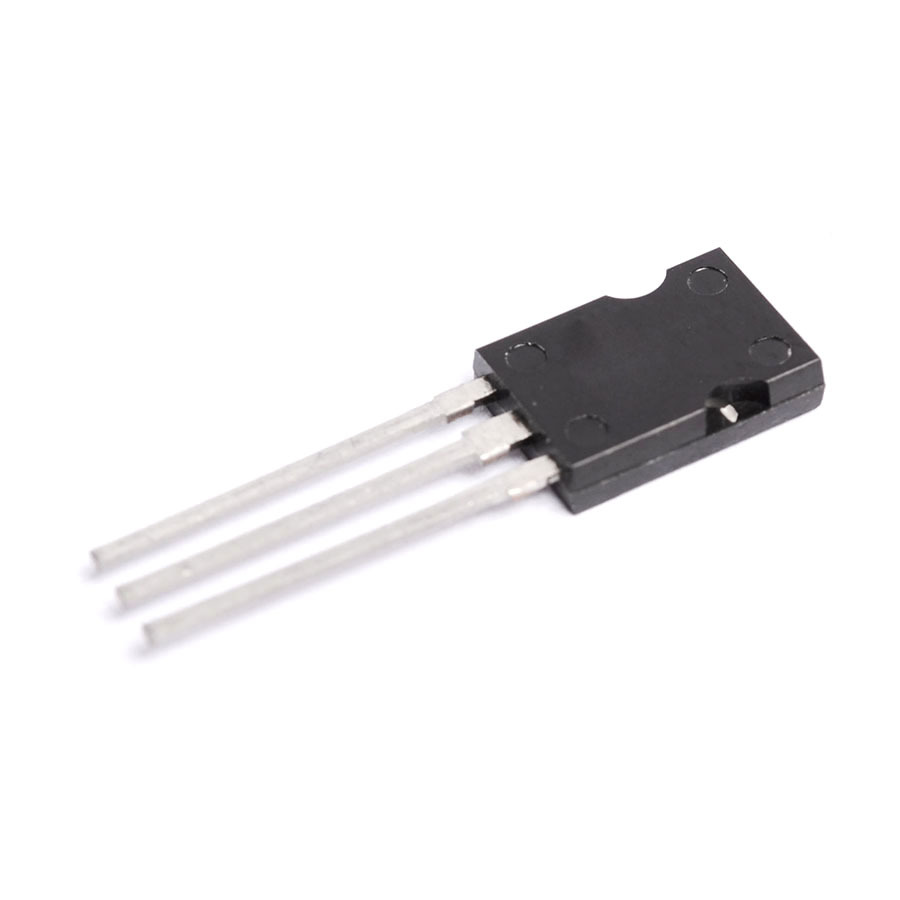

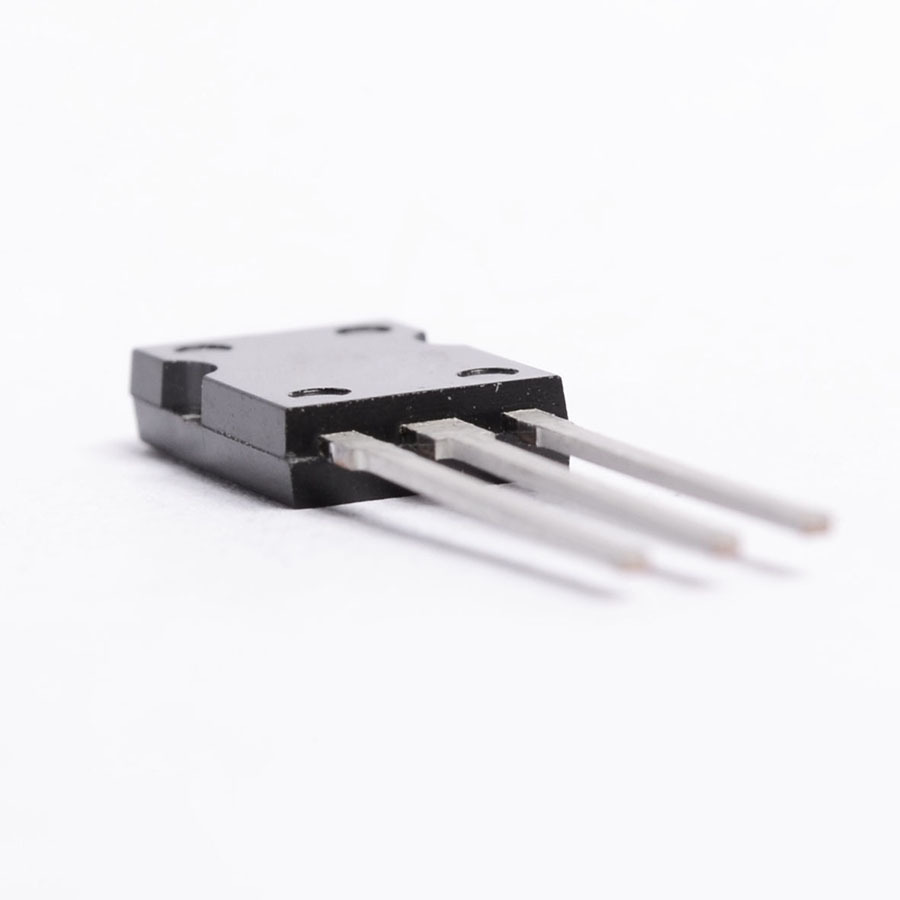

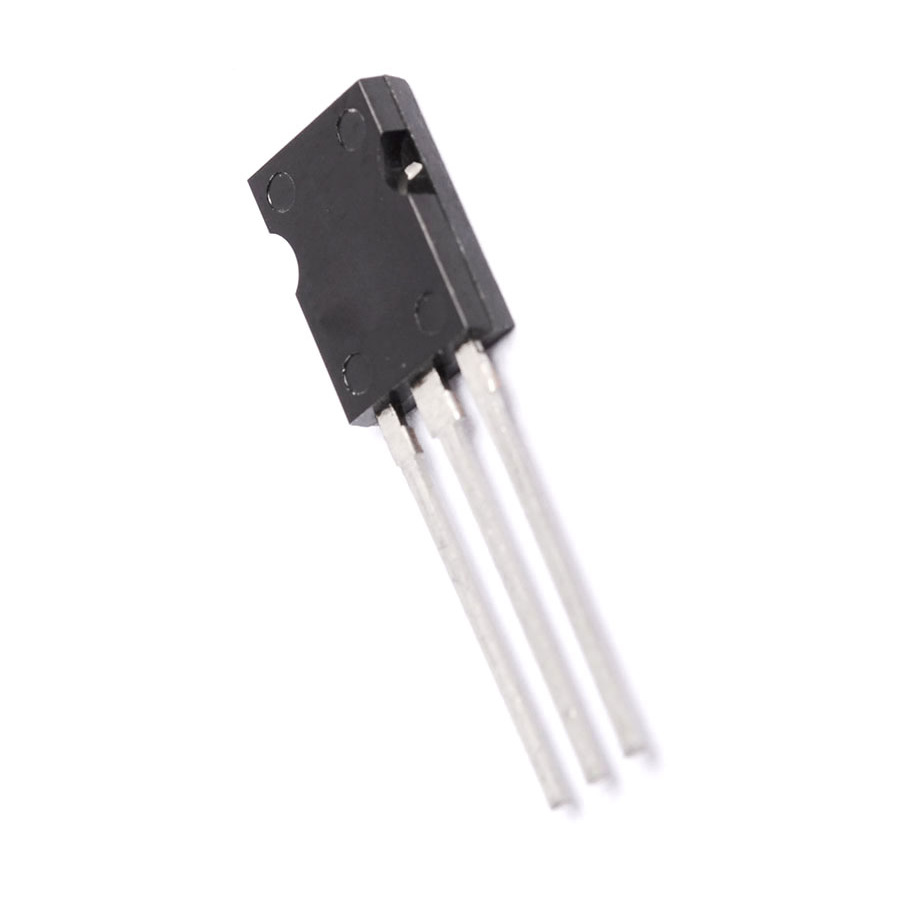

2SB1165T Transistor - Case: SOT82 Make: Sanyo Semiconductor
+ VAT 20% for UK purchases
Product specifications
Equivalent 2SB1165
Type Transistor Silicon PNP
Case SOT82
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 20
t(f) Max. (S) 20n
Max. hFE 400
Min hFE 200
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Tr Max. (s) 50n
Trans. Freq (Hz) Min. 180M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SKU 572249
