2SB1165S
View detailed images (12)

2SB1165S

SKU: 2SB1165S

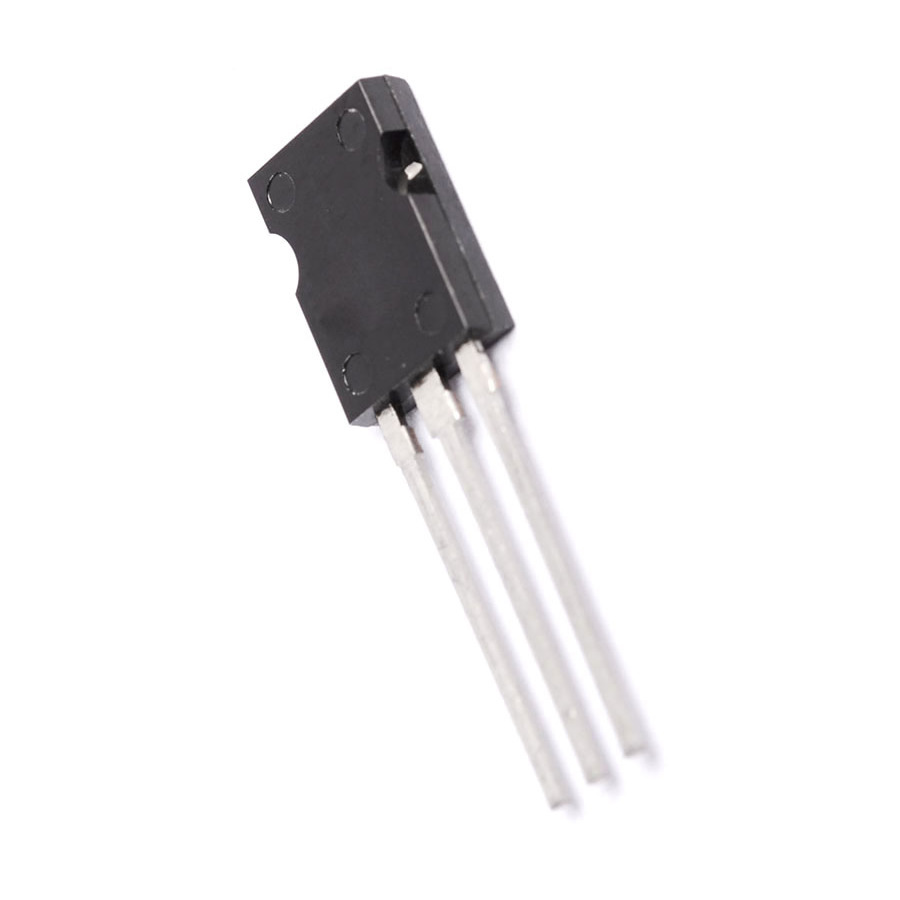

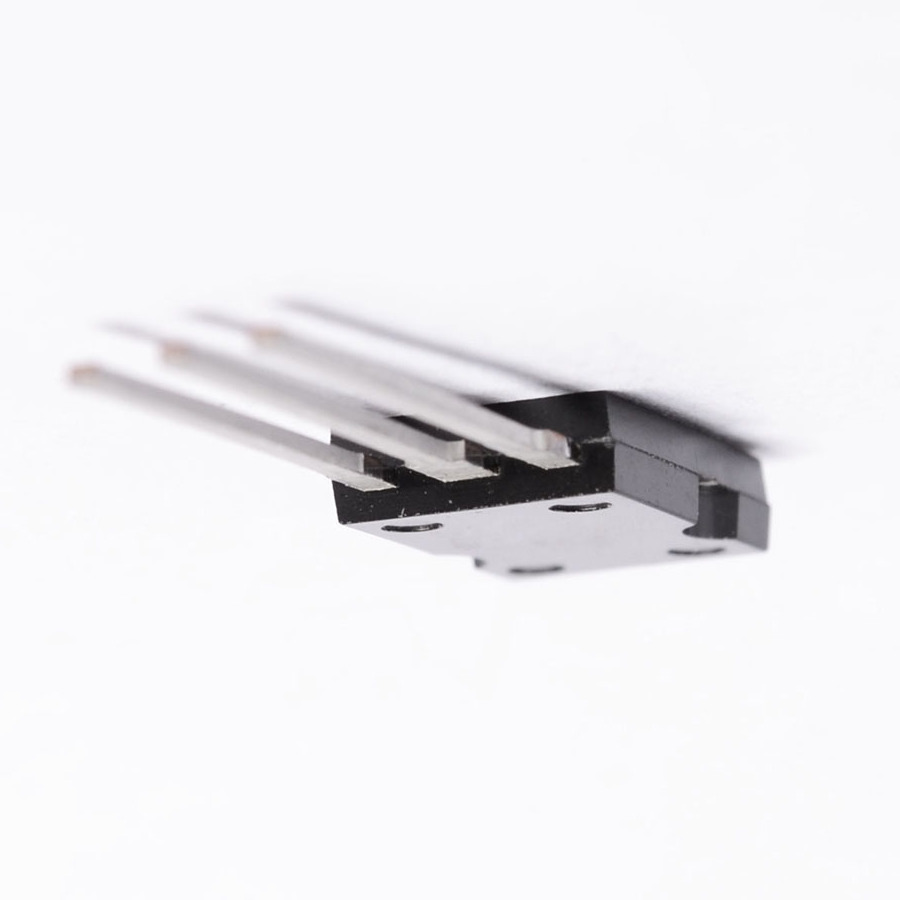

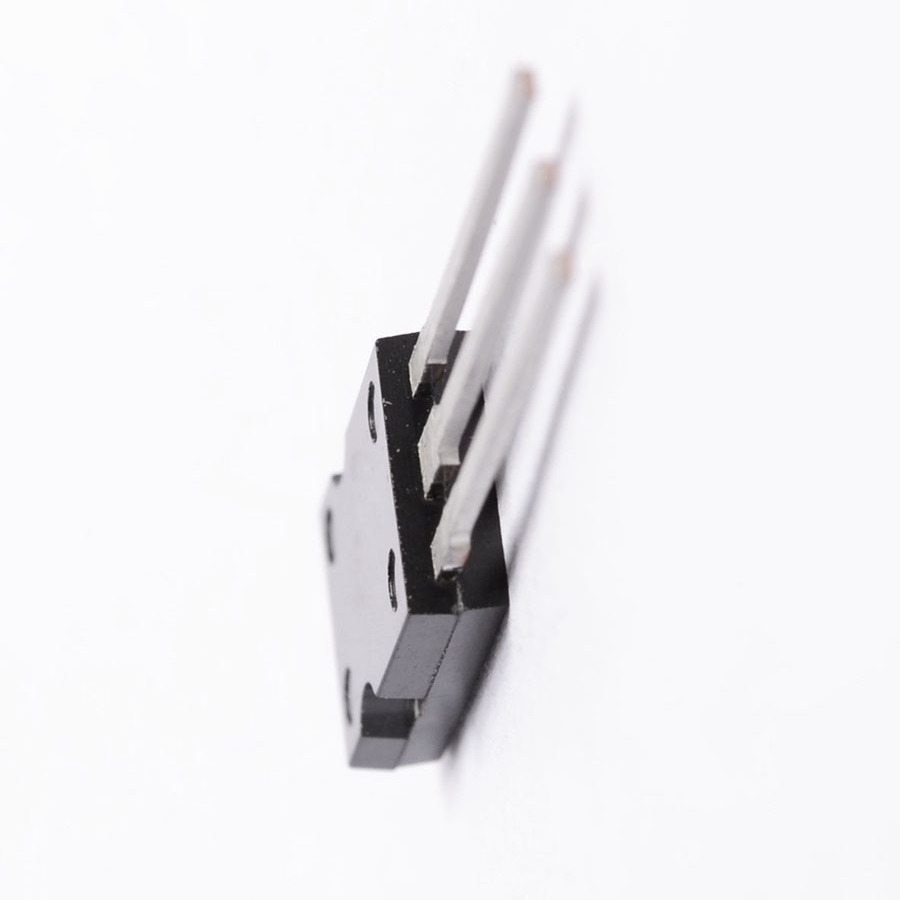

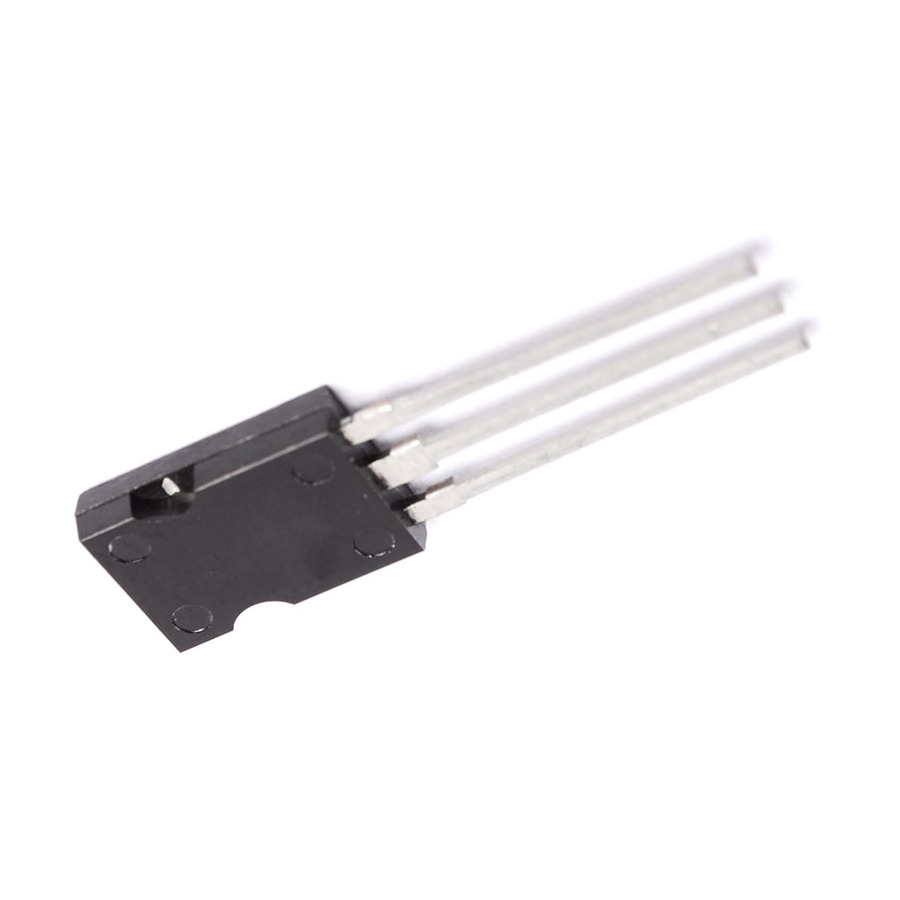

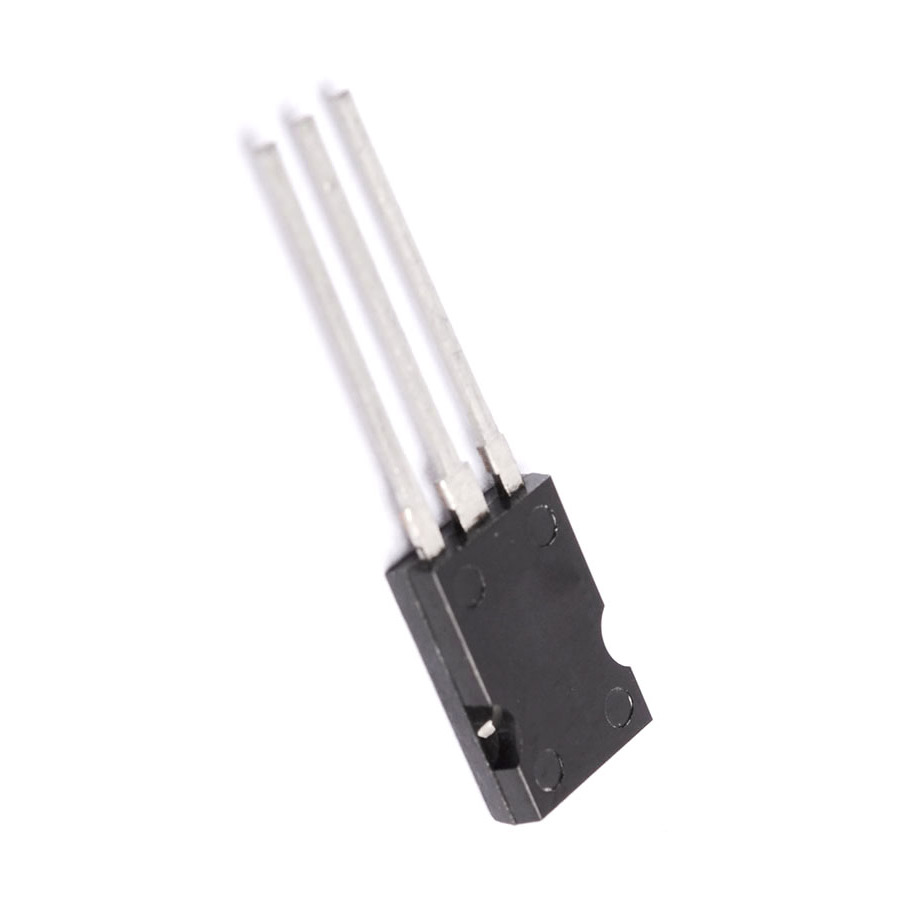

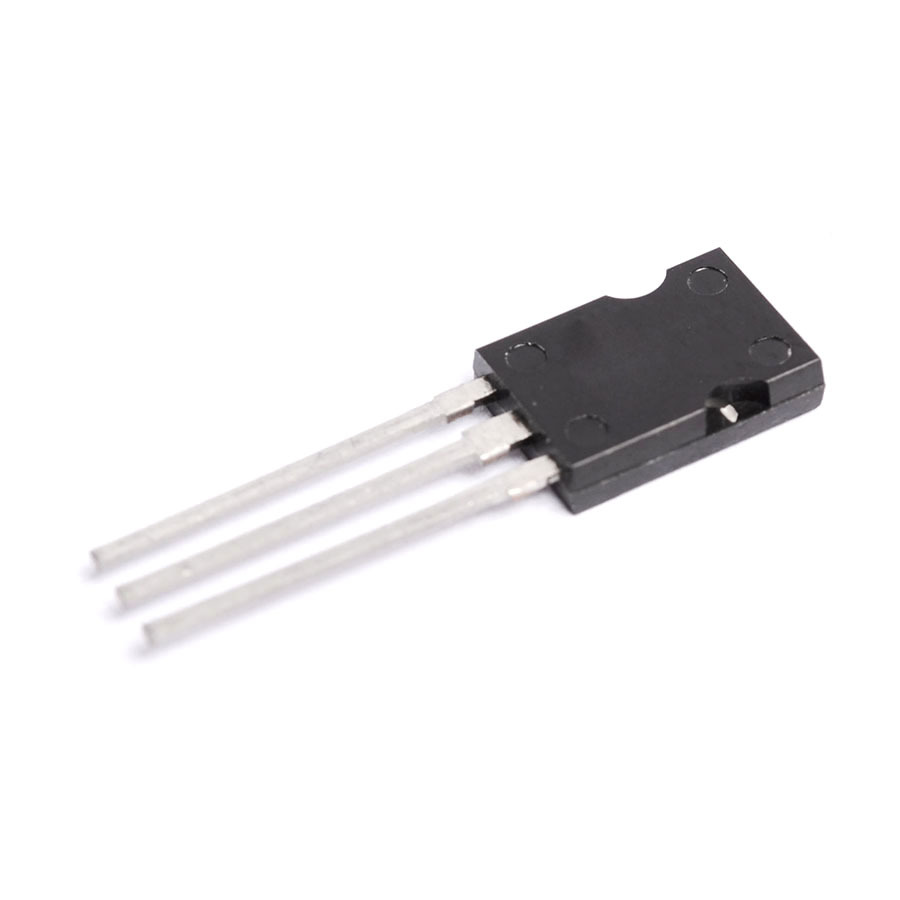

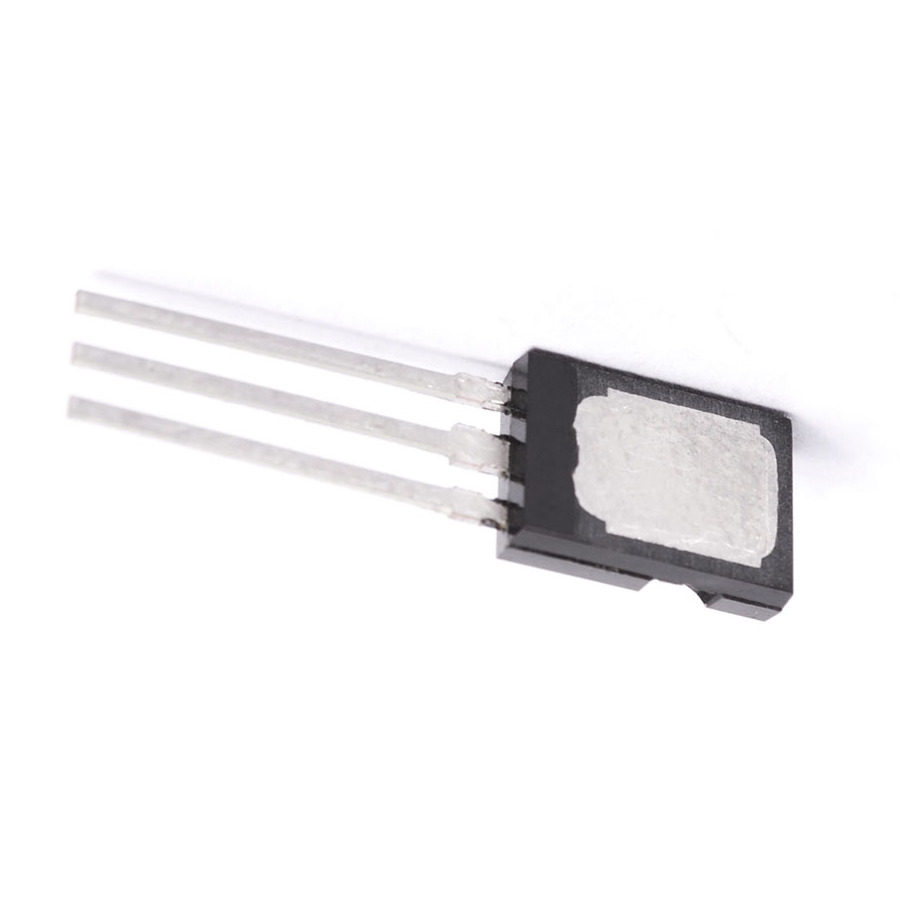

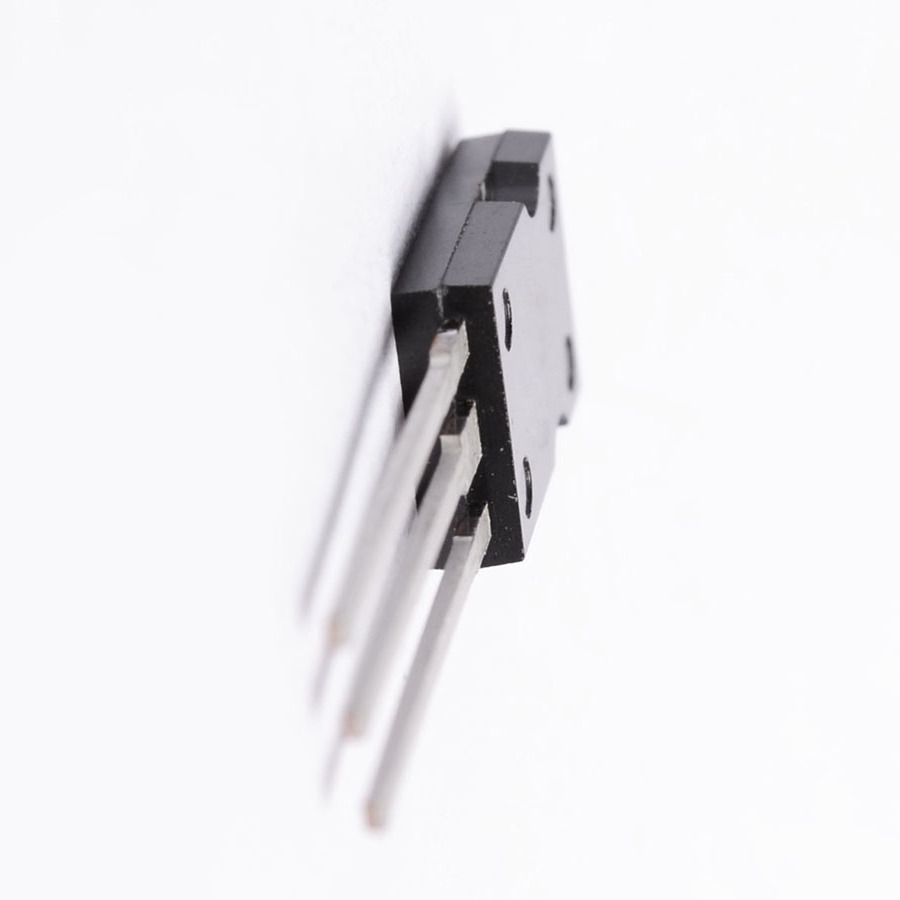

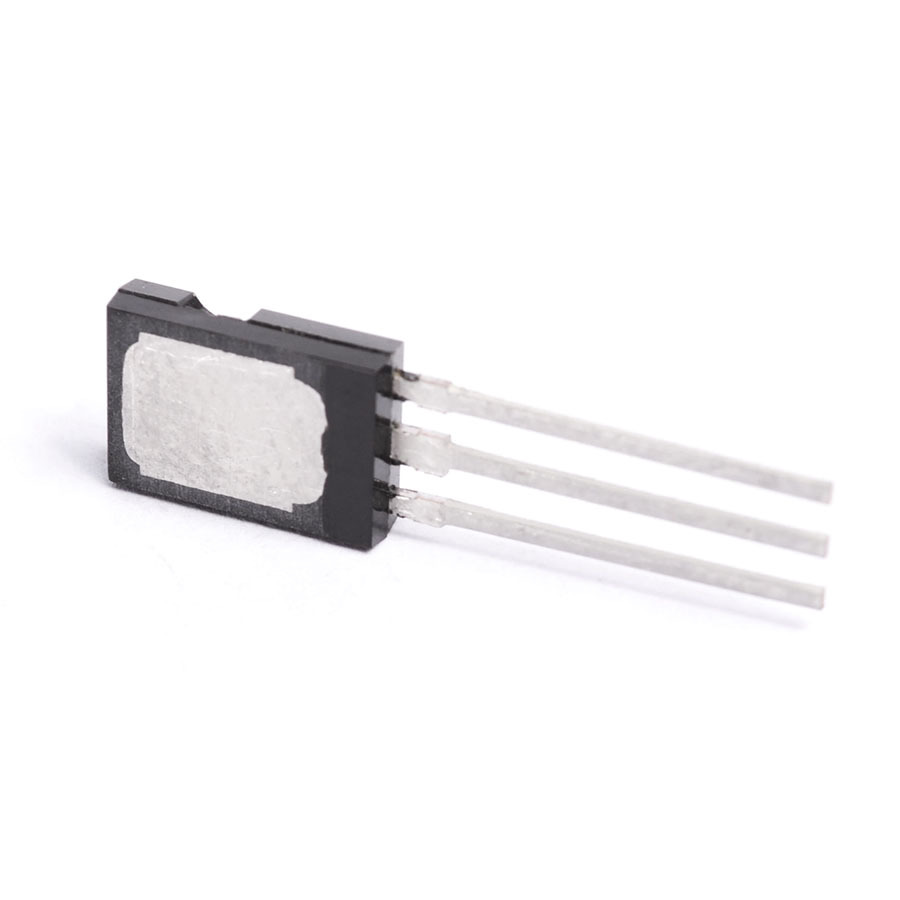

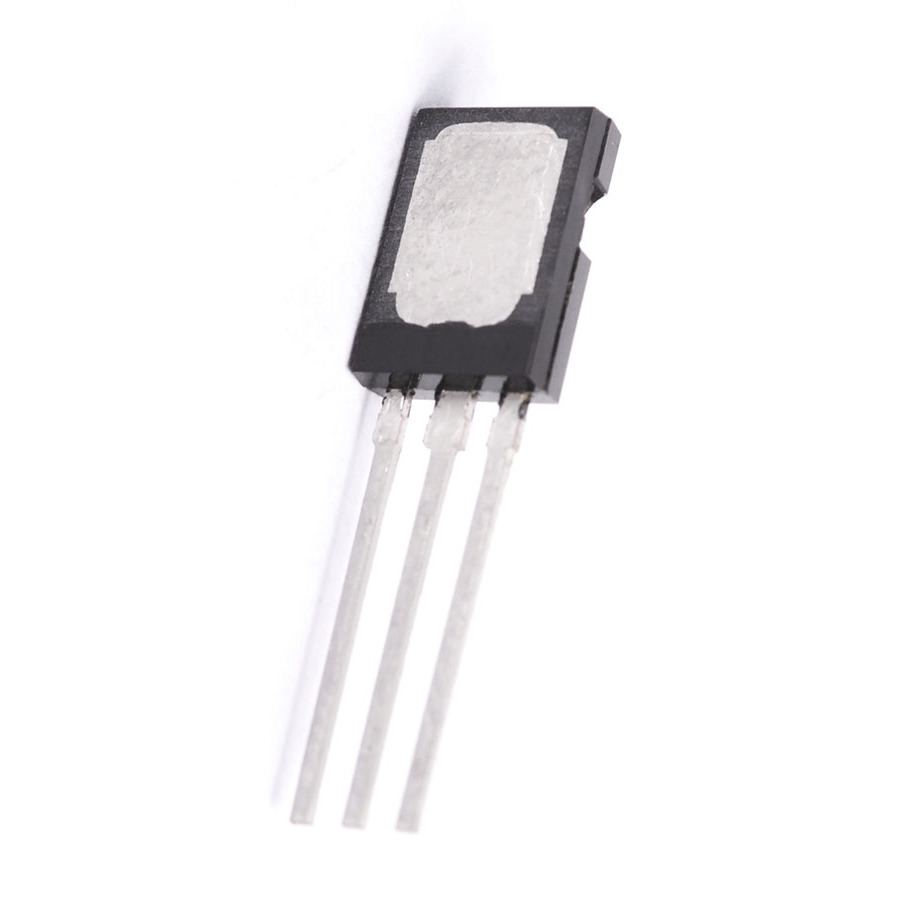

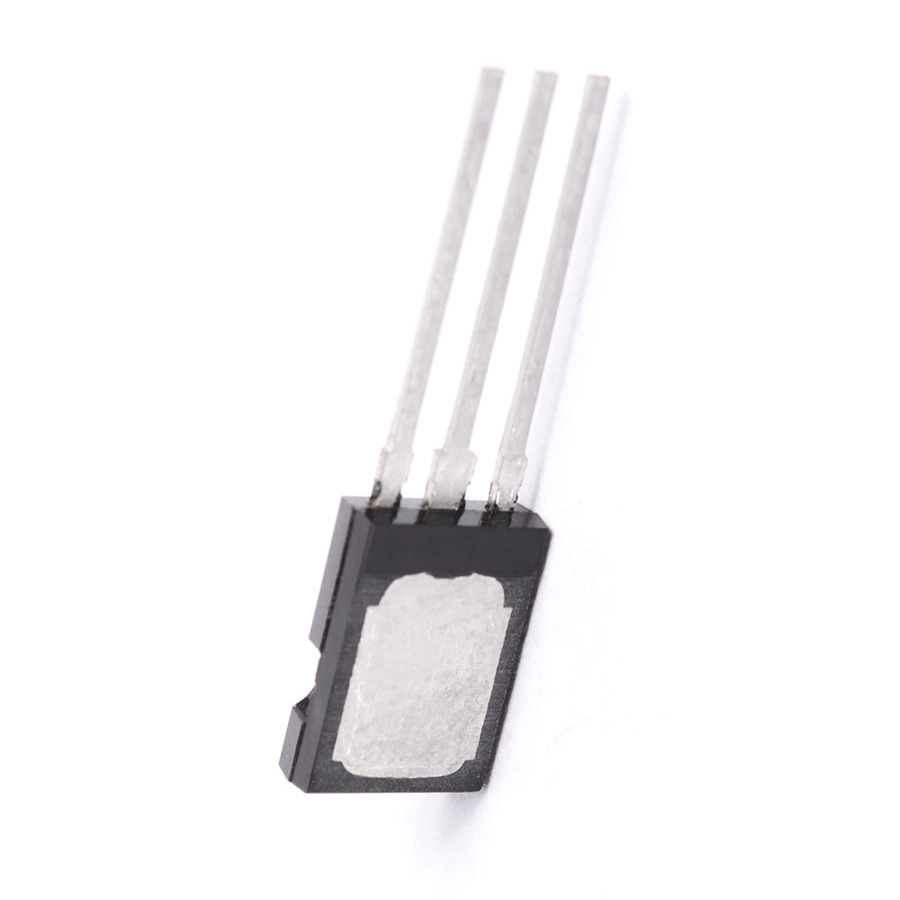

2SB1165S Transistor Silicon PNP CASE: SOT82 MAKE: Sanyo Semiconductor
Product specifications
Equivalent 2SB1165
Type Transistor Silicon PNP
Case SOT82
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 20
t(f) Max. (S) 20n
Max. hFE 280
Min hFE 140
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Tr Max. (s) 50n
Trans. Freq (Hz) Min. 180M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 130 MHz
Forward Current Transfer Ratio (hFE), MIN 140
SKU 572248
