2SB1449

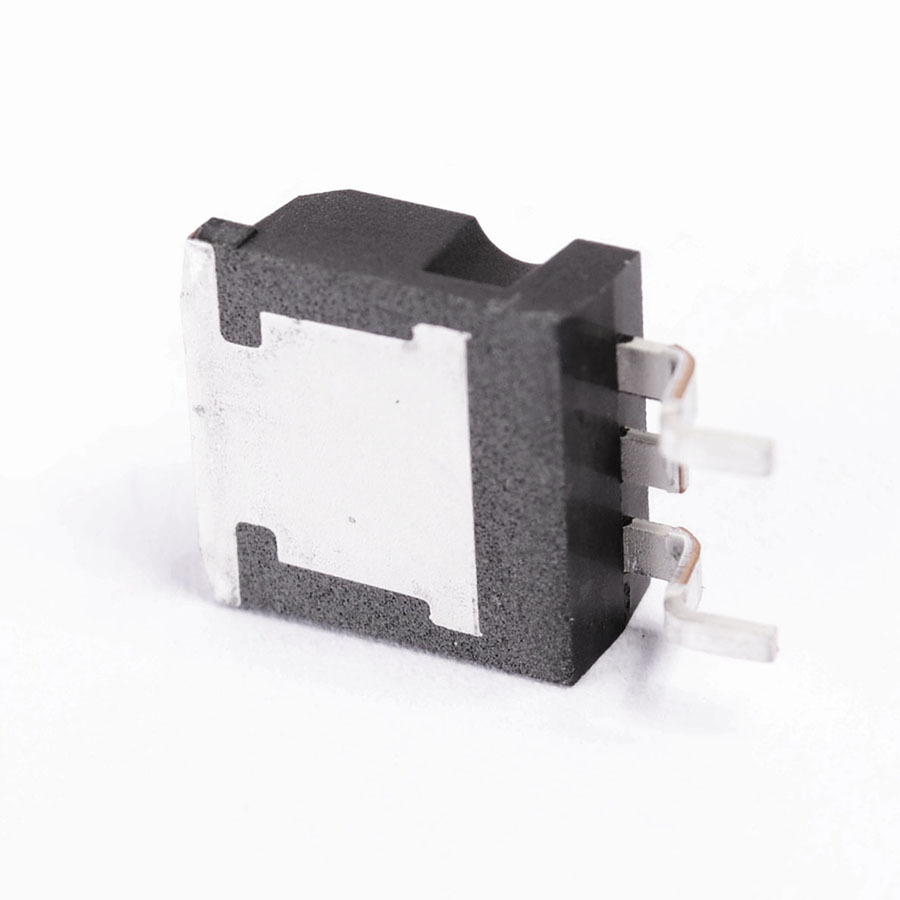

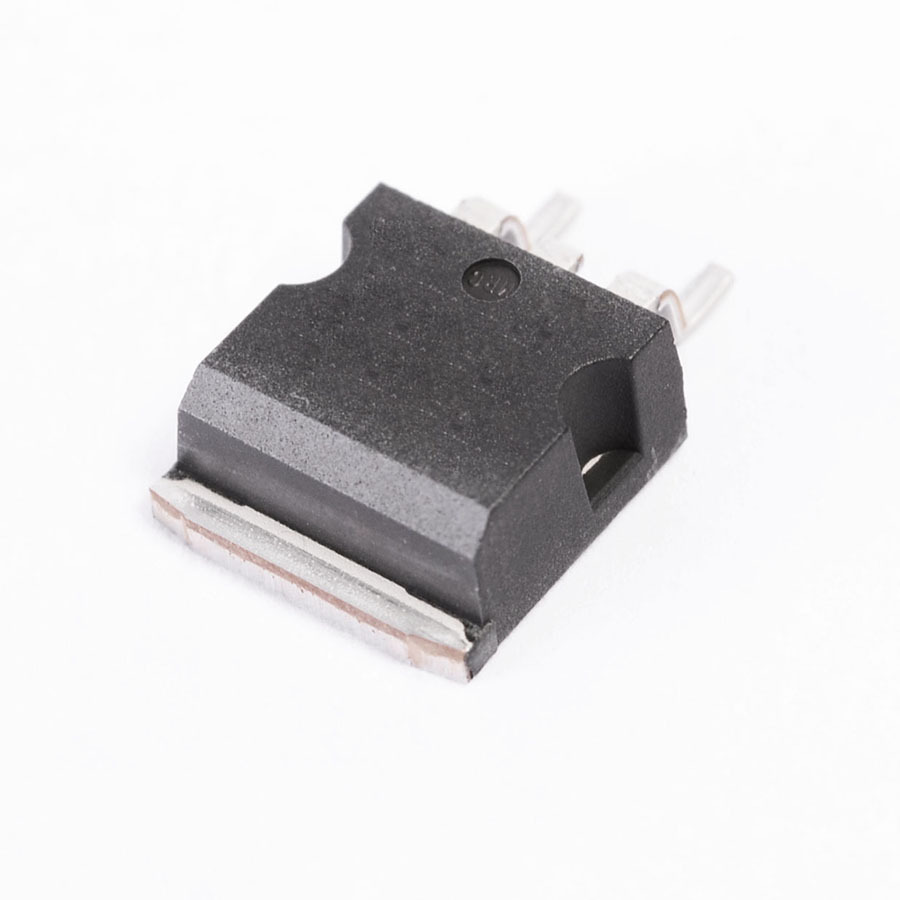

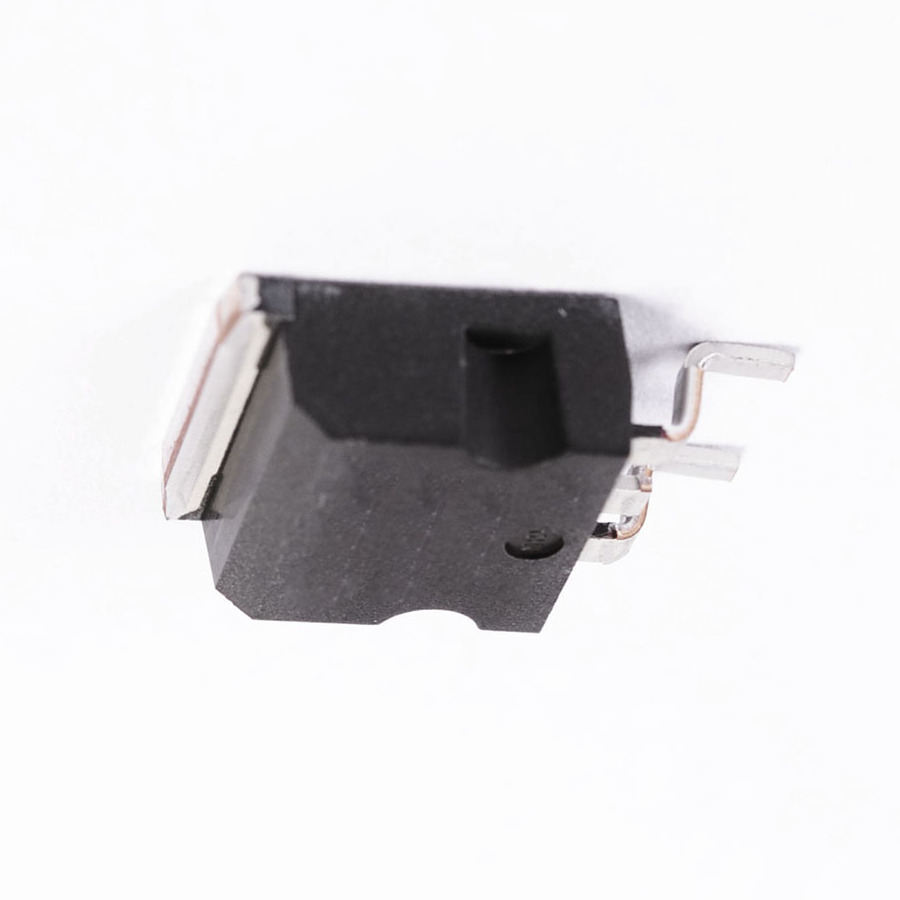

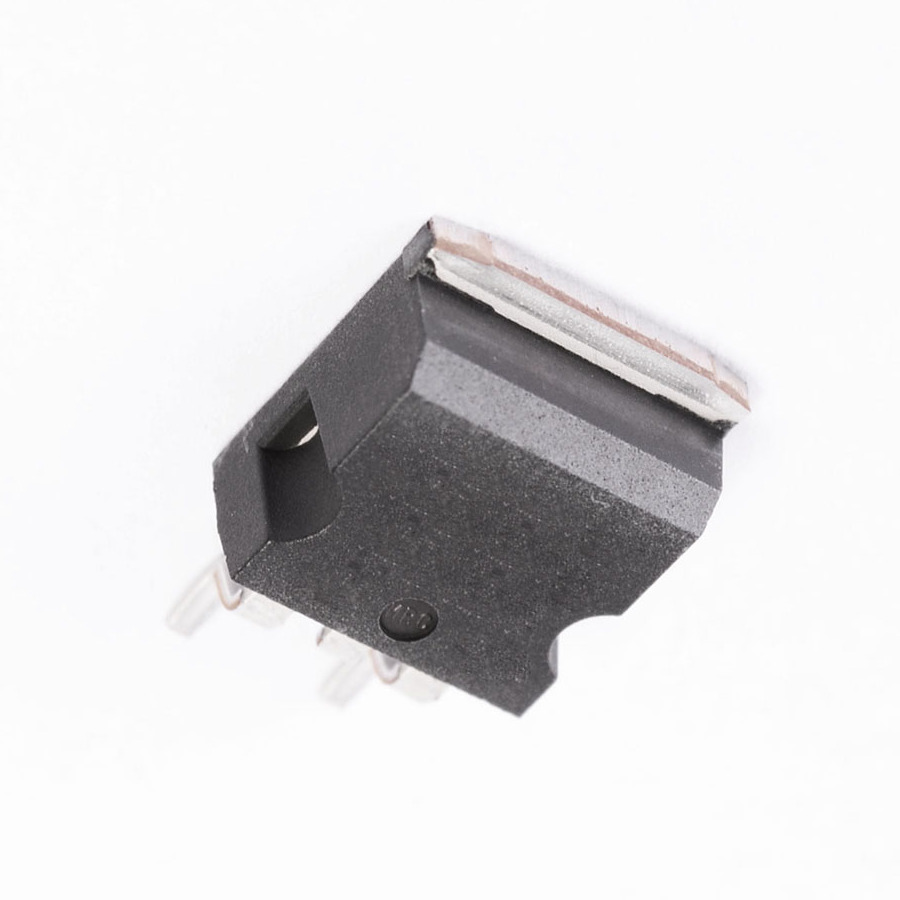

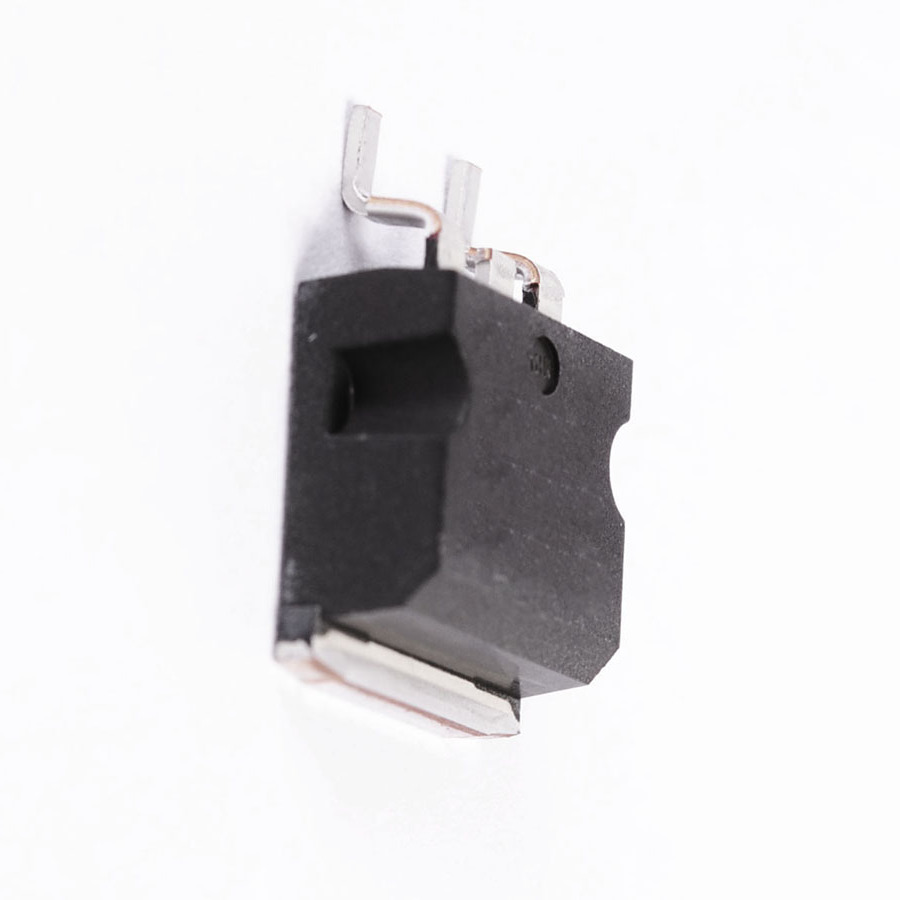

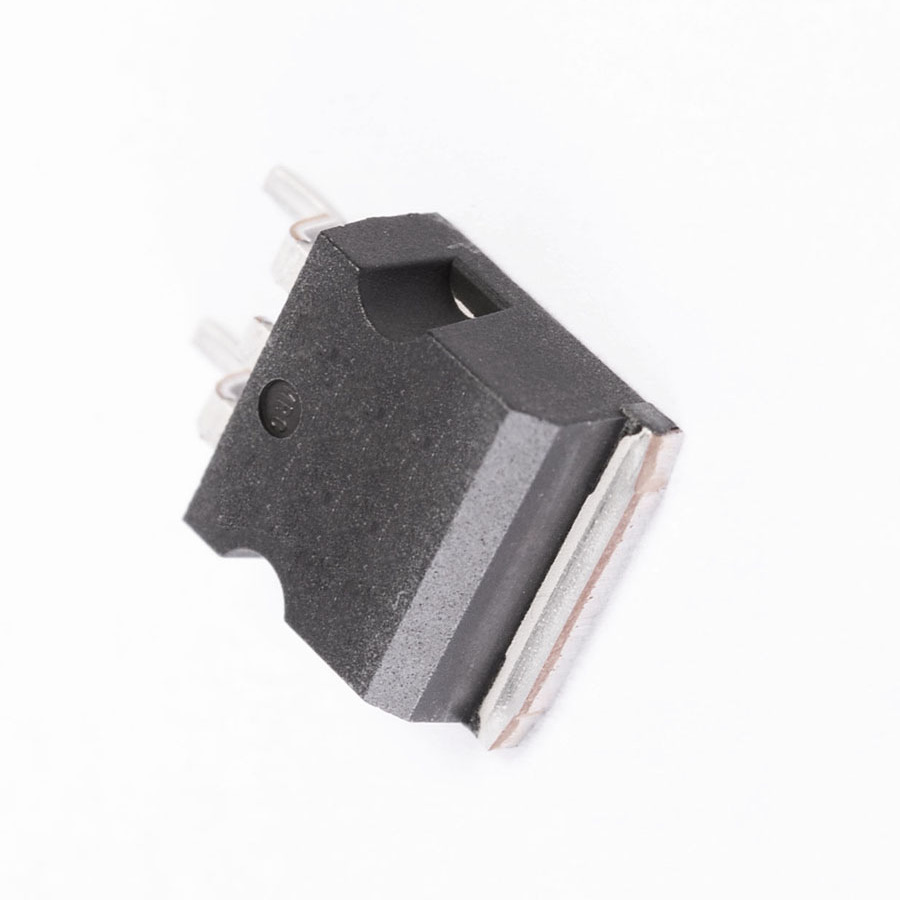

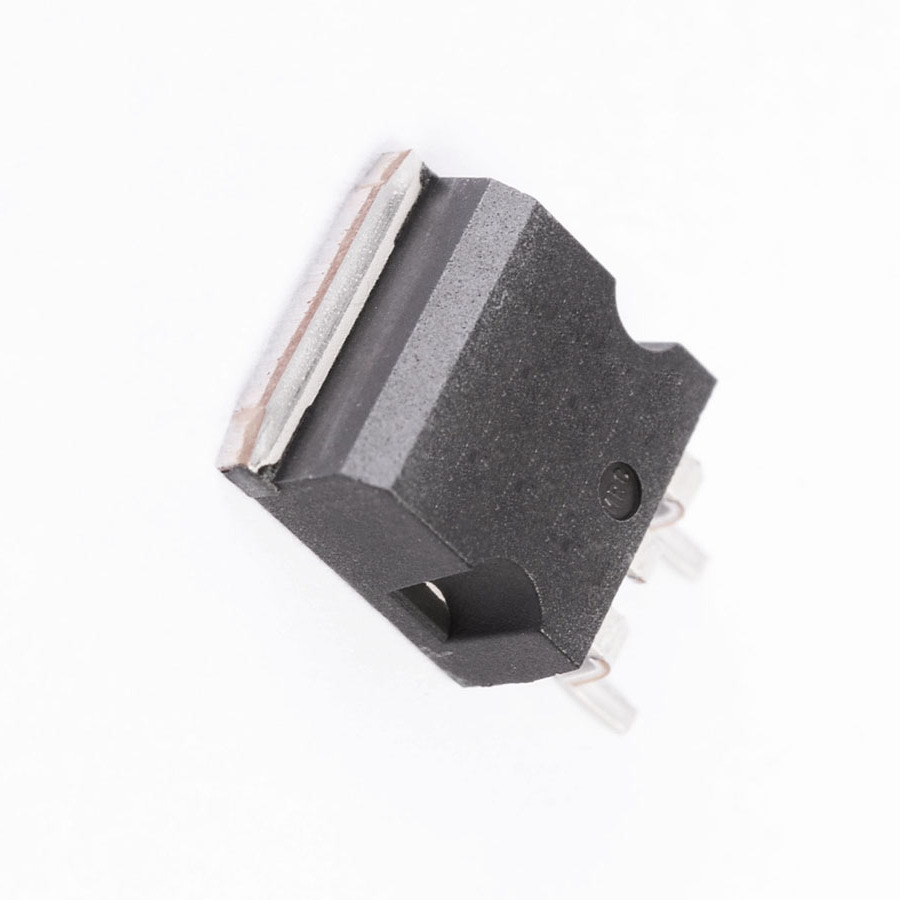

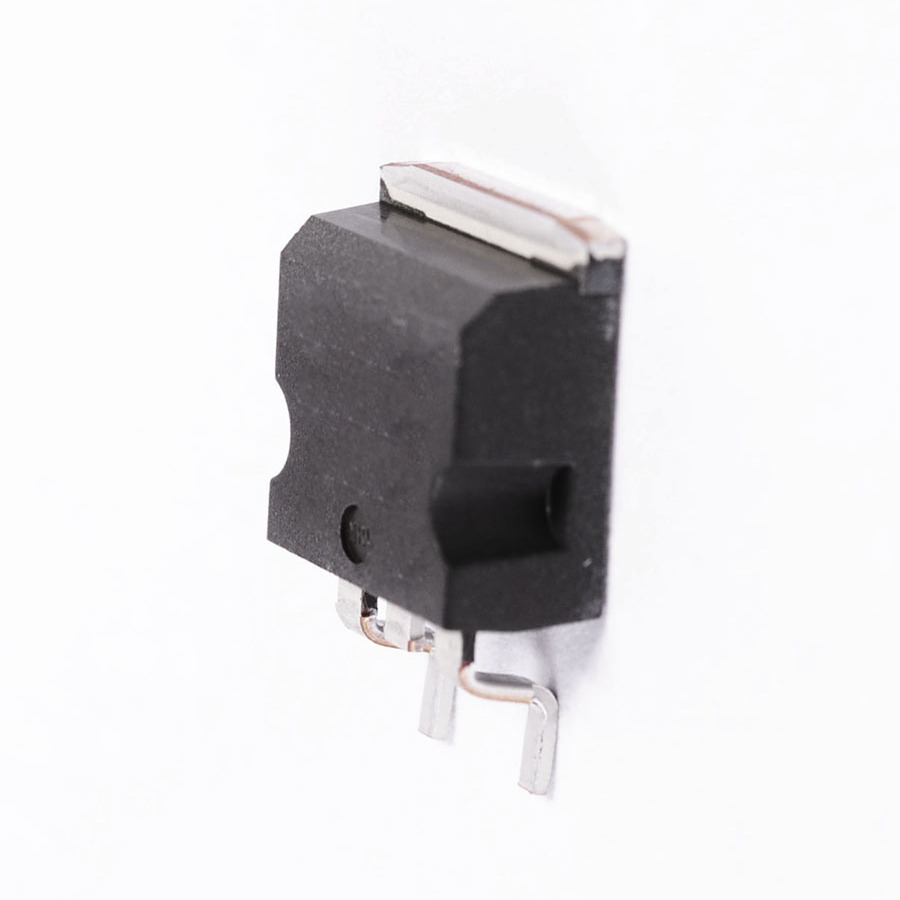

View detailed images (12)

2SB1449

SKU: 2SB1449

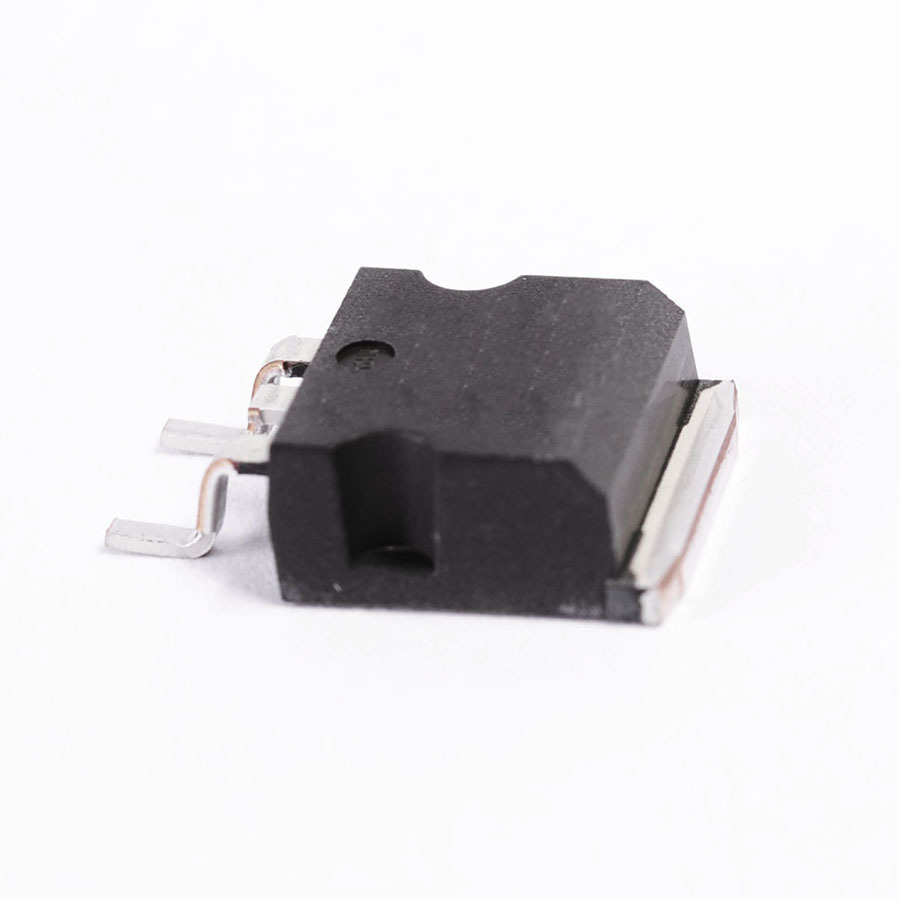

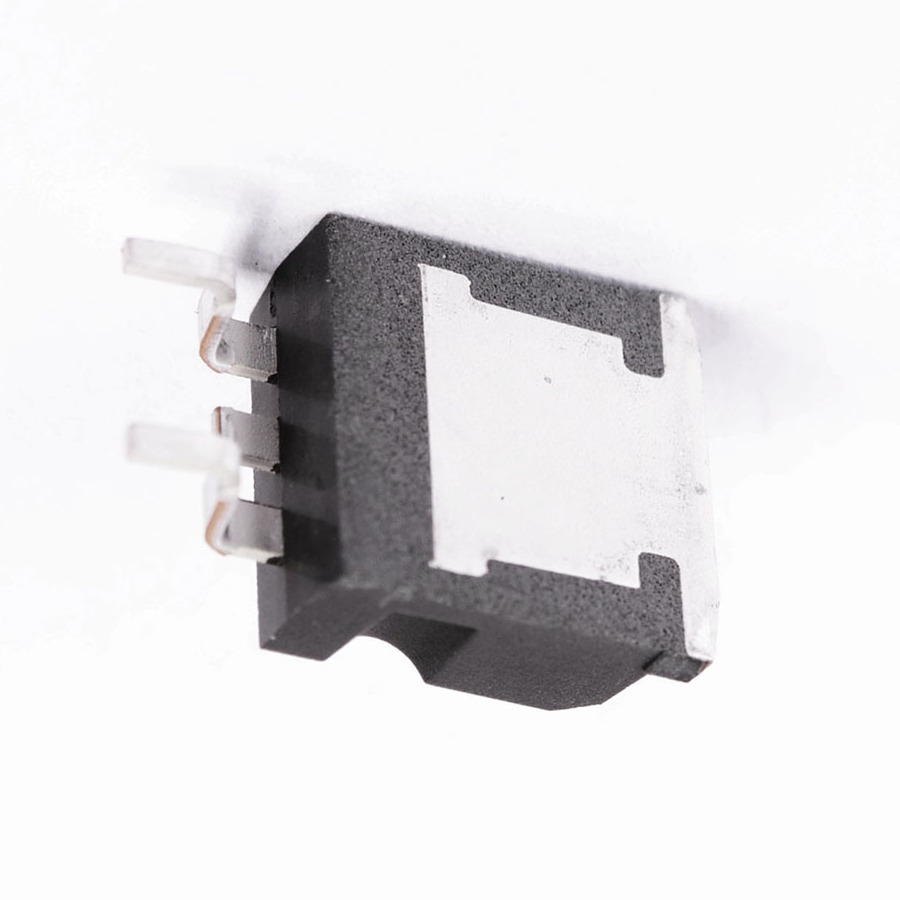

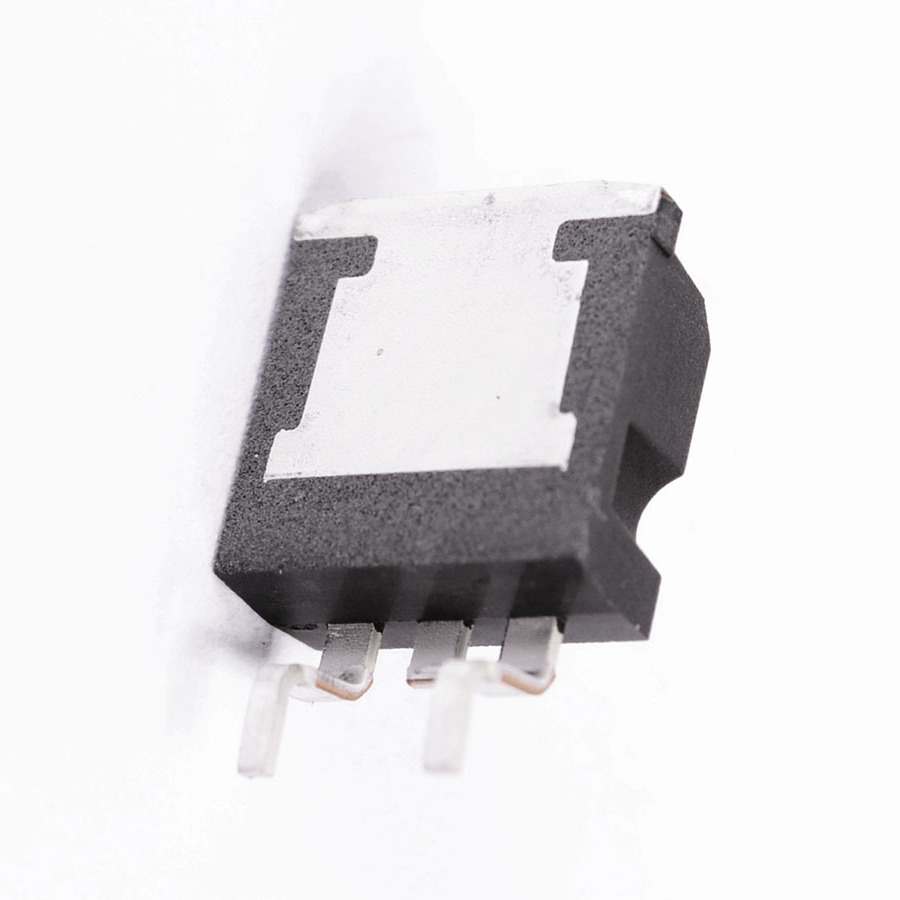

2SB1449 Transistor Silicon PNP - Case: TO263 Make: Sanyo Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 14 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SB1449 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO263
Manufacturer Sanyo Semiconductor
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 30
Derate (Amb) (W/°C) 240m
t(f) Max. (S) 200n-
Max. hFE 280
Min hFE 70
Ic Max. (A) 5.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100u
Polarity PNP
Tr Max. (s) 100n-
Trans. Freq (Hz) Min. 30M
Oper. Temp (°C) Max. 150
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 240
SKU 343531
