2SB954
View detailed images (12)

2SB954

SKU: 2SB954

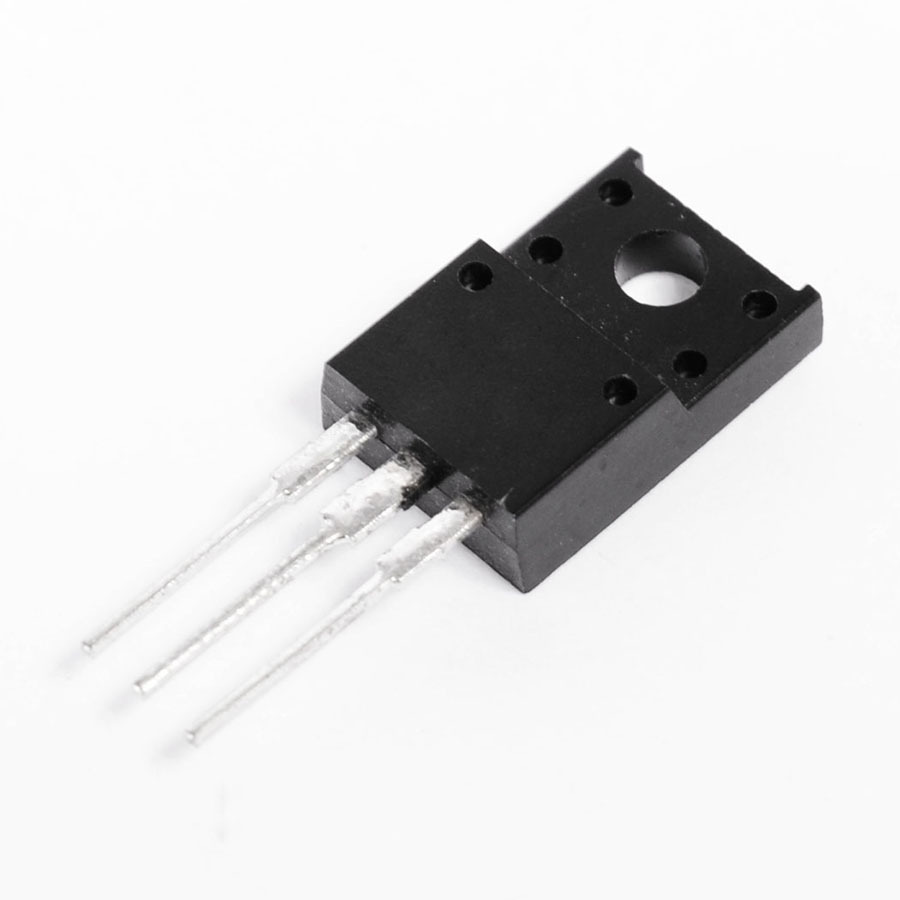

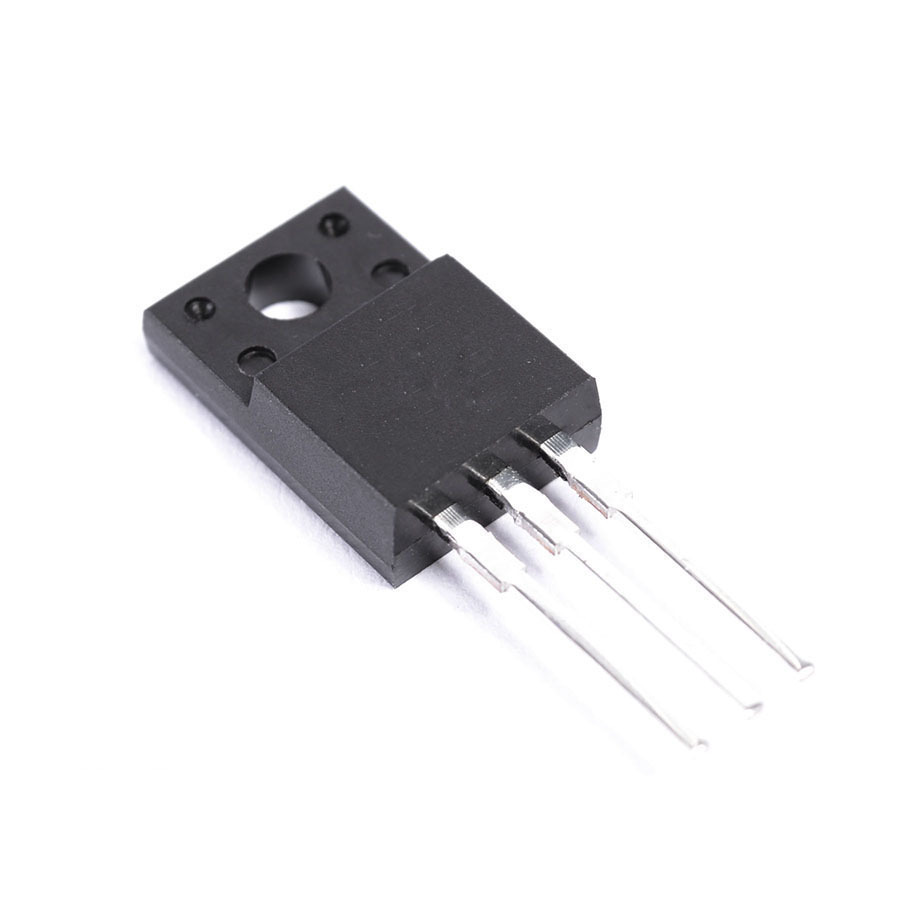

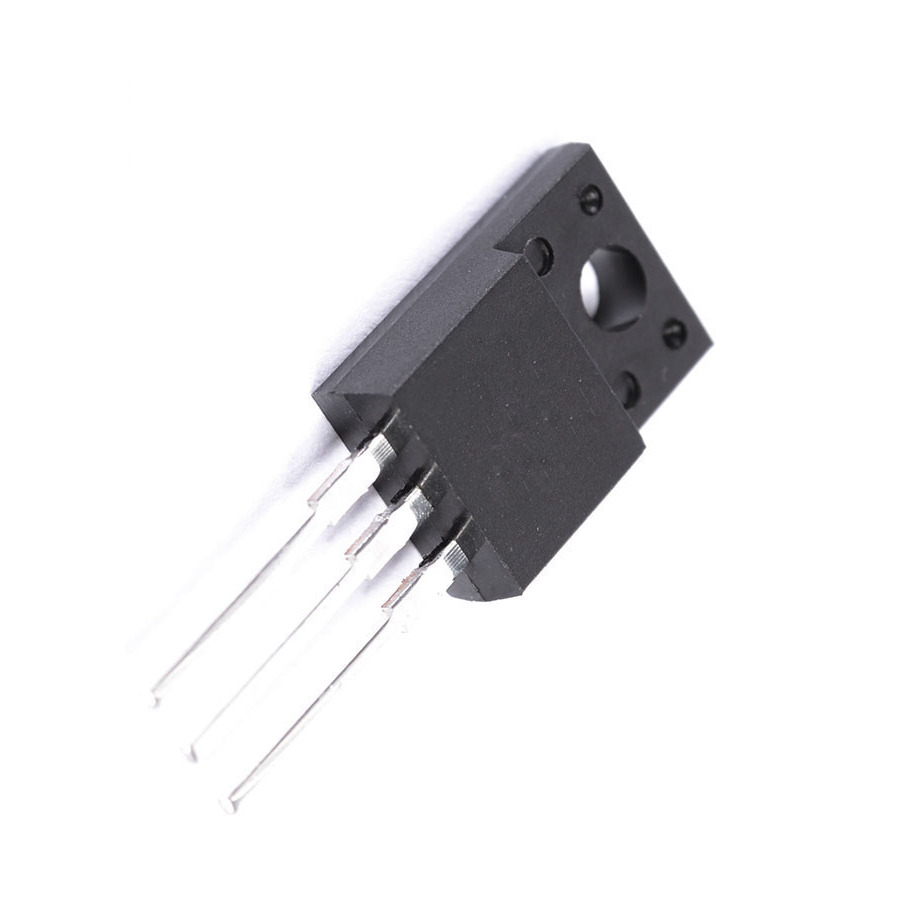

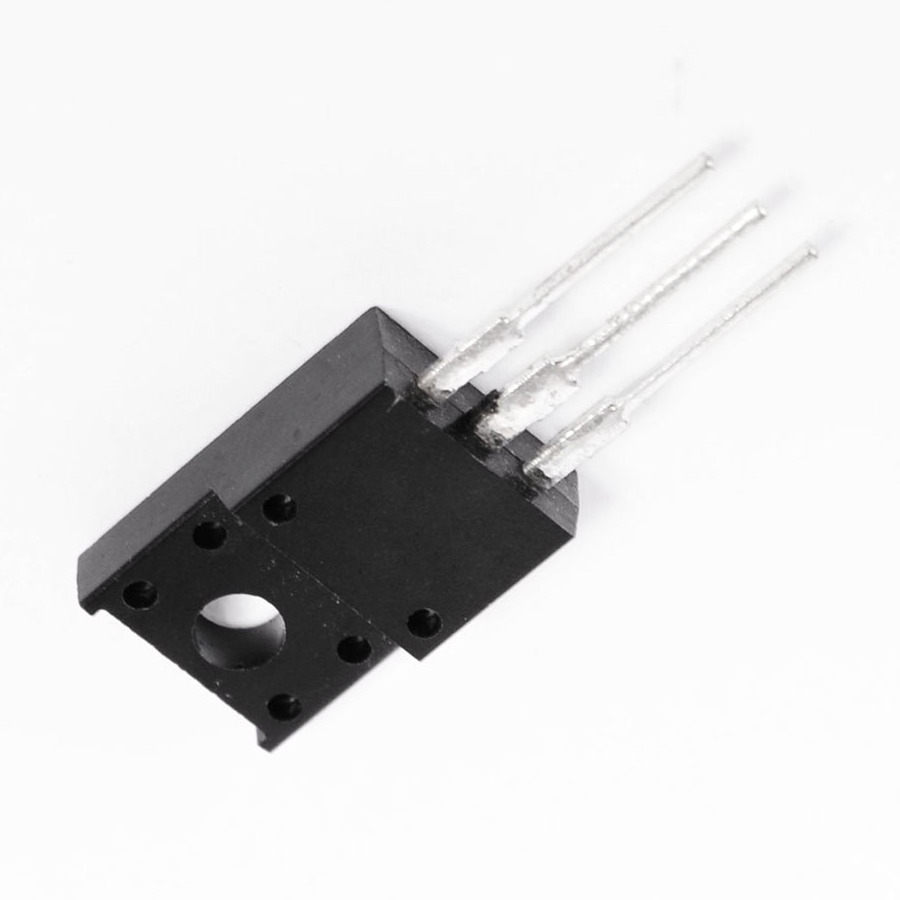

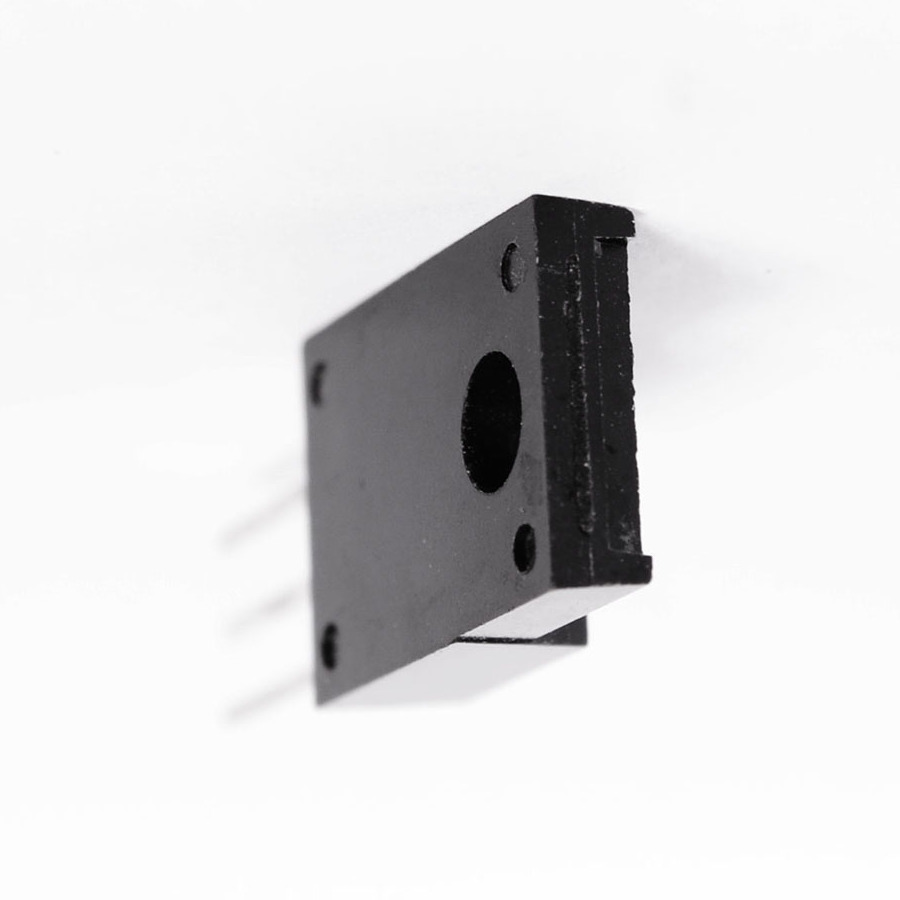

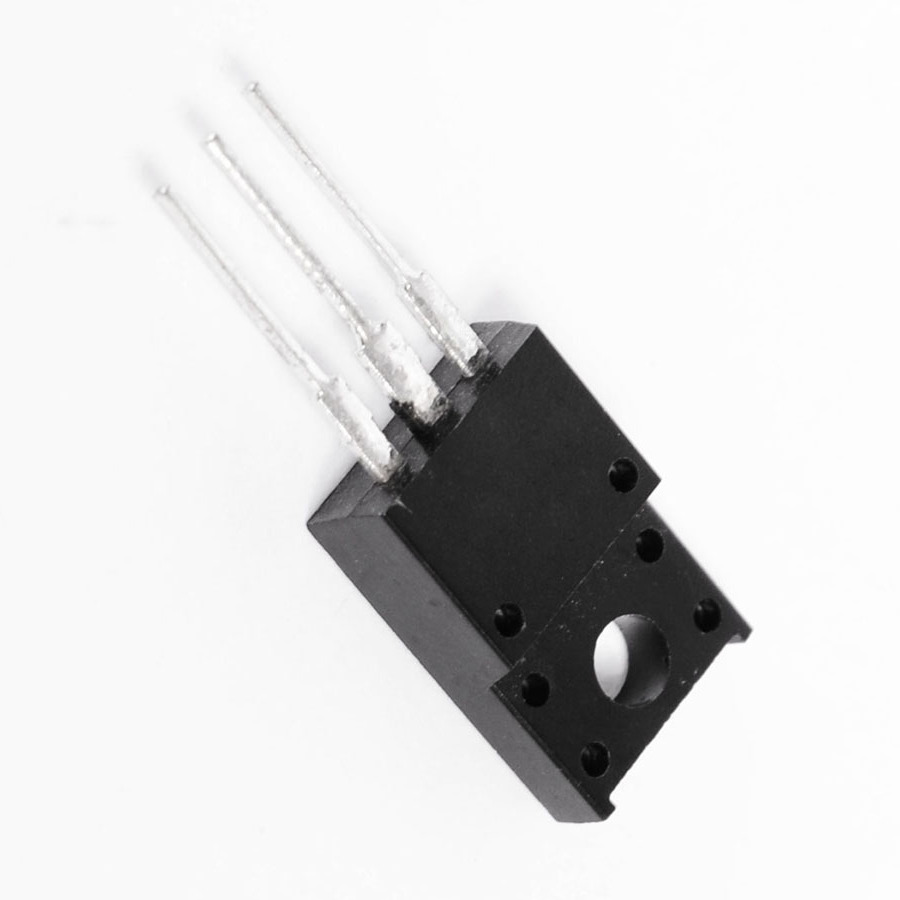

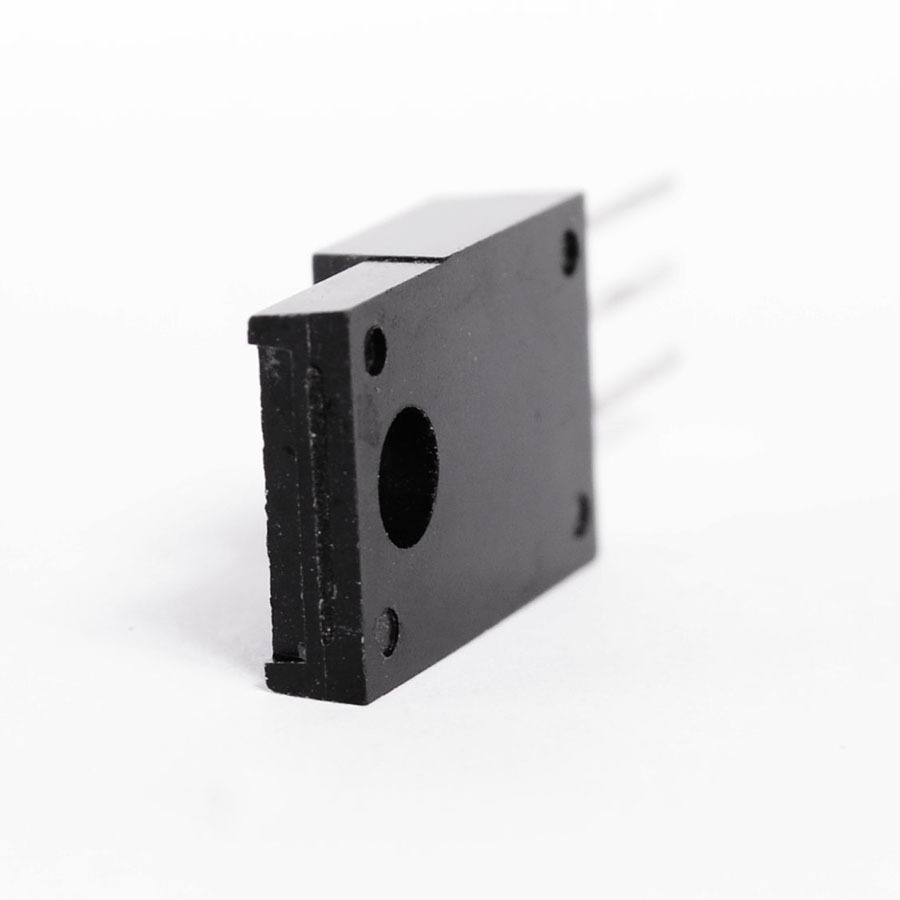

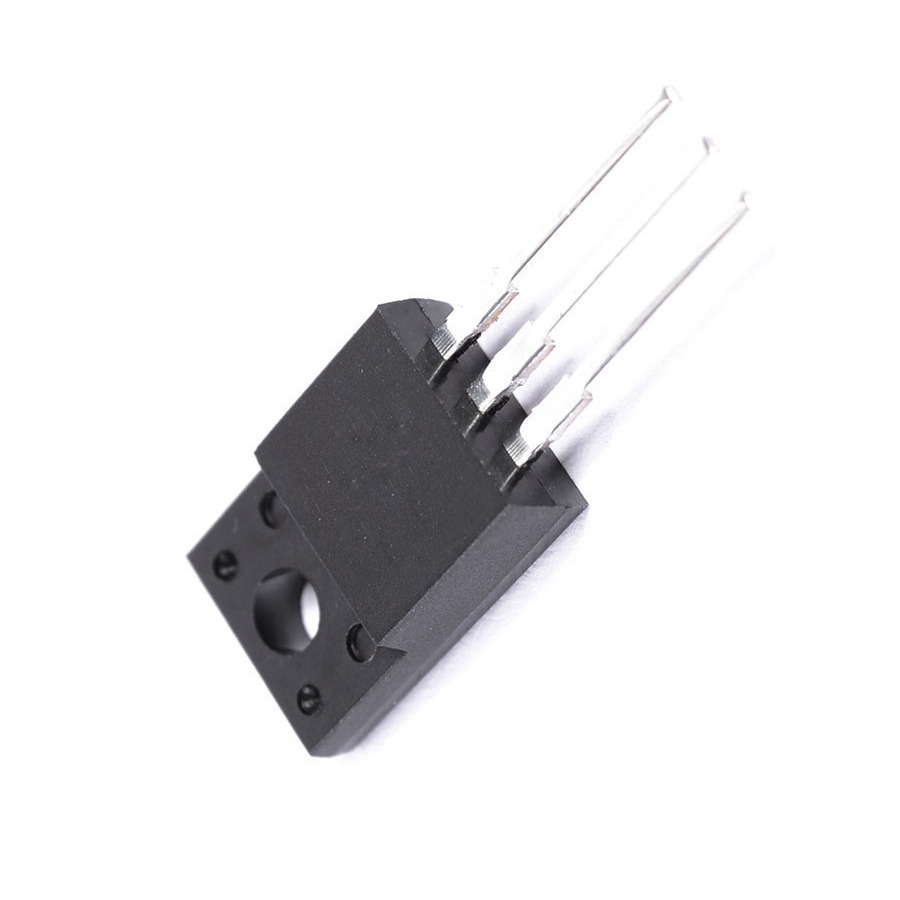

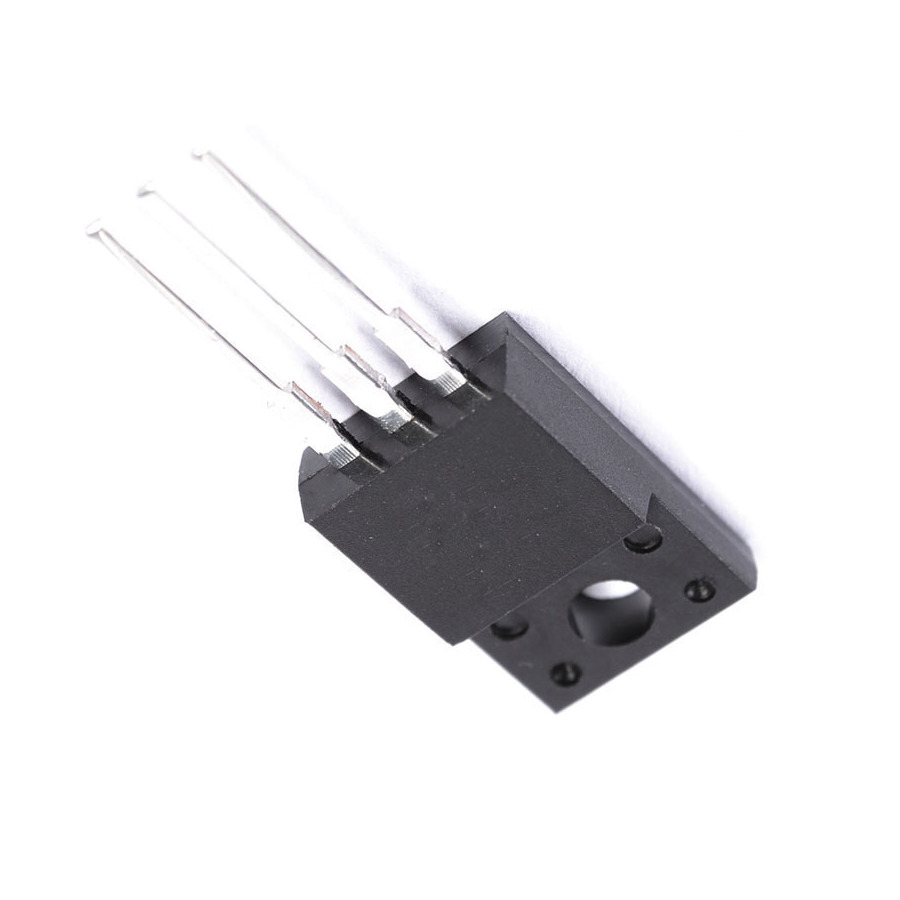

2SB954 Transistor Silicon PNP CASE: SOT186 MAKE: Matsushita Electronics
Datasheet
2SB954 Datasheet
Product specifications
Equivalent 2SB954A
Type Transistor Silicon PNP
Case SOT186
Manufacturer Matsushita Electronics
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 30
Derate (Amb) (W/°C) 280m
Max. hFE 450
Min hFE 40
Ic Max. (A) 1.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 300u
Polarity PNP
Tr Max. (s) 1.2u
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 343756
