2SB954A
View detailed images (12)

2SB954A

SKU: 2SB954A

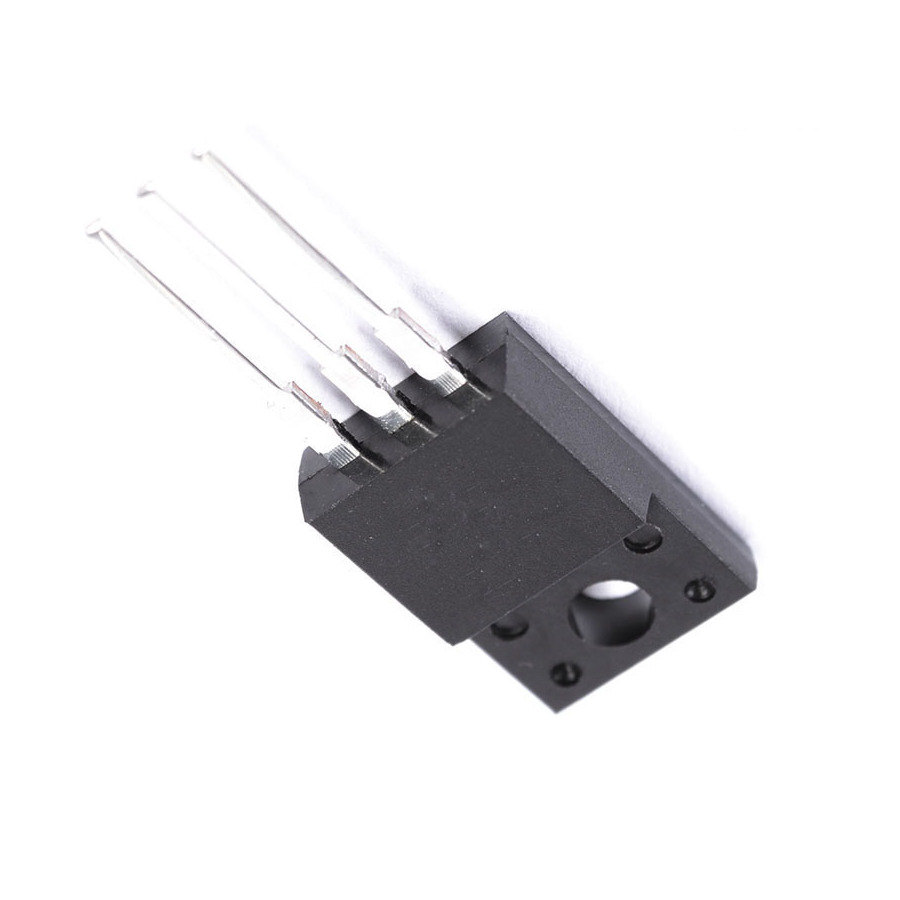

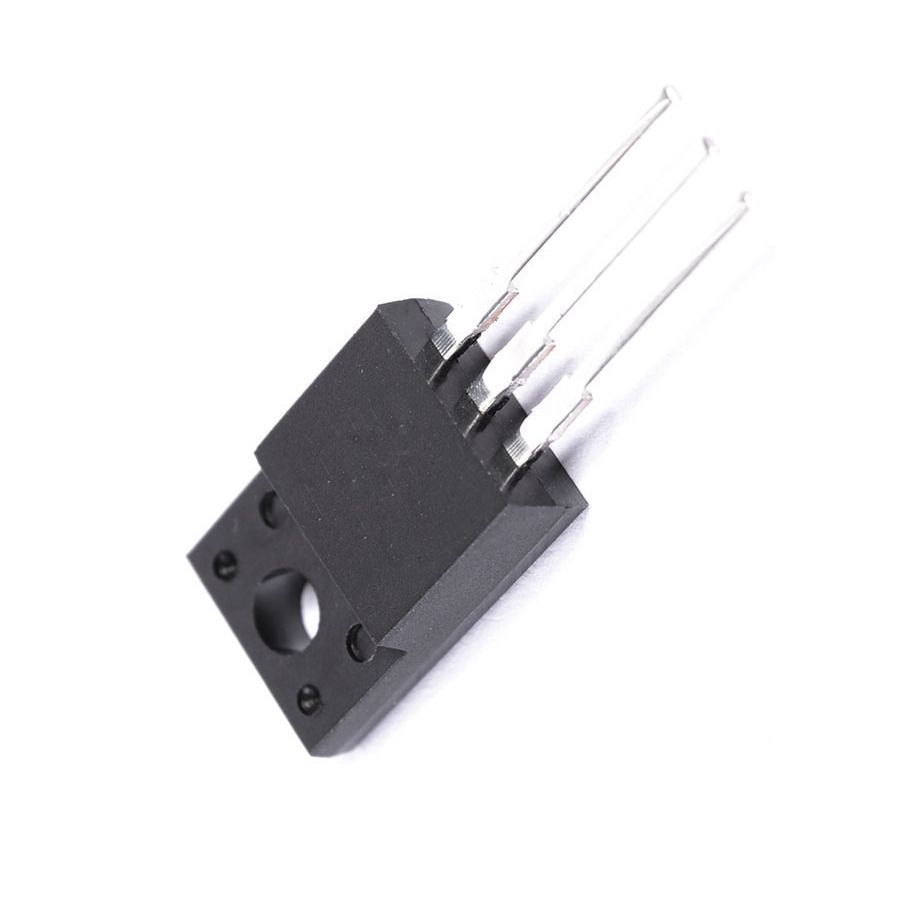

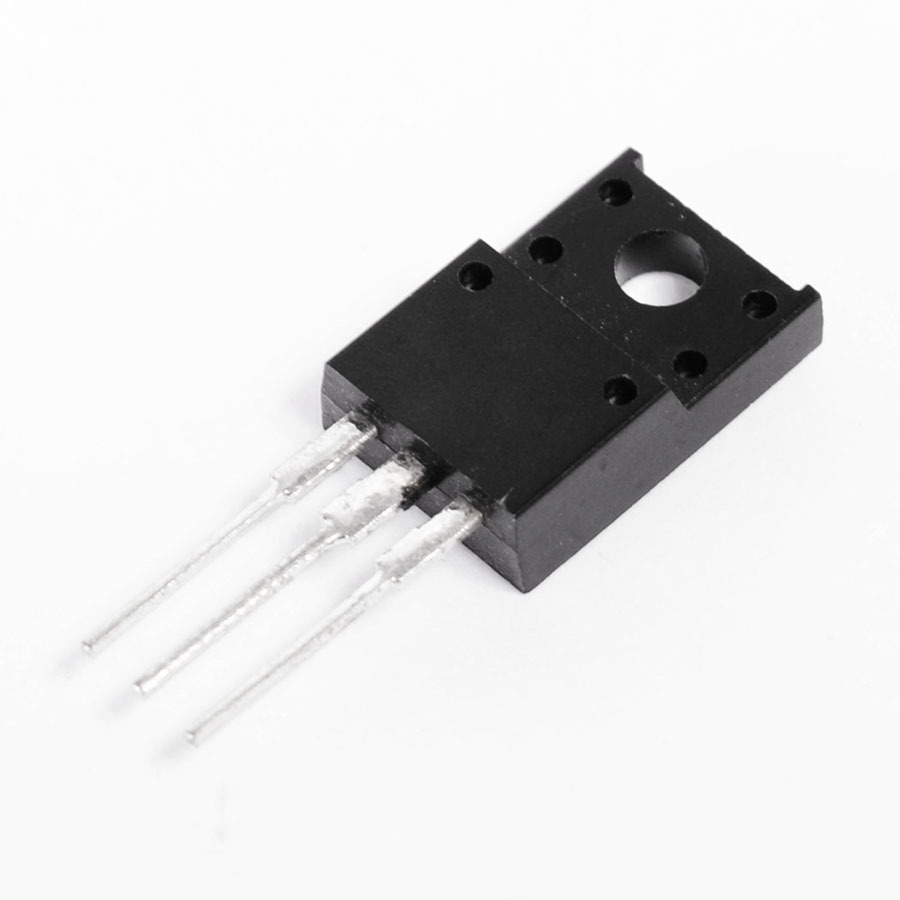

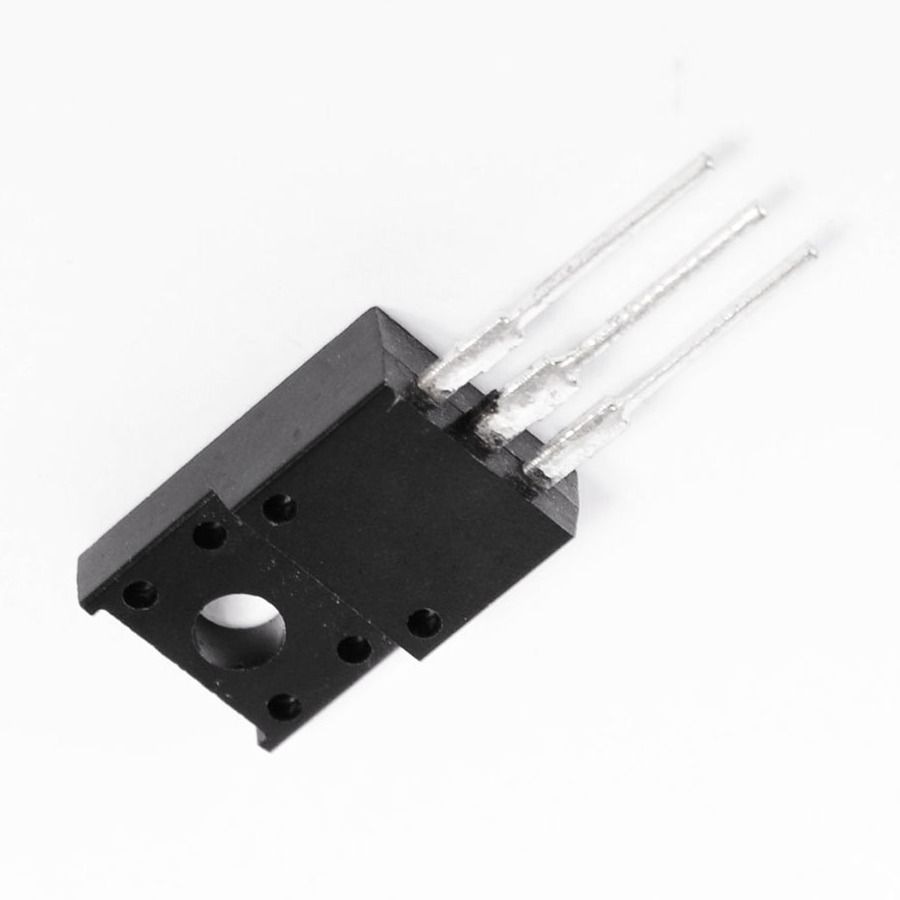

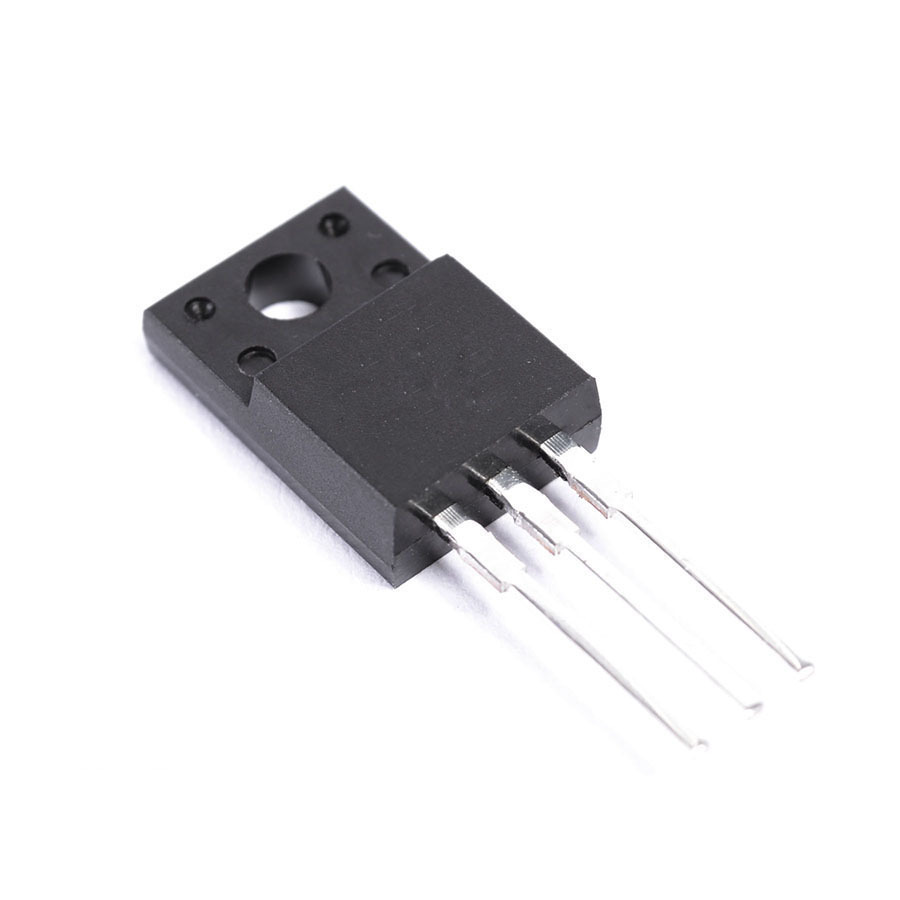

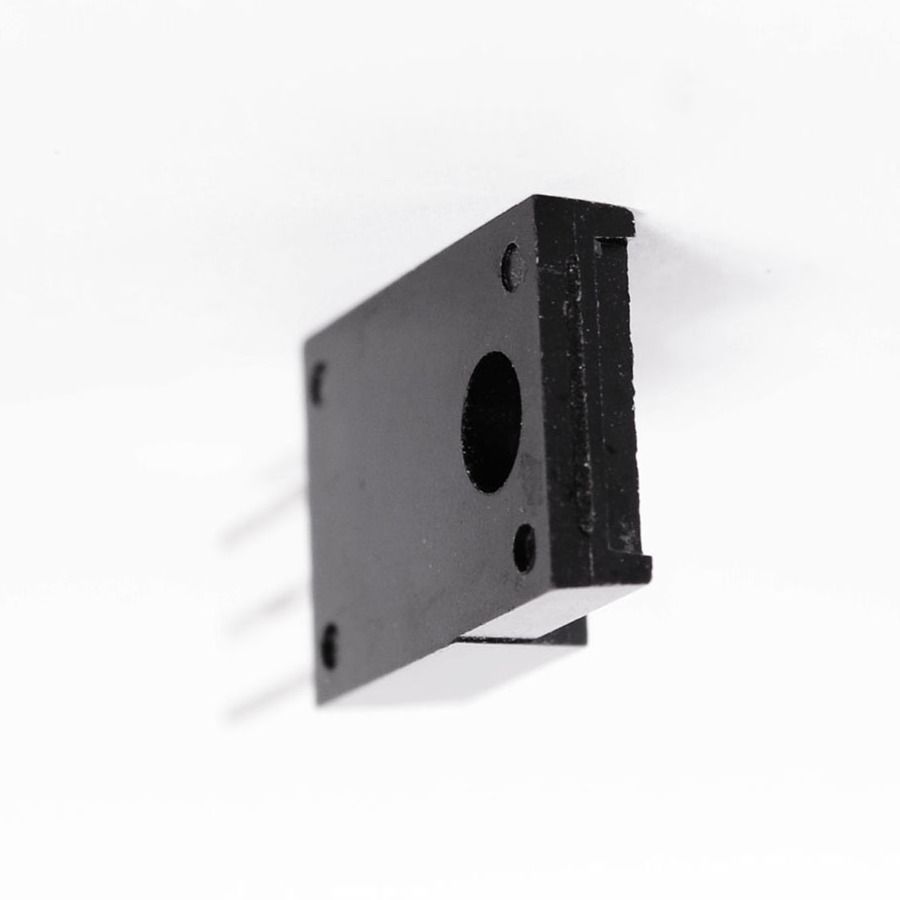

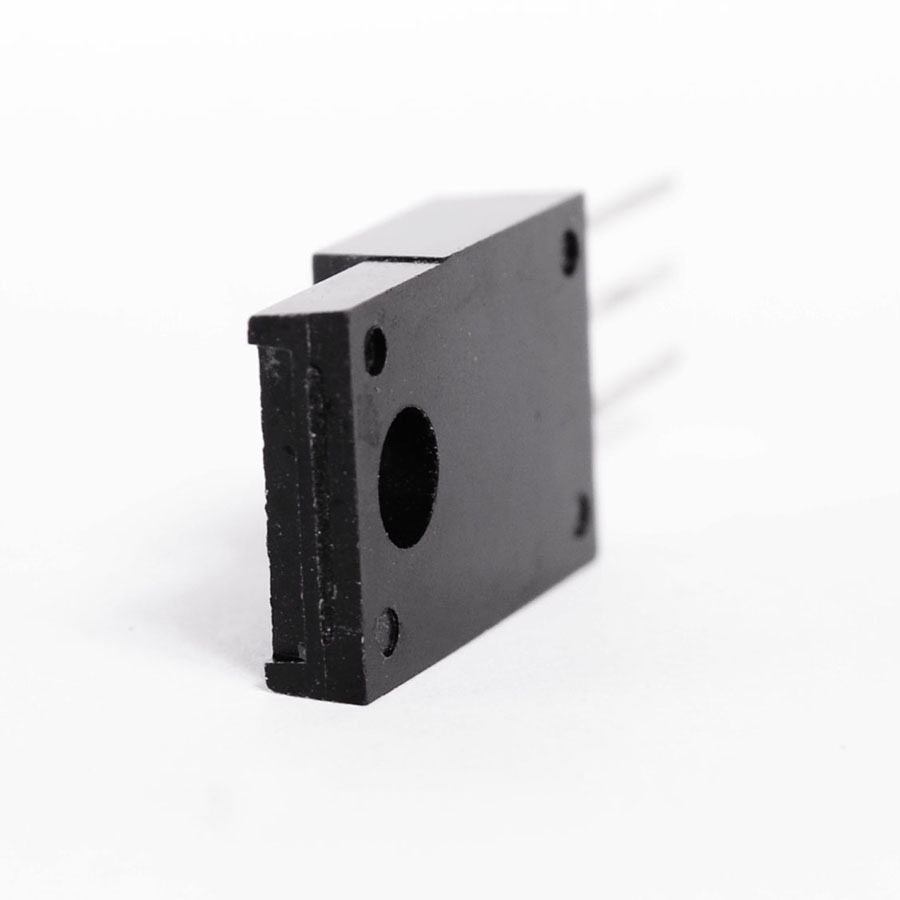

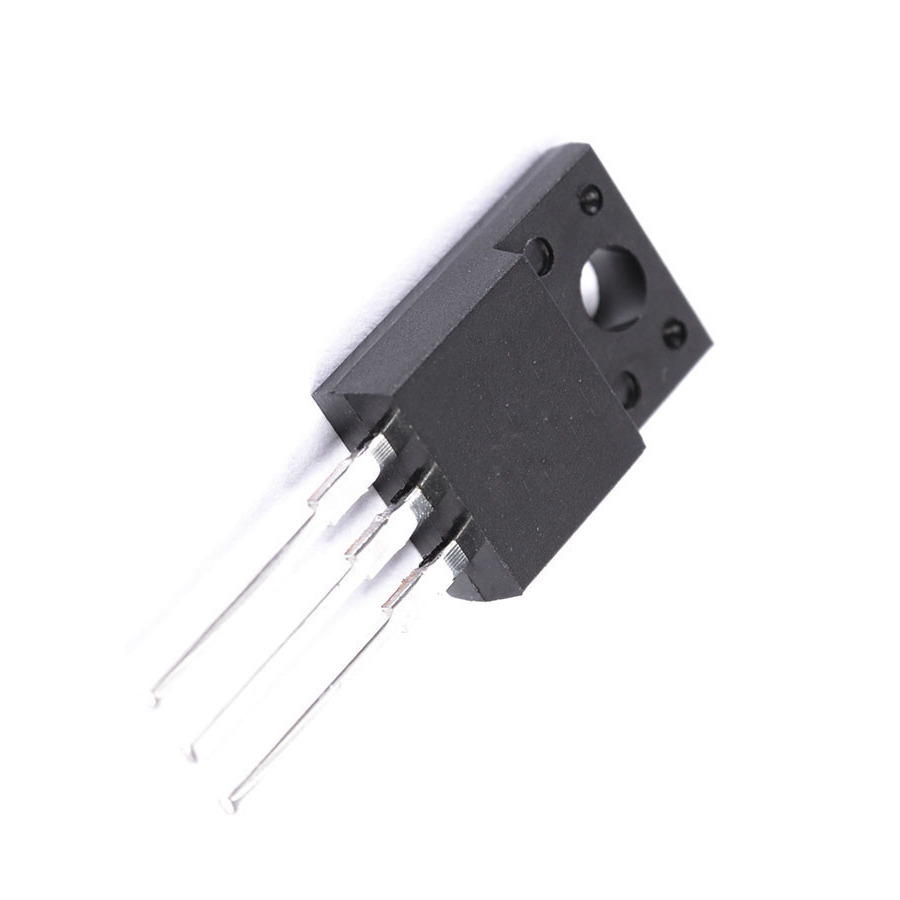

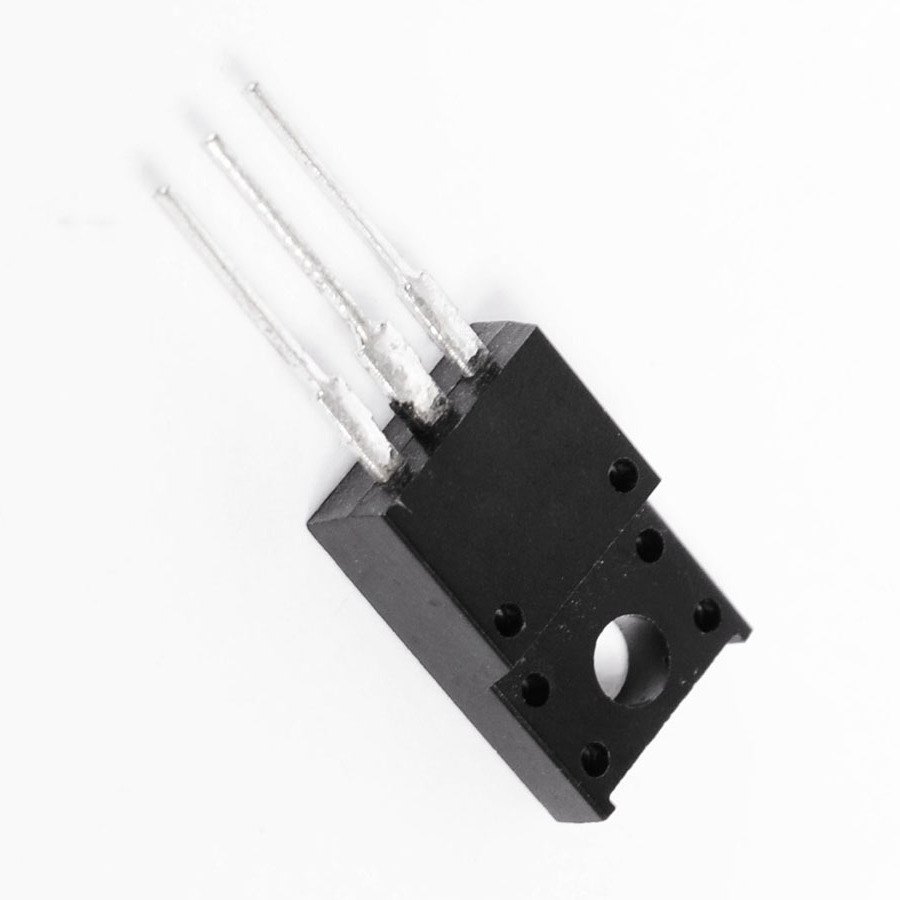

2SB954A Transistor Silicon PNP CASE: SOT186 MAKE: Matsushita Electronics
Datasheet
2SB954A Datasheet
Product specifications
Equivalent 2SB954
Type Transistor Silicon PNP
Case SOT186
Manufacturer Matsushita Electronics
Vbr CBO 80
Vbr CEO 80
Max. PD (W) 30
Derate (Amb) (W/°C) 280m
Max. hFE 450
Min hFE 40
Ic Max. (A) 1.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 300u
Polarity PNP
Tr Max. (s) 1.2u
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 343757
