2SD1314

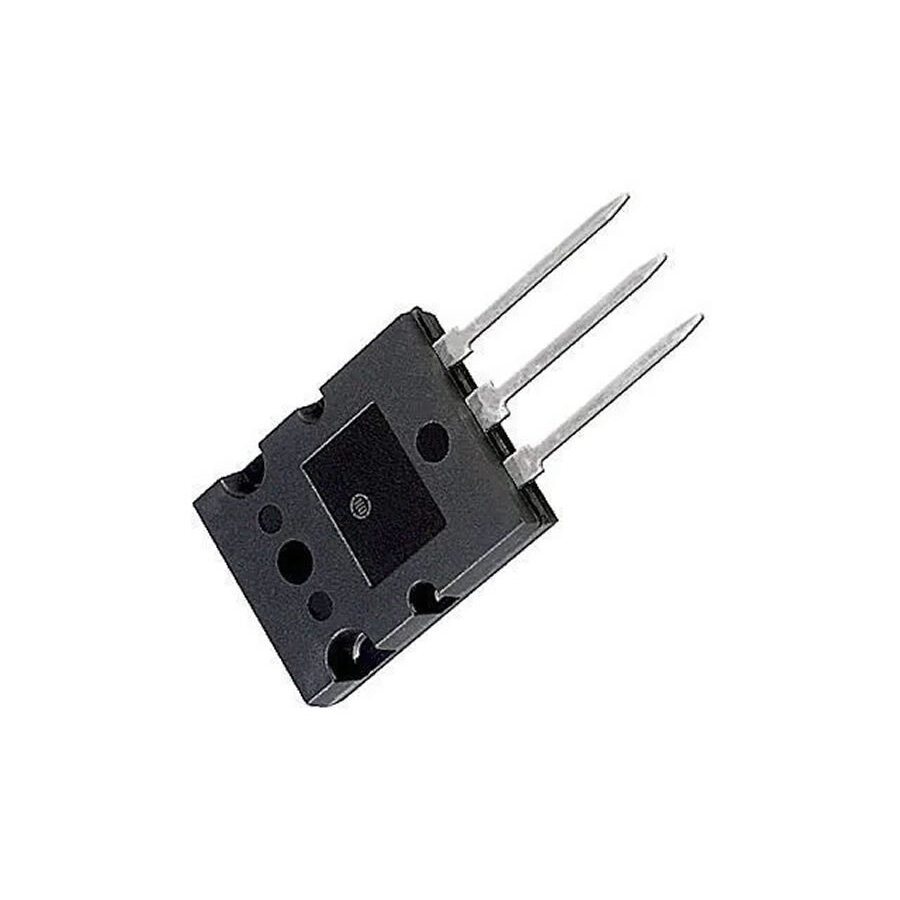

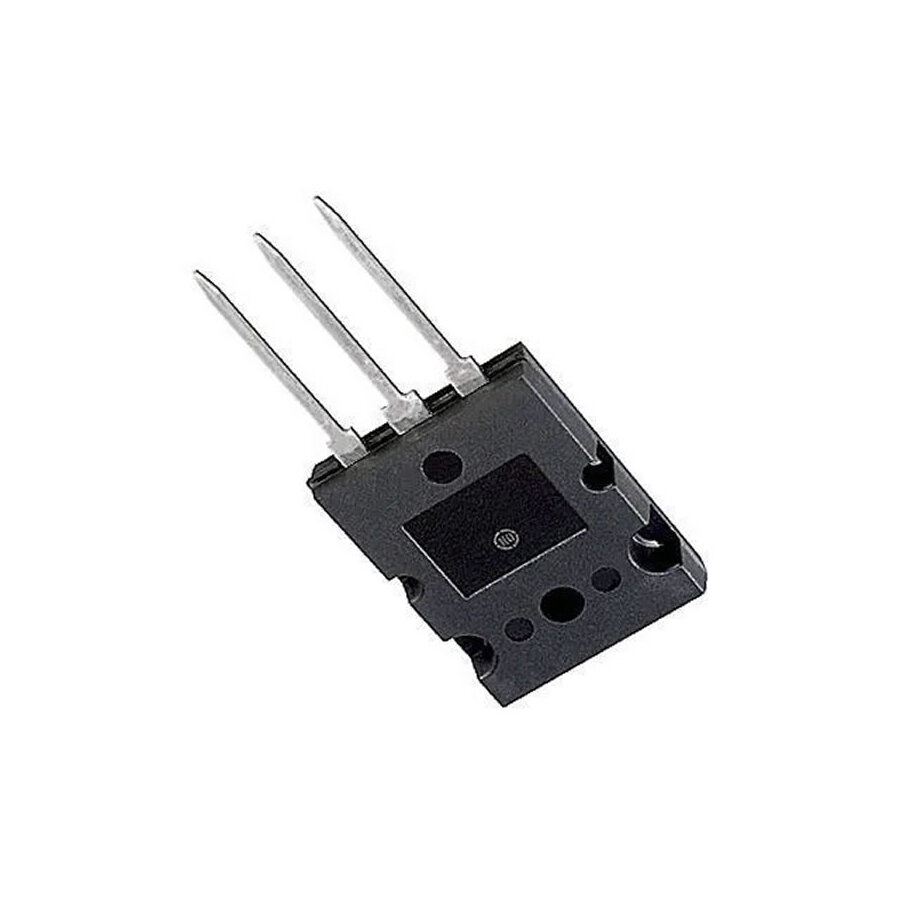

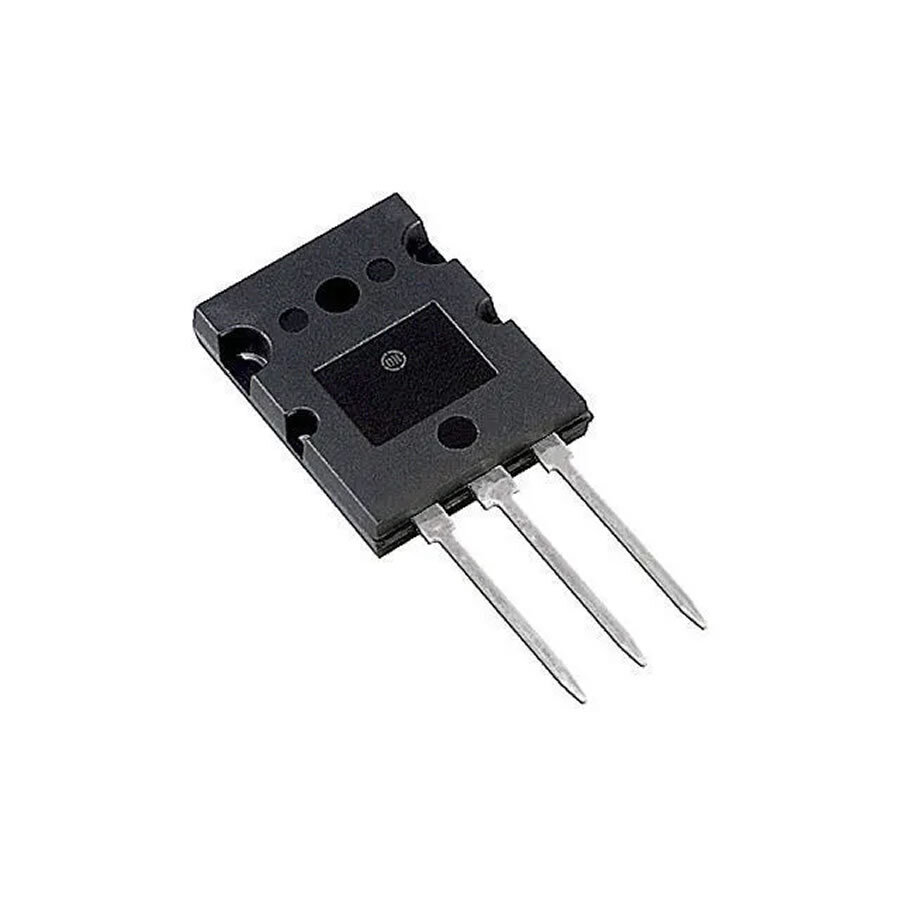

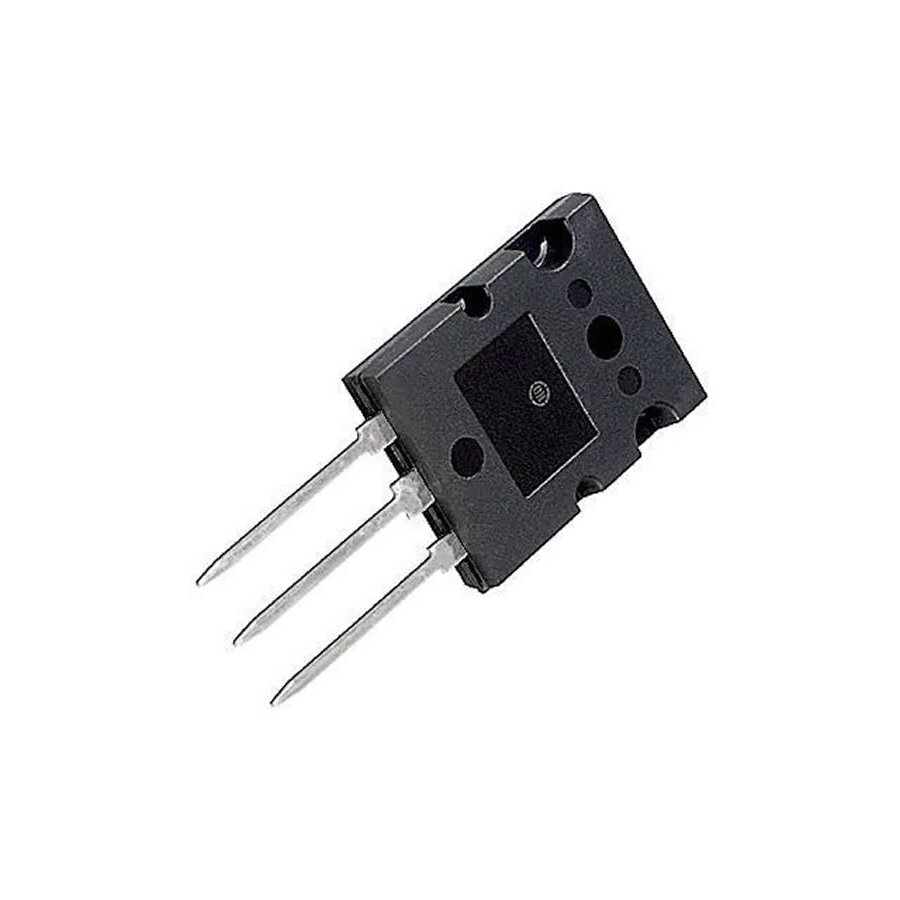

View detailed images (4)

2SD1314

SKU: 2SD1314
2SD1314 Transistor Silicon NPN CASE: SOT430 MAKE: Toshiba
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SD1314 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT430
Manufacturer Toshiba
Vbr CEO 450
Max. PD (W) 150
Min hFE 100
Ic Max. (A) 15
@Ic (test) (A) 15
Icbo Max. @Vcb Max. (A) 1.0m
Mat. Silicon Logic
Polarity NPN
@VCE (test) 5.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 150 pF
Forward Current Transfer Ratio (hFE), MIN 100
SKU 345417
