2SD1416
View detailed images (12)

2SD1416

SKU: 2SD1416

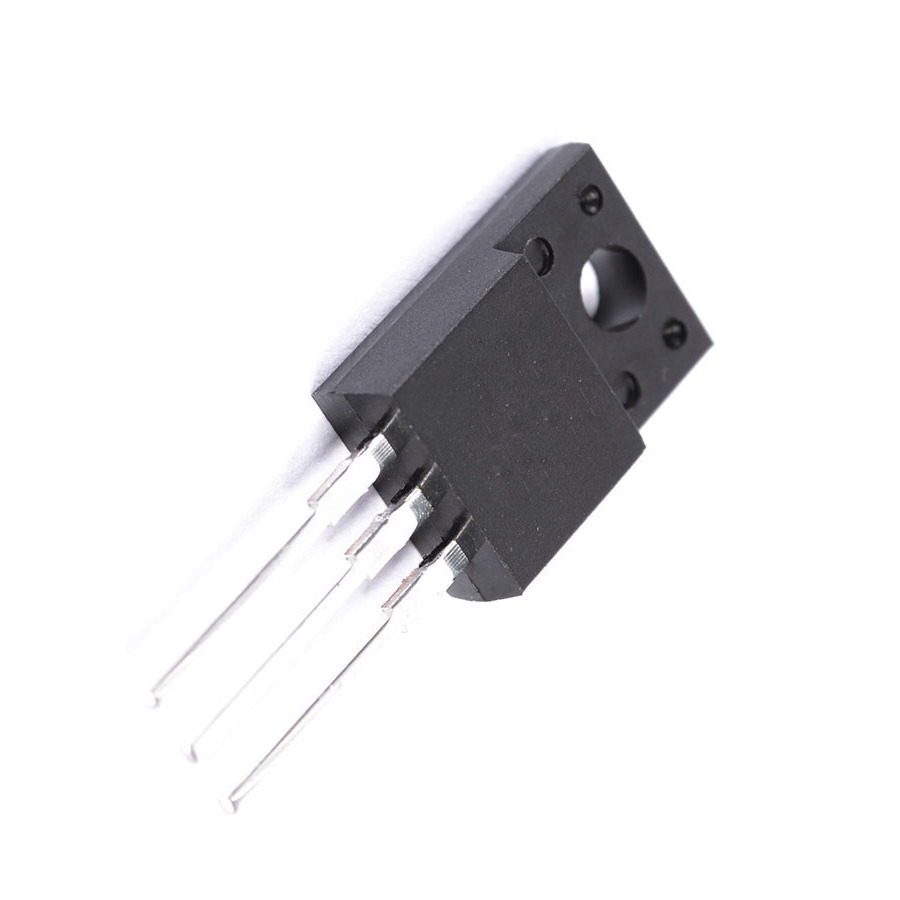

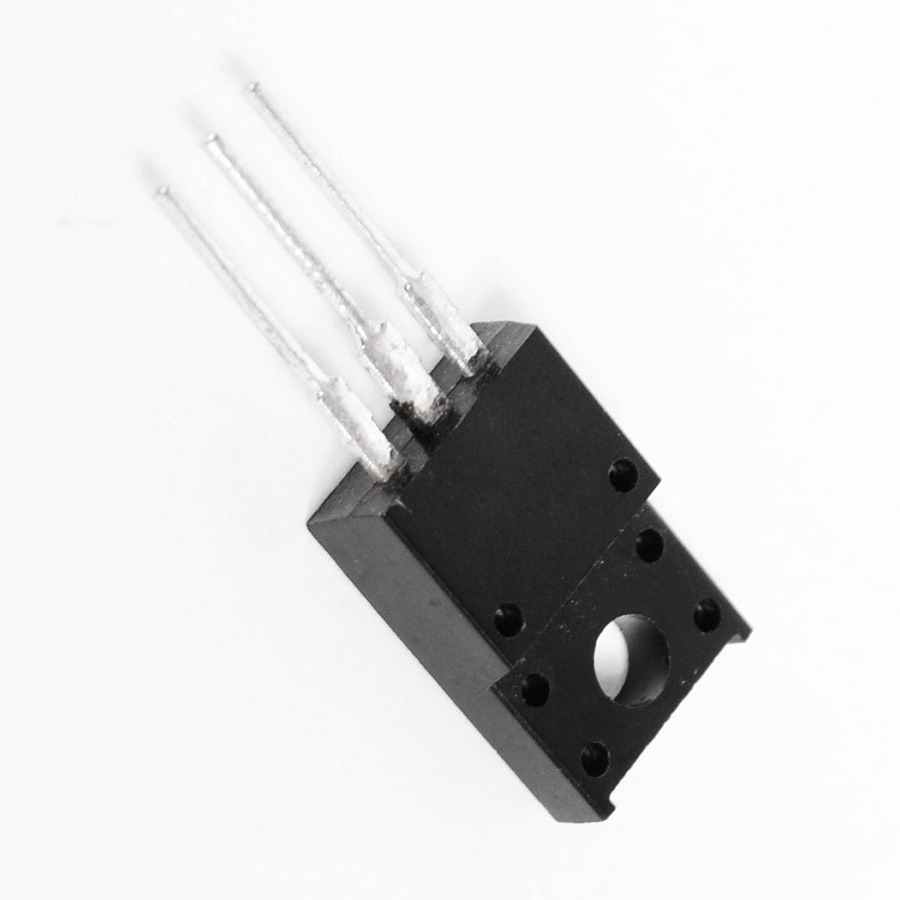

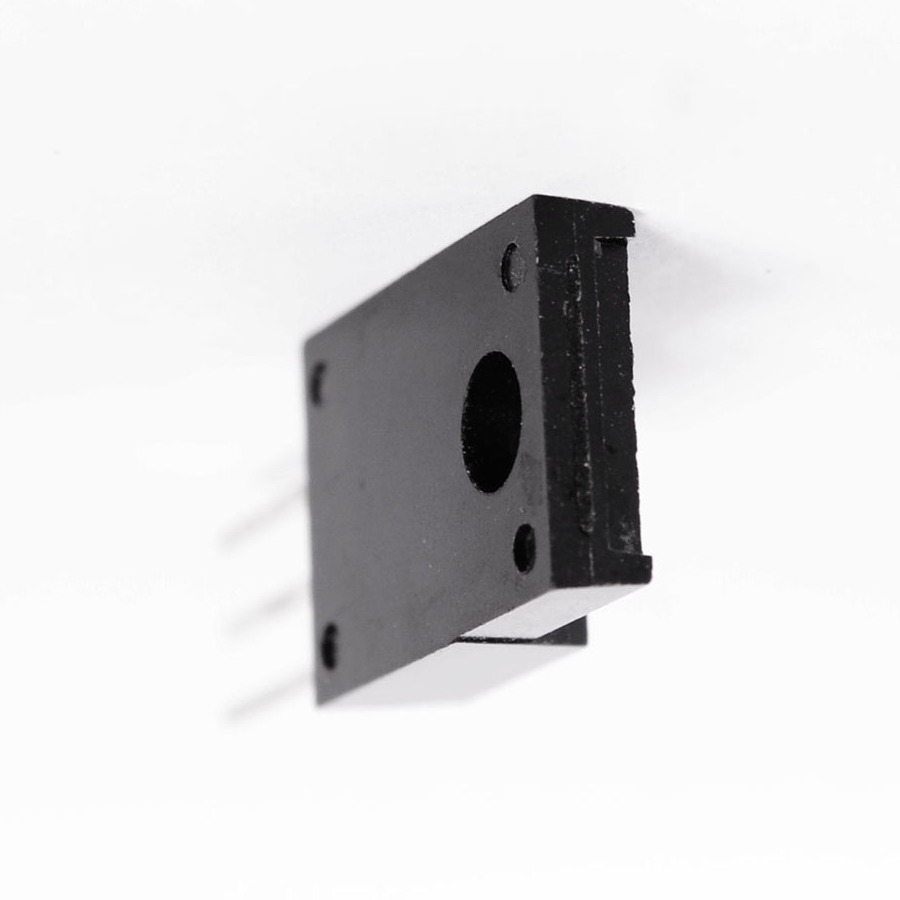

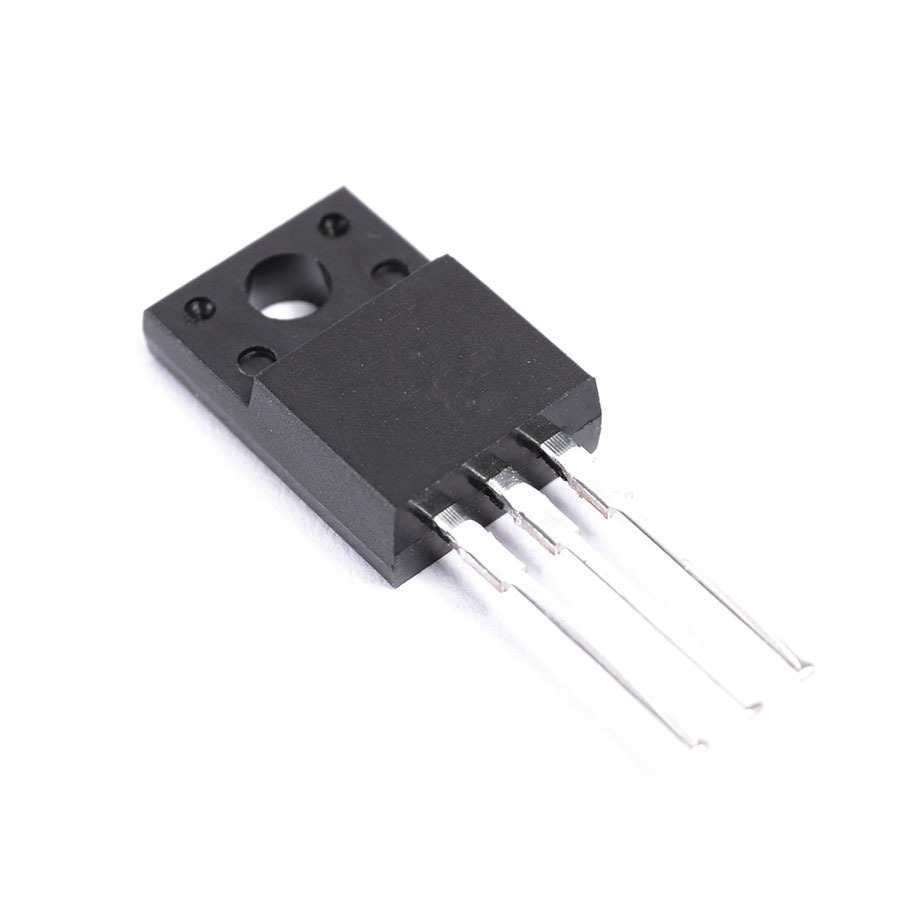

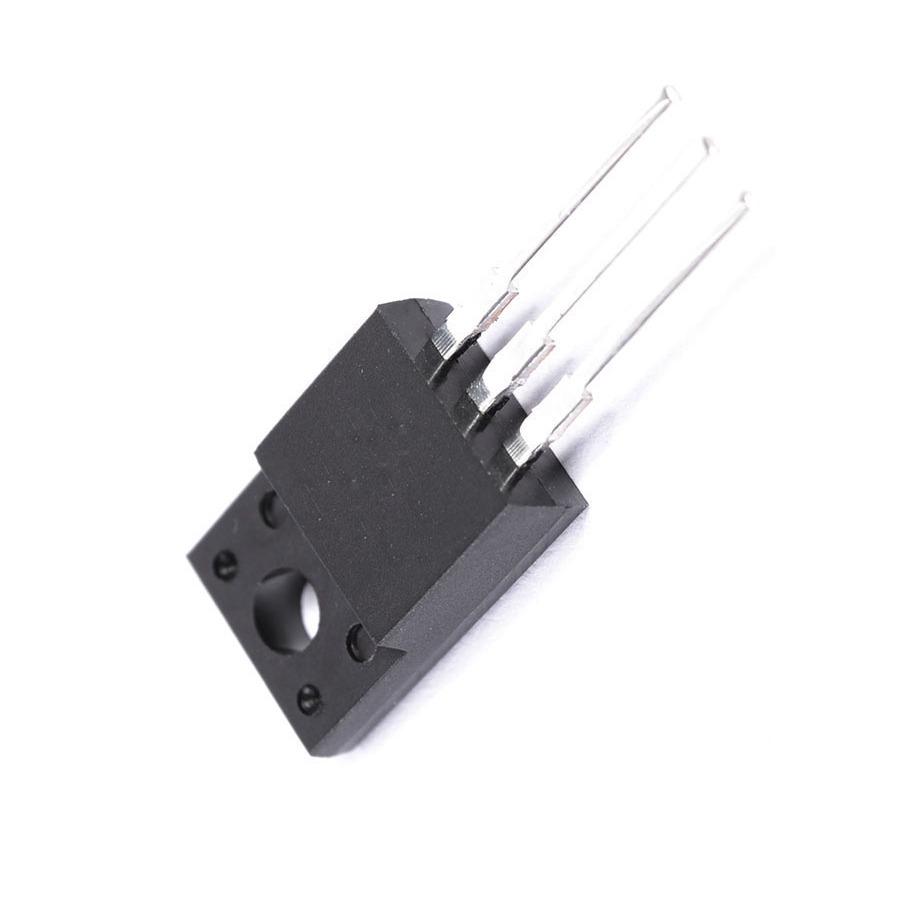

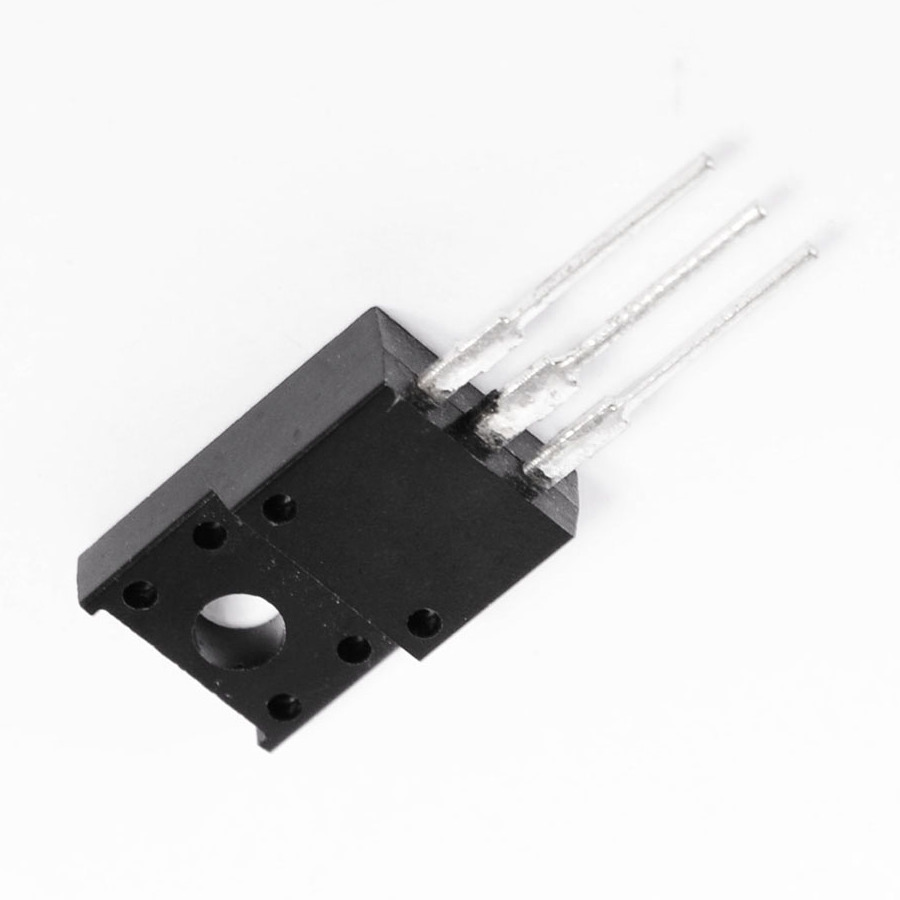

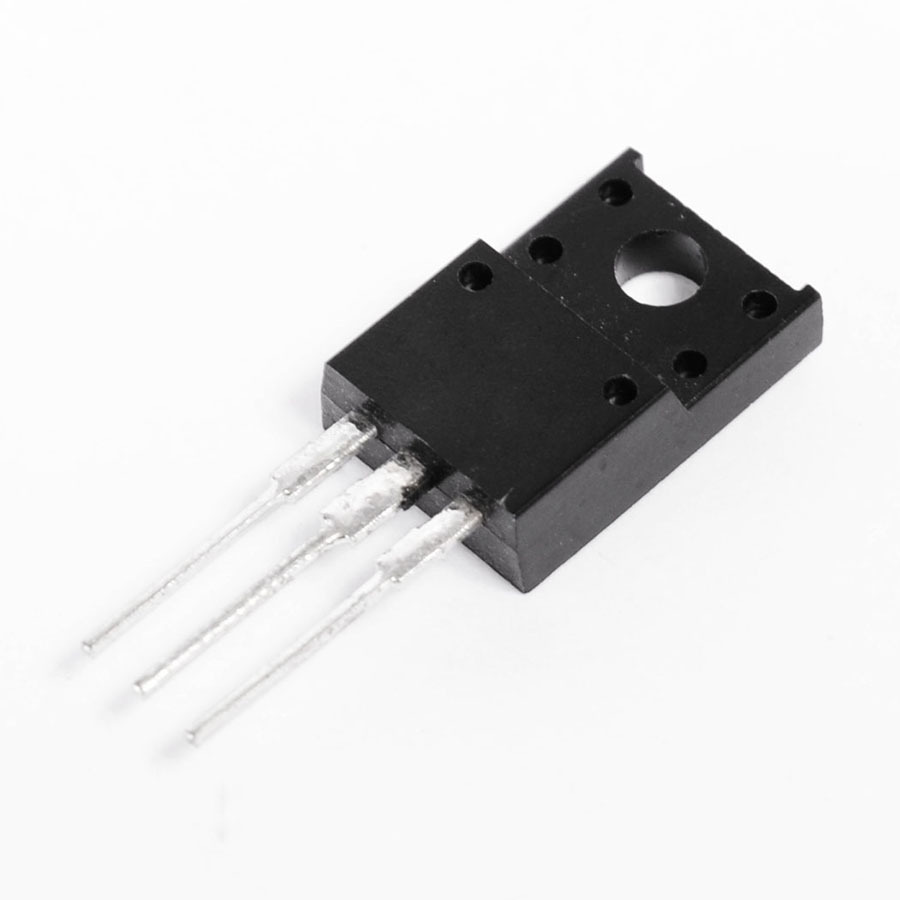

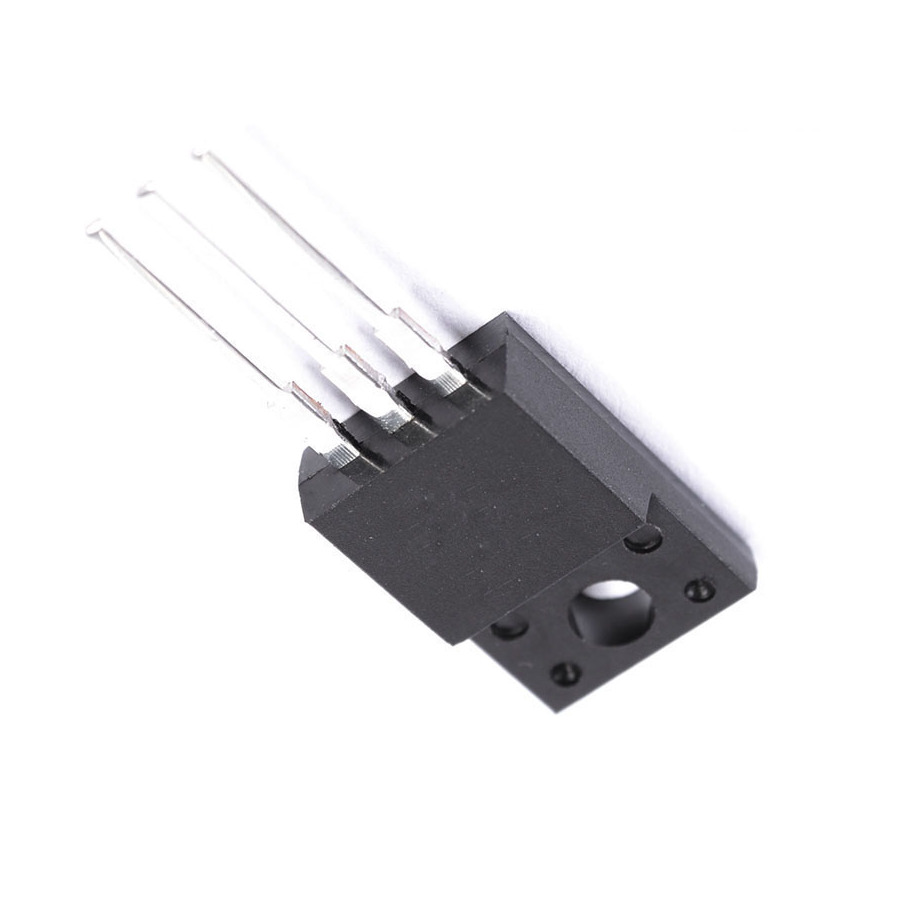

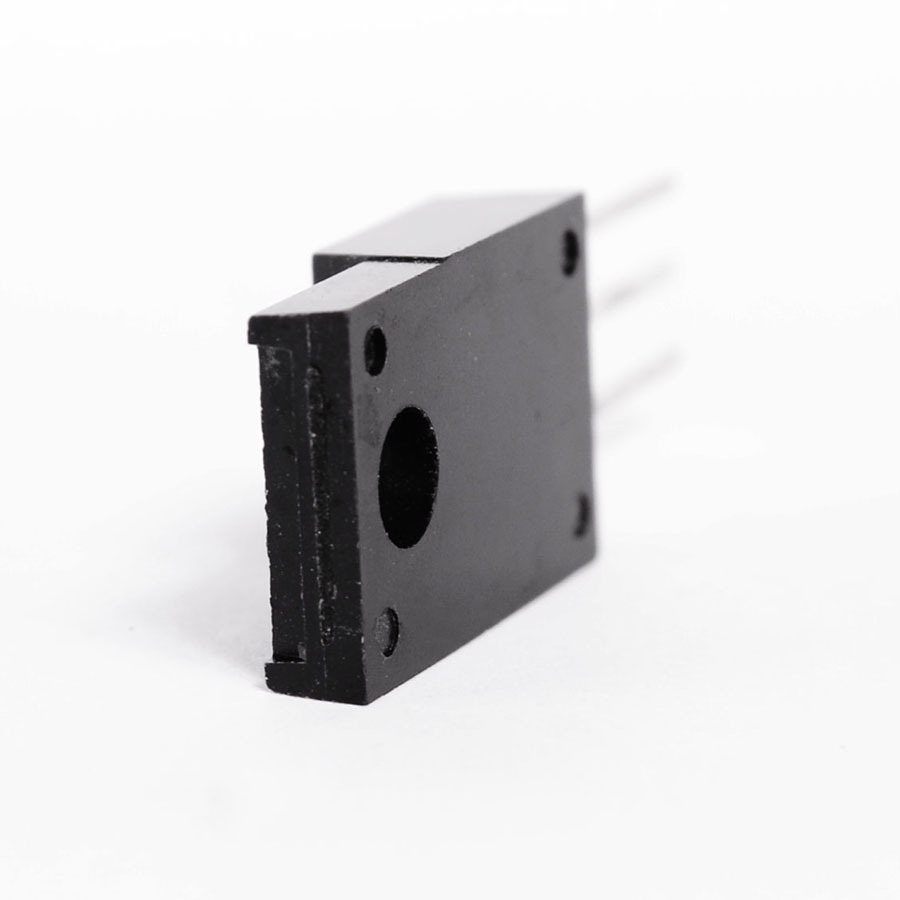

2SD1416 Transistor Silicon NPN CASE: SOT186 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case SOT186
Manufacturer Toshiba
Vbr CEO 80
Max. PD (W) 30
Max. hFE 15k
Min hFE 2.0k
Ic Max. (A) 7.0
@Ic (test) (A) 3.0
Icbo Max. @Vcb Max. (A) 100u
Mat. Silicon Logic
Polarity NPN
Derate Above 25°C 240m
@VCE (test) 3.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 7 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 4000
SKU 585416
