BF979
View detailed images (4)

BF979

SKU: BF979

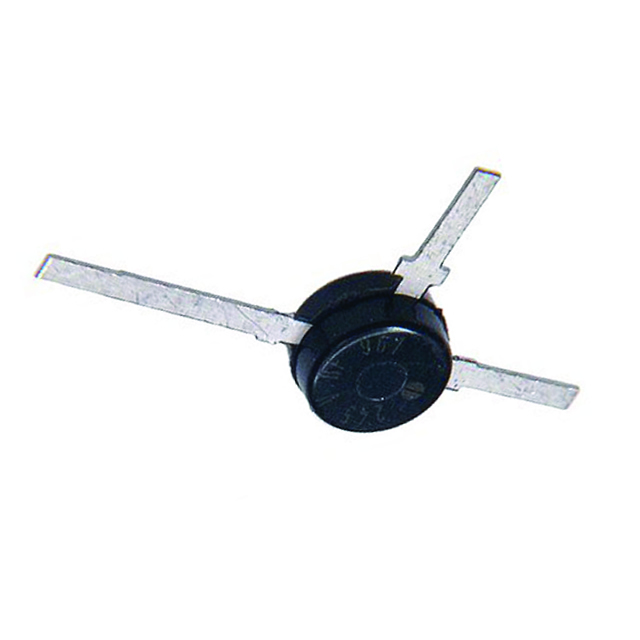

BF979 Transistor Silicon PNP - Case: SOT37 Make: Philips
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 12 pieces in 1-2 Days
  • More pieces shipped in 14 days
Product specifications
Type Transistor Silicon PNP
Manufacturer Philips
Case SOT37
Equivalent BF979-SMD
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 140m
hfe 15
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 1.0G
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.14 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.6 pF
Transition Frequency (ft): 1300 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 79901
