ESM2012DV
View detailed images (12)

ESM2012DV

SKU: ESM2012DV

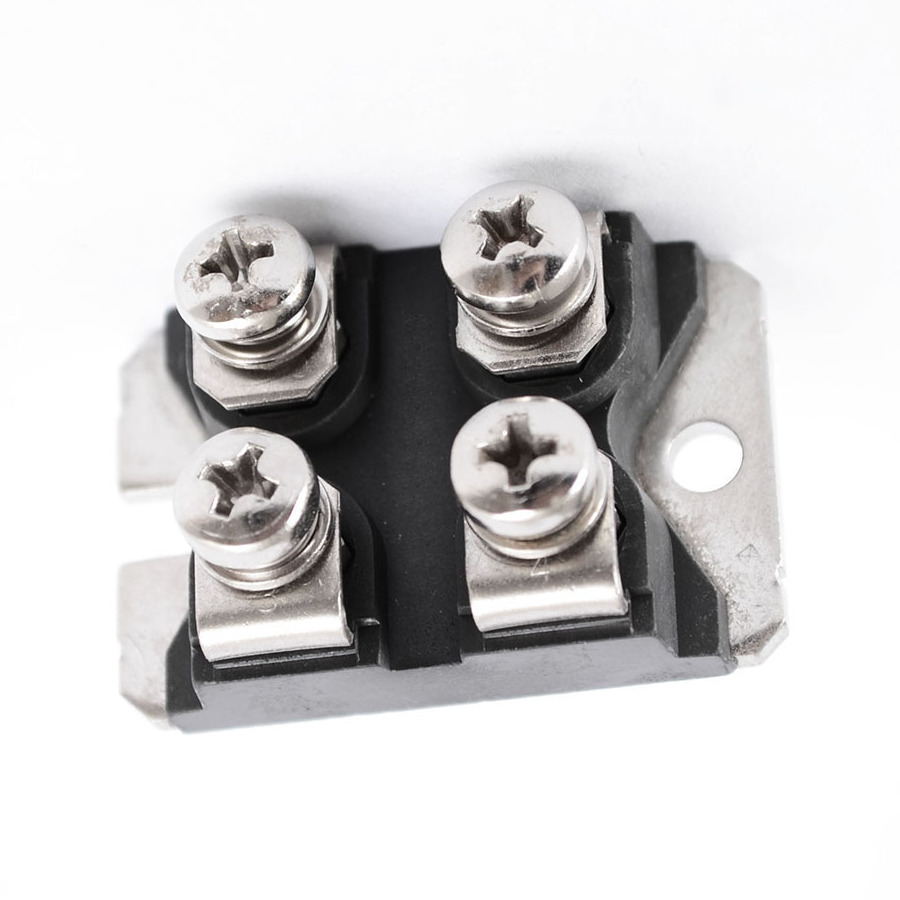

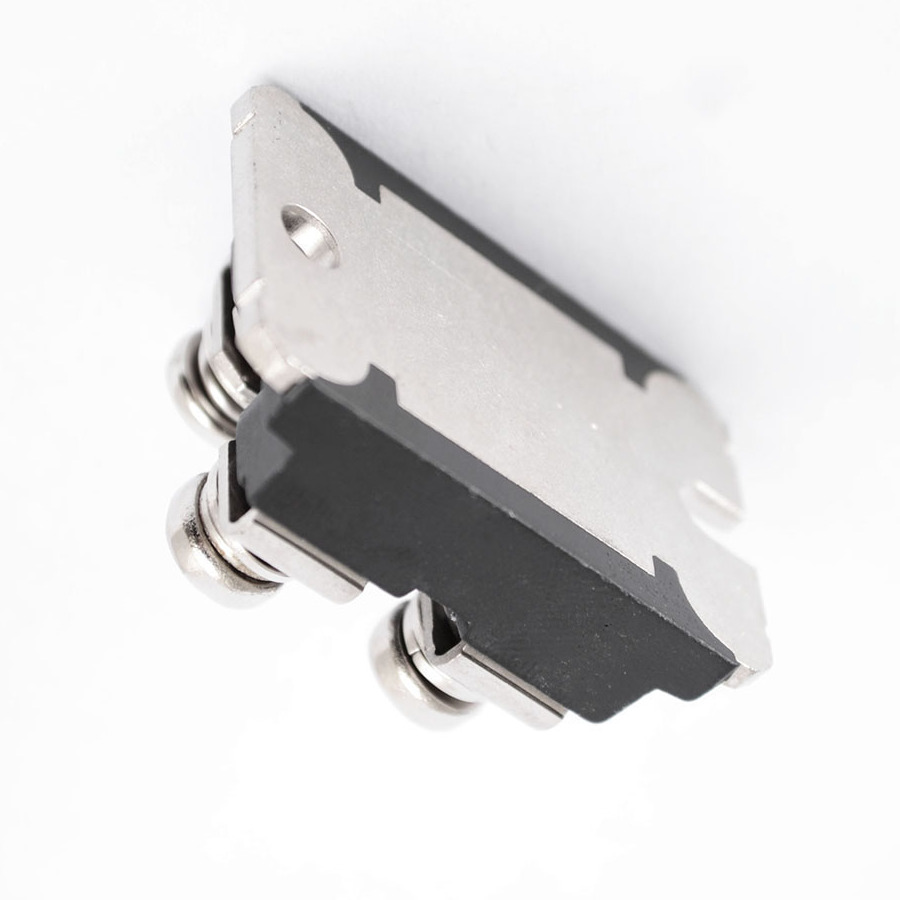

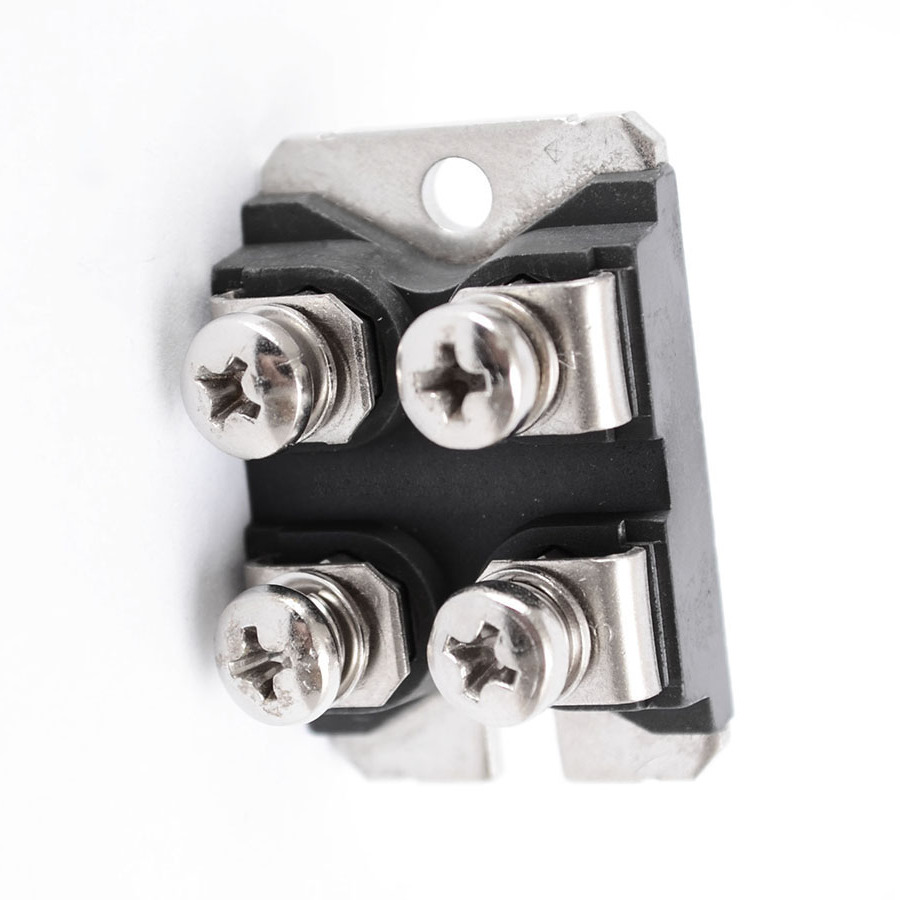

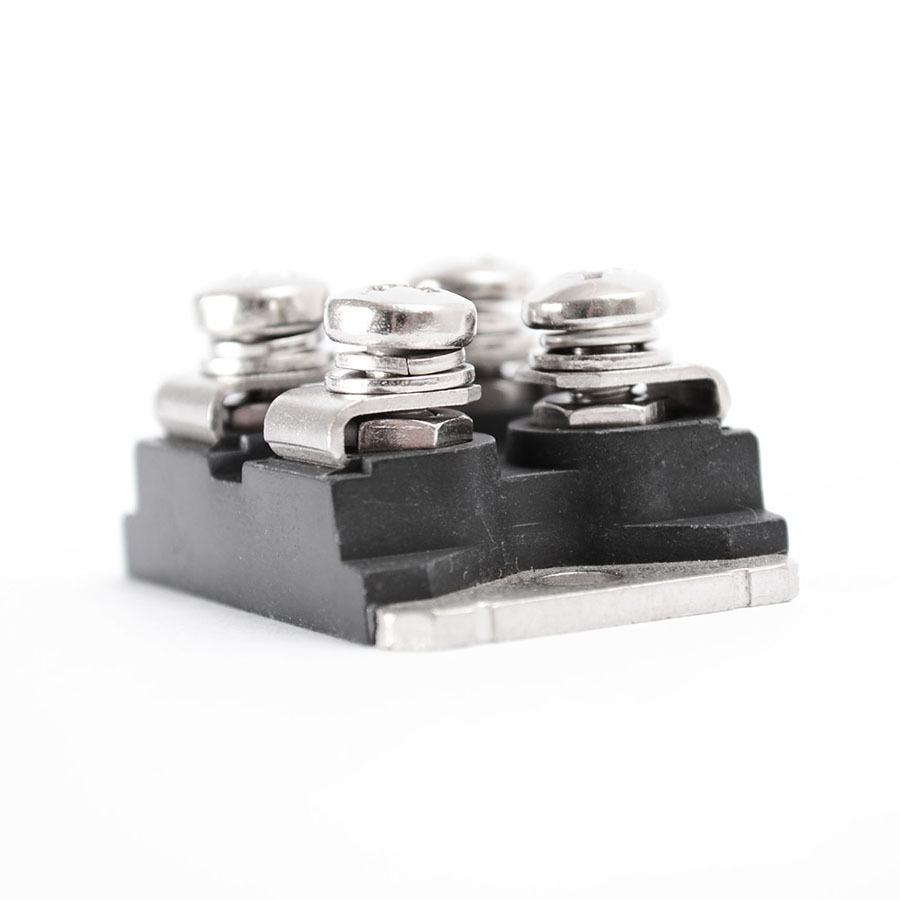

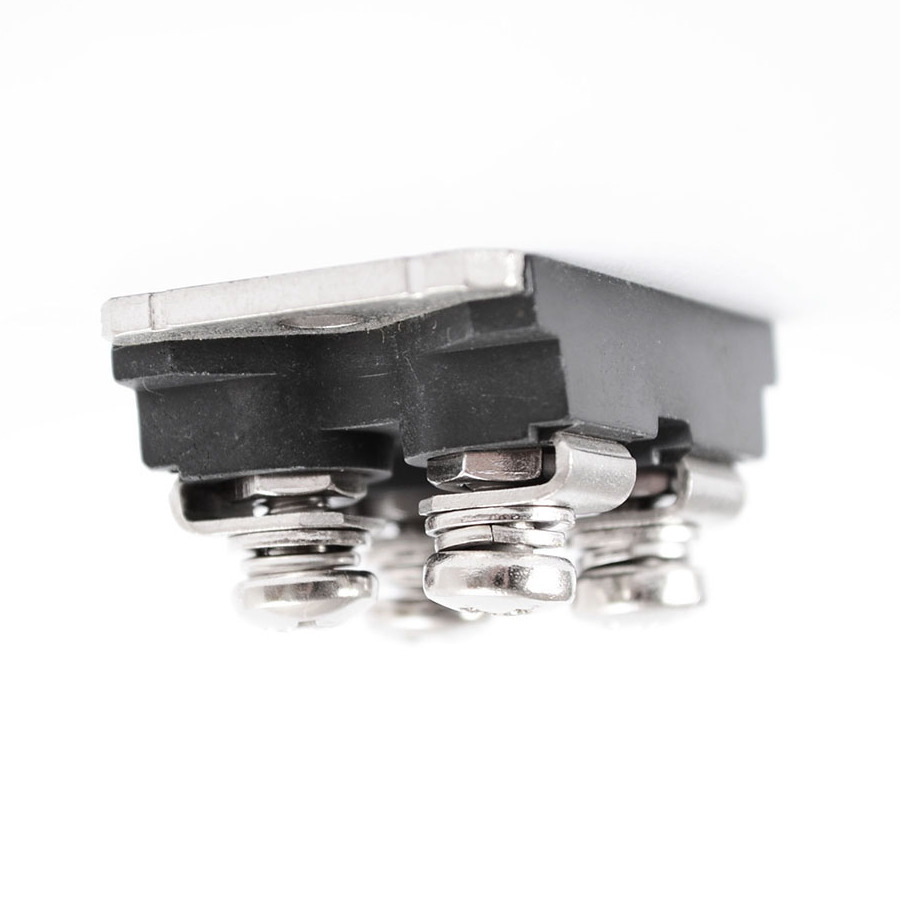

ESM2012DV Transistor Silicon NPN CASE: SOT227A MAKE: ST Microelectronics - STM
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
ESM2012DV Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT227A
Manufacturer ST Microelectronics - STM
Vbr CEO 125
Ckts Per Dev. 1
Max. PD (W) 175
t(f) Max. (S) 300n
Ic Max. (A) 120
@Ic (test) (A) 100
Polarity NPN
Therm Res. ÚJC (°C/W) 0.9
Therm Res. (J-C) 0.7
VCE(sat) Max. 2.0
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-106
Maximum Collector Power Dissipation (Pc) 175 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 125 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 120 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 1200
SKU 82009
