ESM3030DV
View detailed images (12)

ESM3030DV

SKU: ESM3030DV

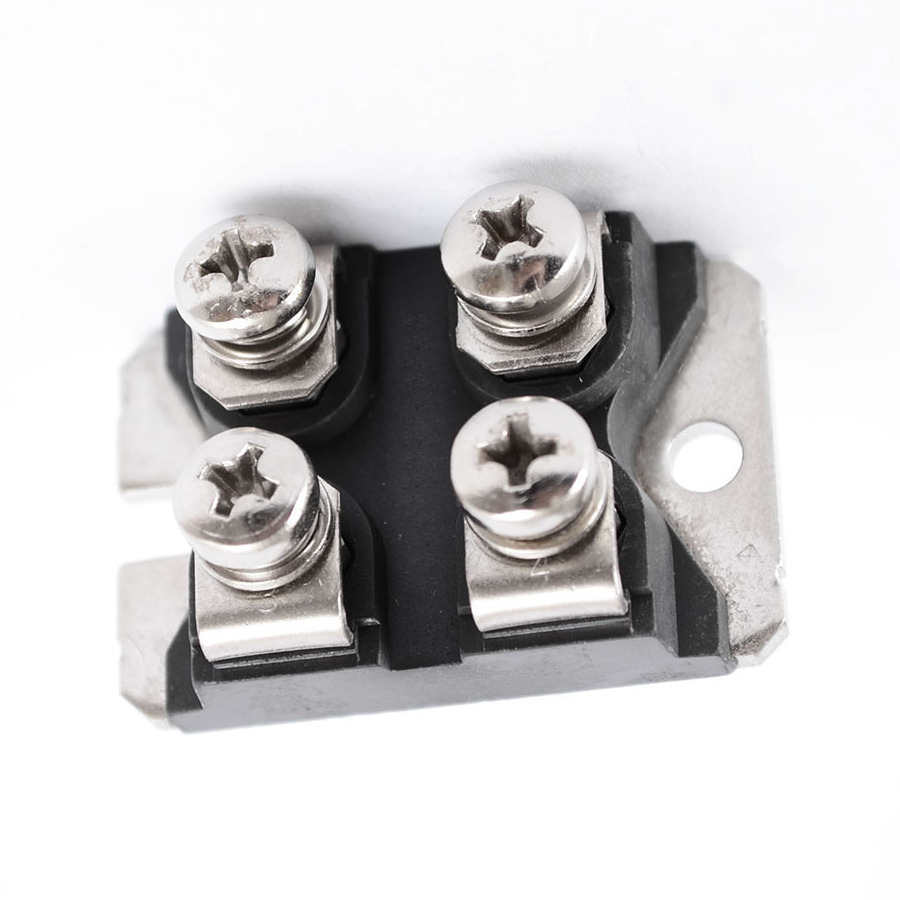

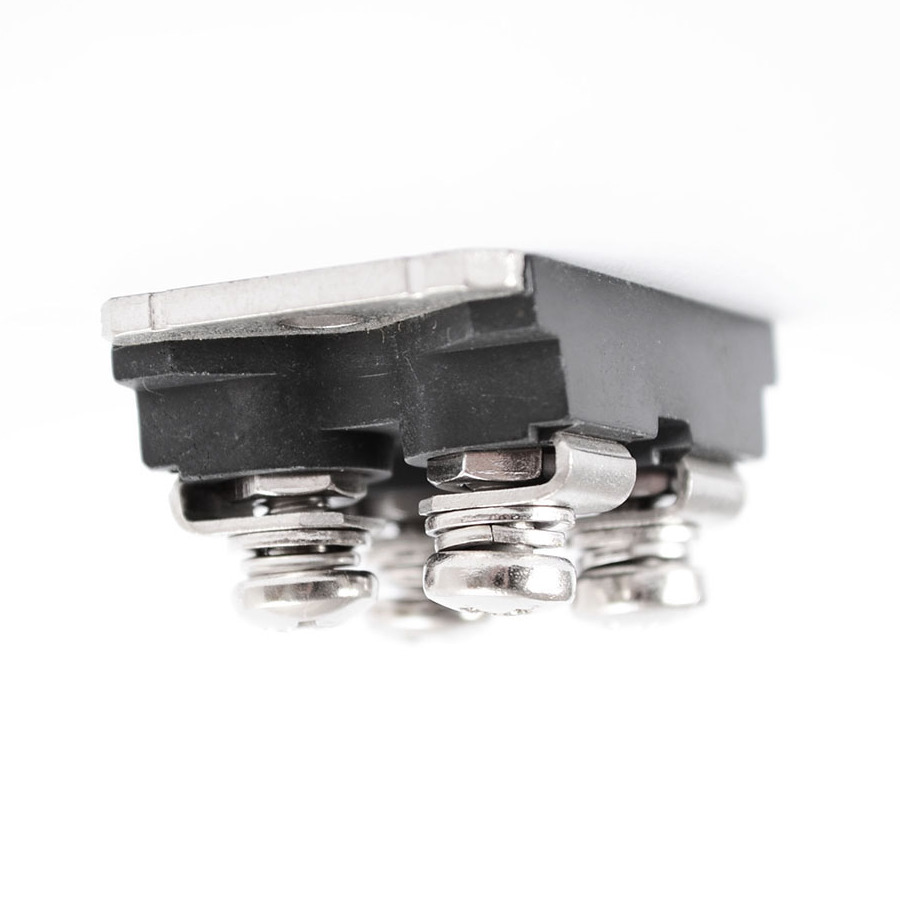

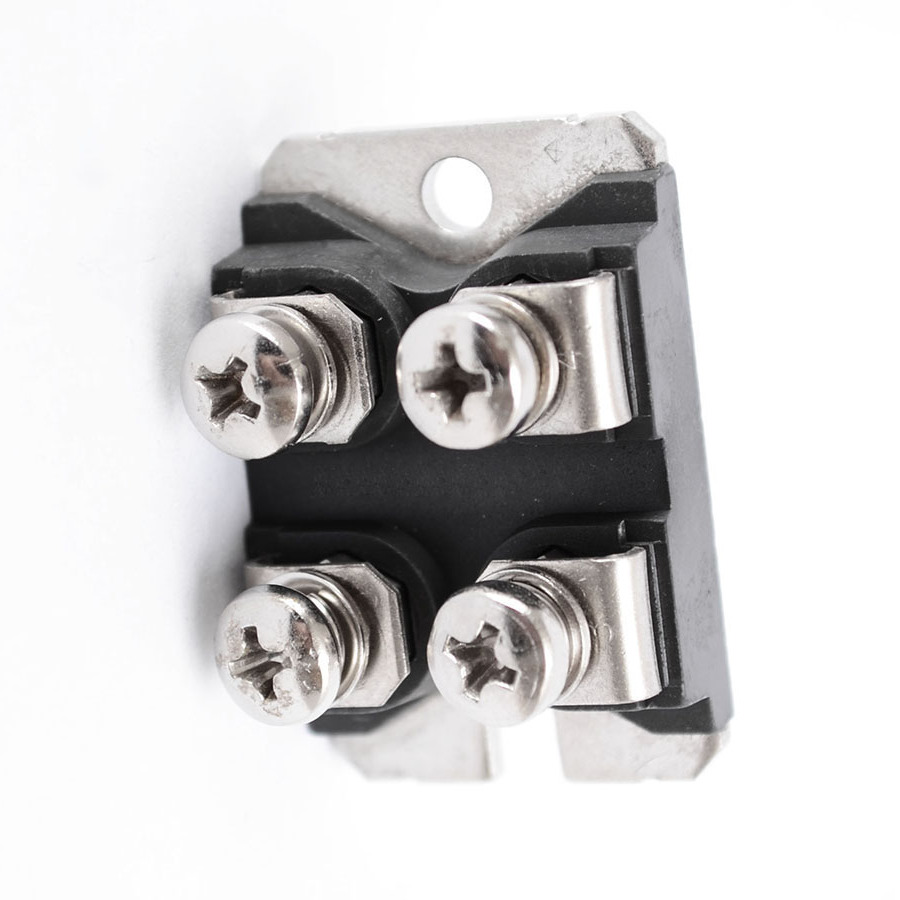

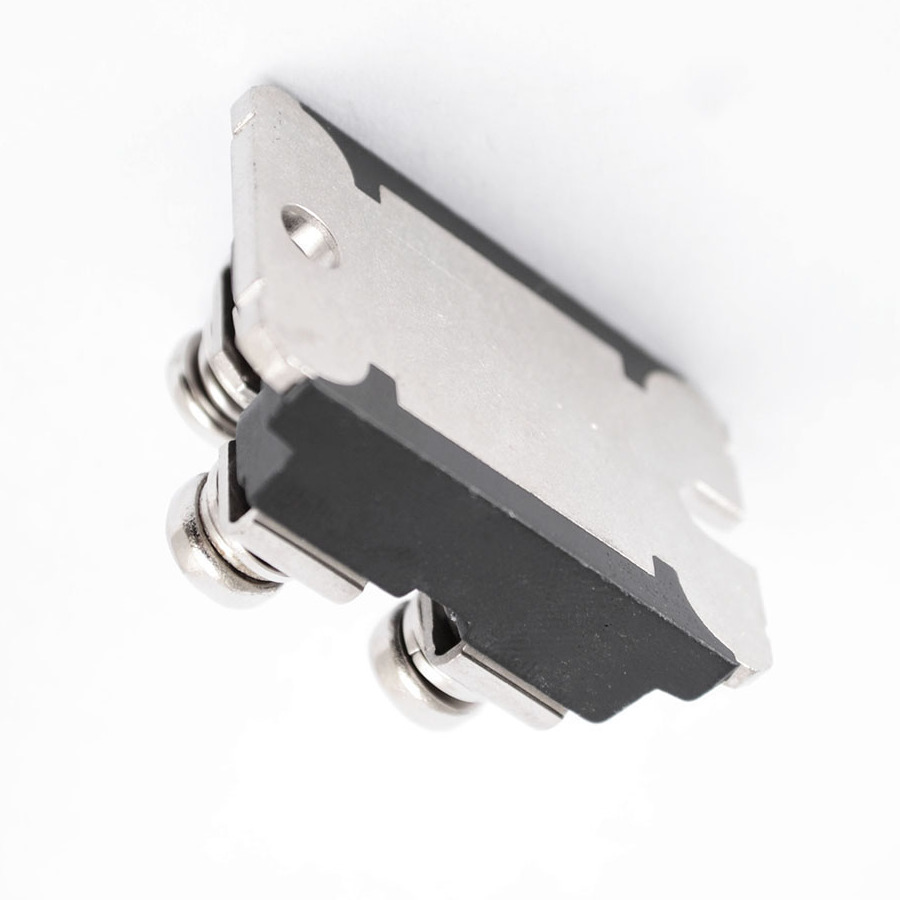

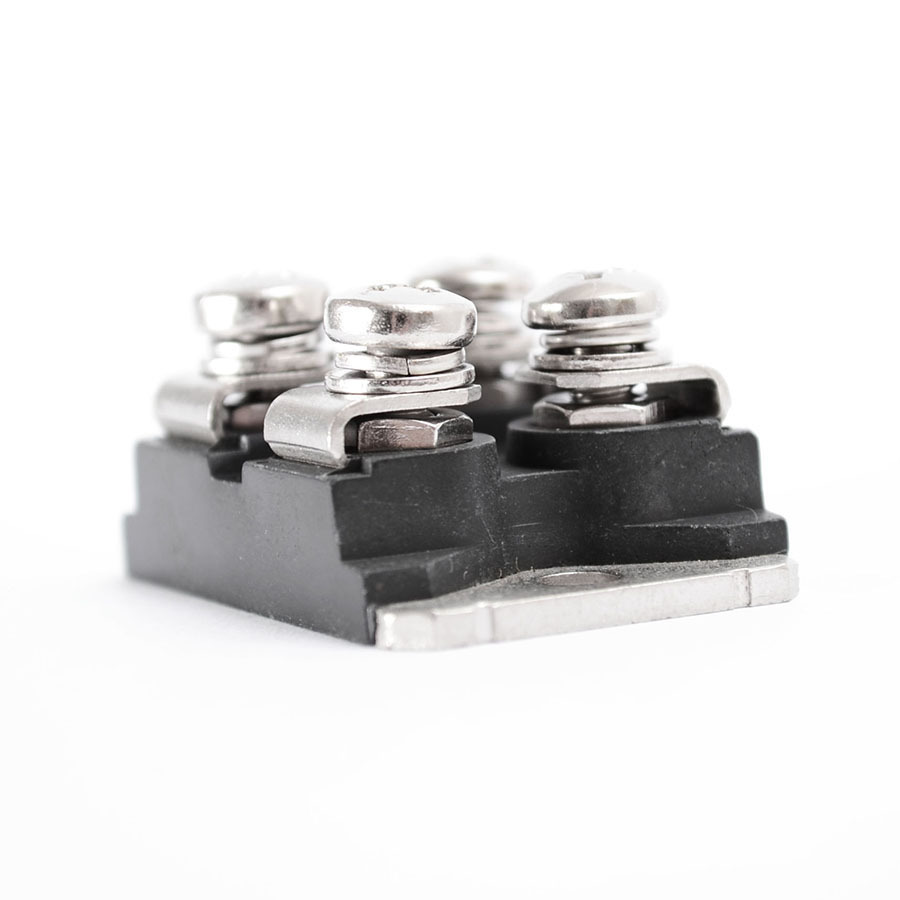

ESM3030DV Transistor Silicon NPN - CASE: SOT227A MAKE: ST Microelectronics - STM
Price: £33.99
+ VAT 20% for UK purchases
£33.99
Qty
+ VAT 20% for UK purchases
  • 8 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT227A
Manufacturer ST Microelectronics - STM
Vbr CEO 300
Ckts Per Dev. 1
Max. PD (W) 225
t(f) Max. (S) 0.6u
Ic Max. (A) 100
@Ic (test) (A) 85
Polarity NPN
Therm Res. ÚJC (°C/W) 1.2
Therm Res. (J-C) .55
VCE(sat) Max. 2.2
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-106
Maximum Collector Power Dissipation (Pc) 225 W
Maximum Collector-Base Voltage |Vcb| 400 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 100 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 81985
