M54513P
View detailed images (12)

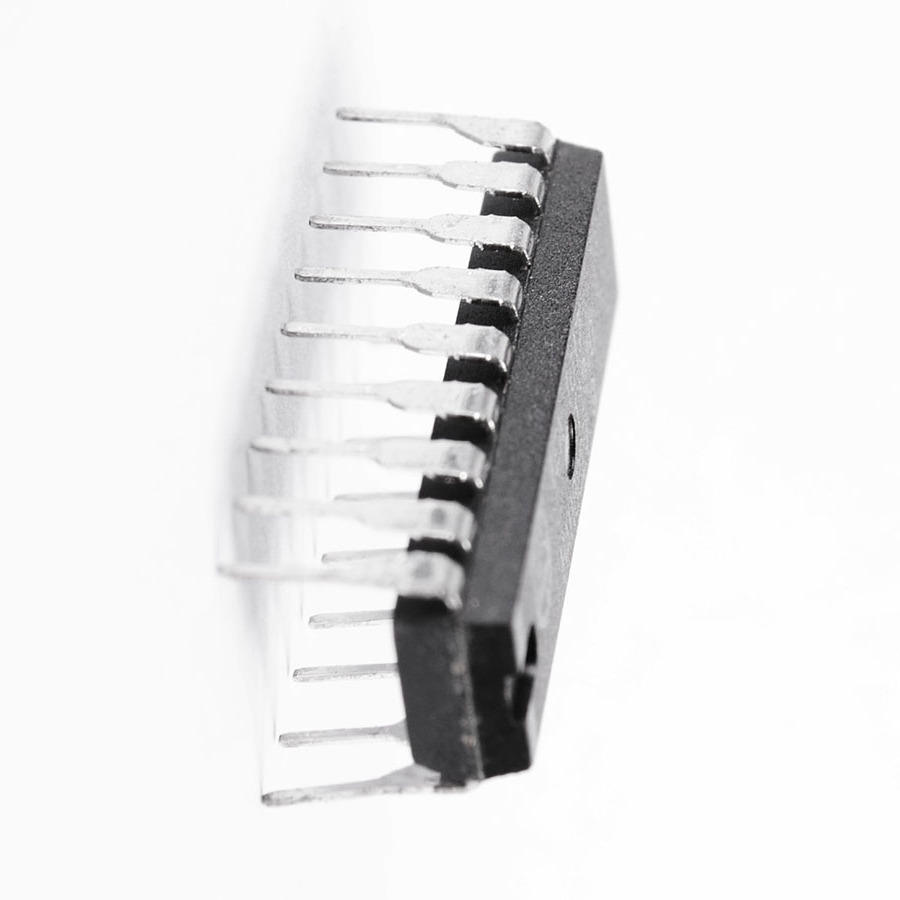

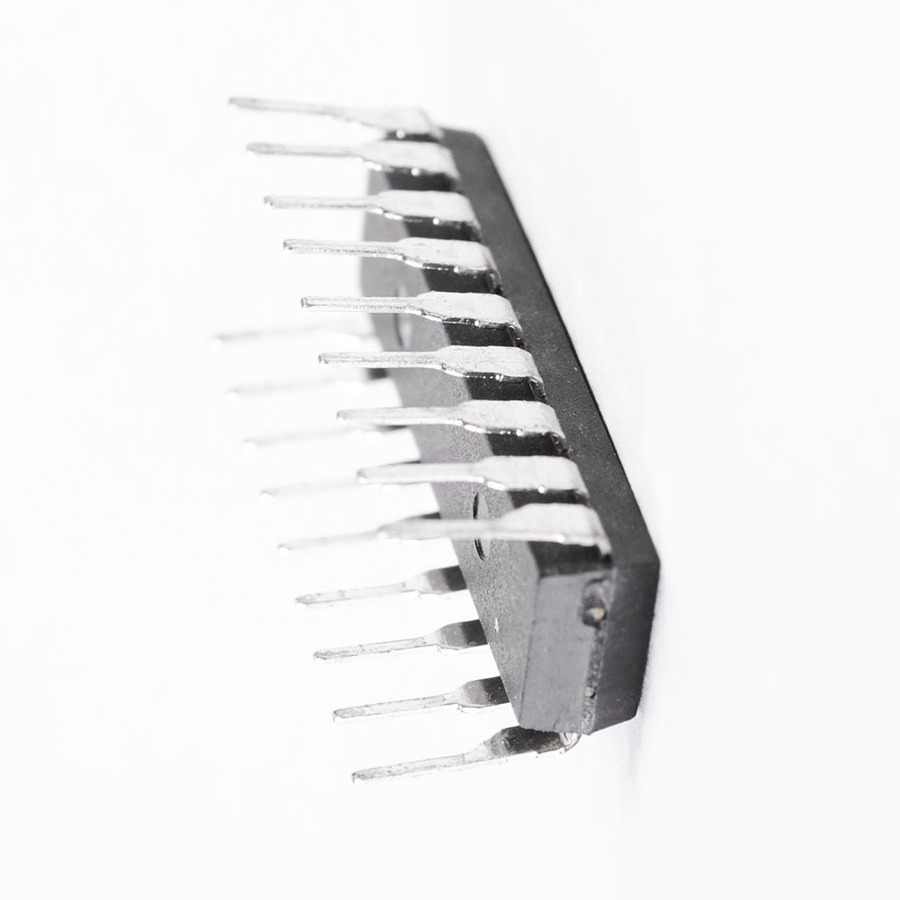

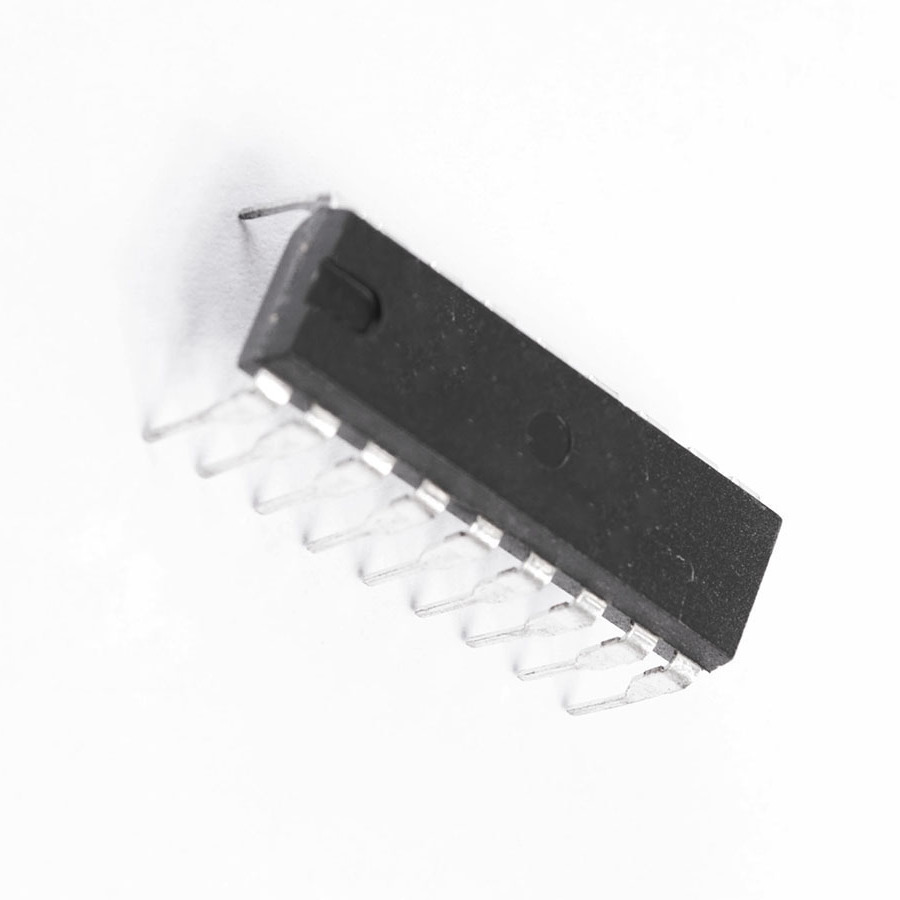

M54513P

SKU: M54513P
M54513P Transistor Silicon Pre-Biased-NPN CASE: DIP18 MAKE: Mitsubishi
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 16 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
M54513P Datasheet
Product specifications
Type Transistor Silicon Pre-Biased-NPN
Case DIP18
Manufacturer Mitsubishi
Min hFE 80
Polarity Pre-Biased-NPN
PD Max. (W) 1.8
@VCE (test) (V) 4.0
@Ic (test) 30m
Ic Max. 50m
Vceo Max. 40
Pinout Equivalence Number 18-87
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1.1 W
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Forward Current Transfer Ratio (hFE), MIN 80
Built in Bias Resistor R1 2 kOhm
Built in Bias Resistor R2 13.6 kOhm
Typical Resistor Ratio R1/R2 0.15
SKU 77646
