MM1748
View detailed images (5)

MM1748

SKU: MM1748

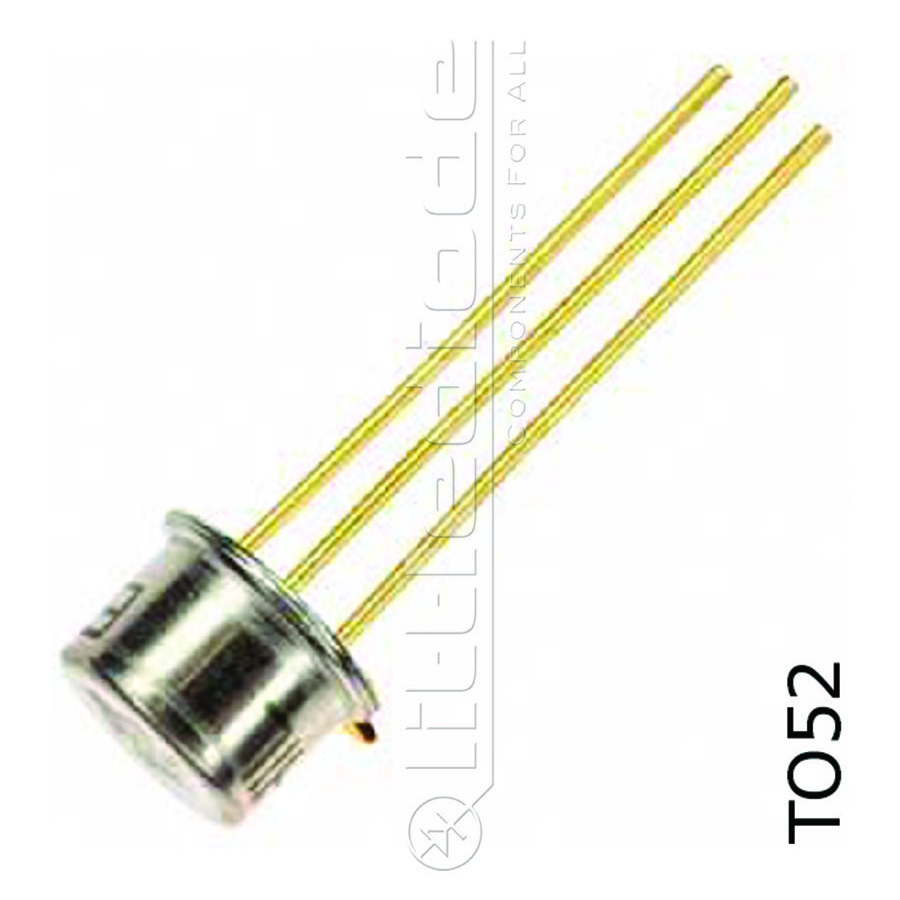

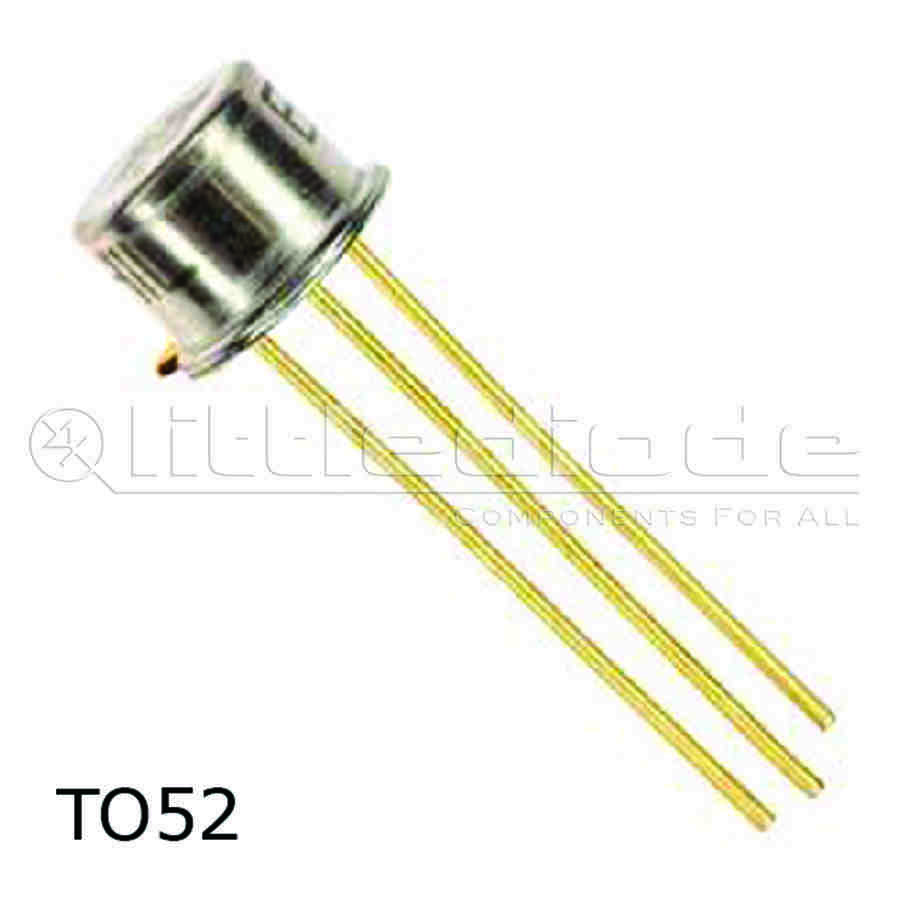

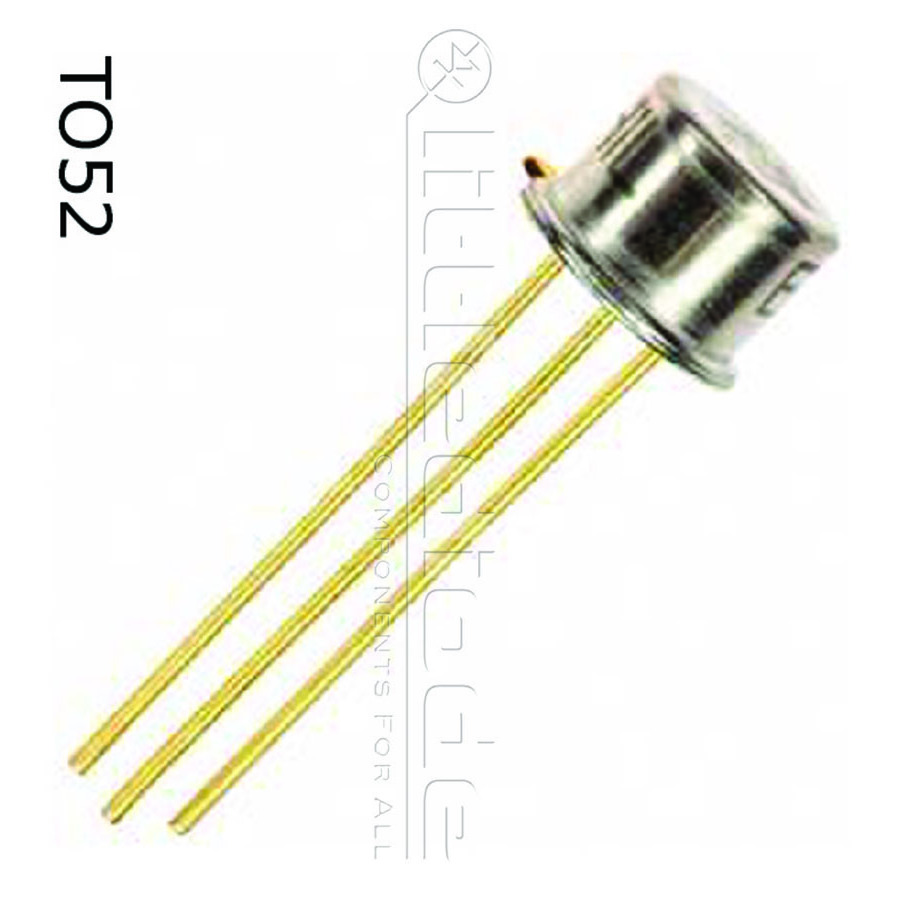

MM1748 Transistor Silicon NPN CASE: TO52 MAKE: Motorola Semiconductor
Product specifications
Equivalent MM1748A
Type Transistor Silicon NPN
Case TO52
Manufacturer Motorola Semiconductor
Vbr CBO 15
Vbr CEO 6.0
Max. PD (W) 300m
C(ob) (F) 3.0p
Derate (Amb) (W/°C) 1.7m
t(f) Max. (S) 15n+
hfe 15
Ic Max. (A) 150m
Icbo Max. @Vcb Max. (A) 5.0n
Polarity NPN
Tr Max. (s) 15n
t(stor) Max. (S) 6.0n
Trans. Freq (Hz) Min. 800M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 30m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 6 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 255692
