Home / Actives / Transistor / MM1748A
MM1748A
View detailed images (5)

MM1748A

SKU: MM1748A

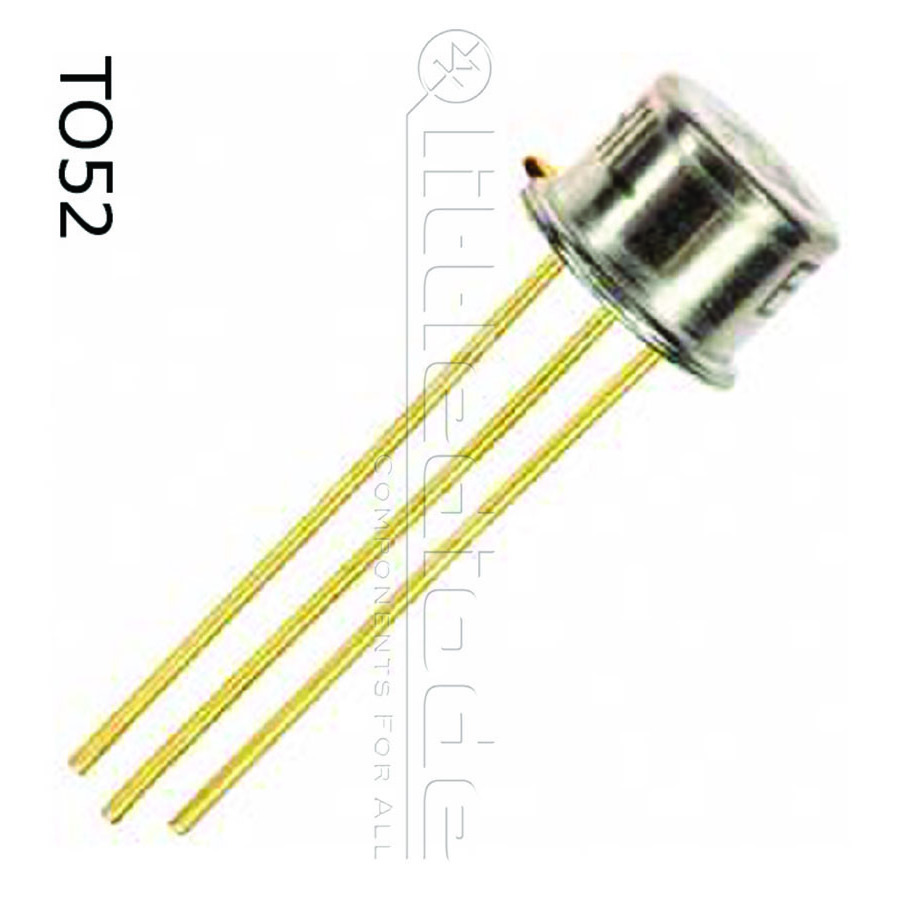

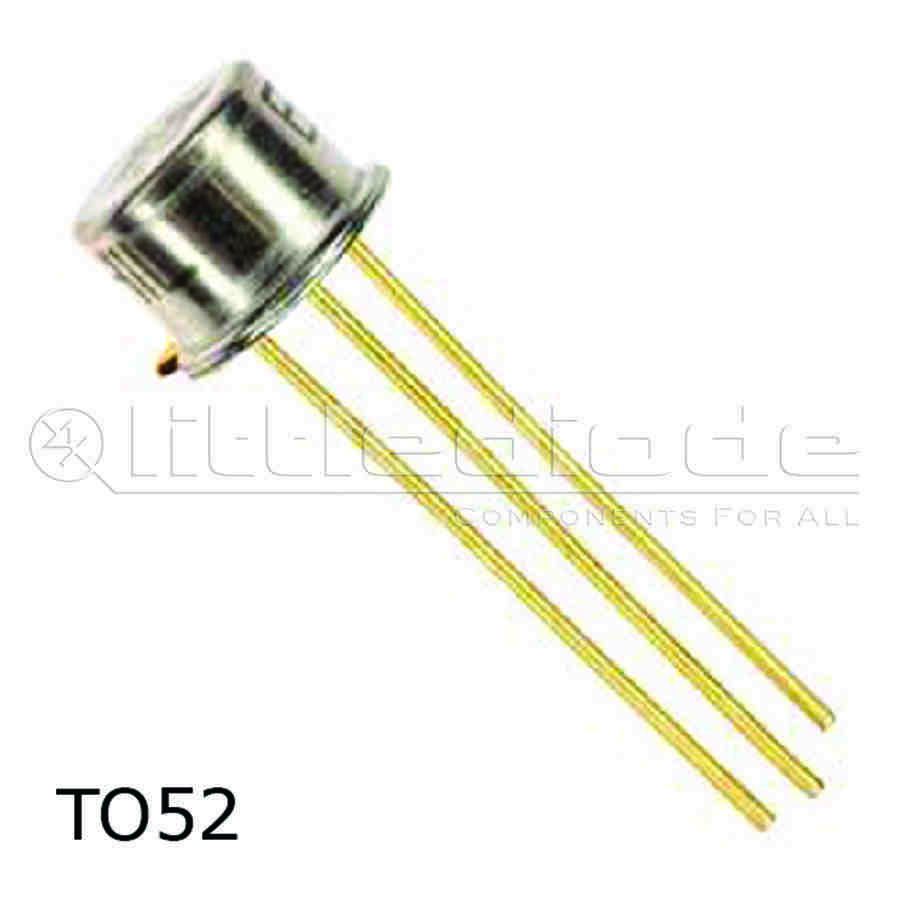

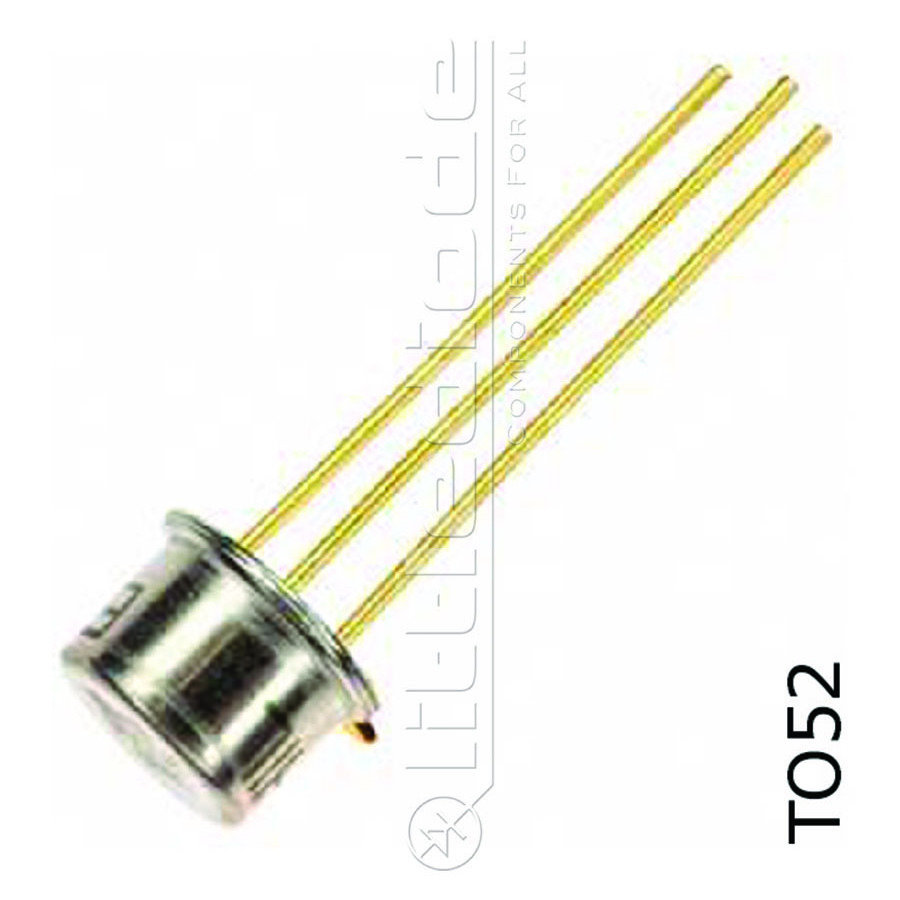

MM1748A Transistor Silicon NPN CASE: TO52 MAKE: Motorola Semiconductor
Product specifications
Equivalent MM1748
Type Transistor Silicon NPN
Case TO52
Manufacturer Motorola Semiconductor
Vbr CBO 15
Vbr CEO 6.0
Max. PD (W) 300m
C(ob) (F) 3.0p
Derate (Amb) (W/°C) 1.7m
t(f) Max. (S) 15n+
hfe 15
Ic Max. (A) 150m
Icbo Max. @Vcb Max. (A) 5.0n
Polarity NPN
Tr Max. (s) 15n
t(stor) Max. (S) 6.0n
Trans. Freq (Hz) Min. 800M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 30m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 6 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 850 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 554239
