PZT2222A

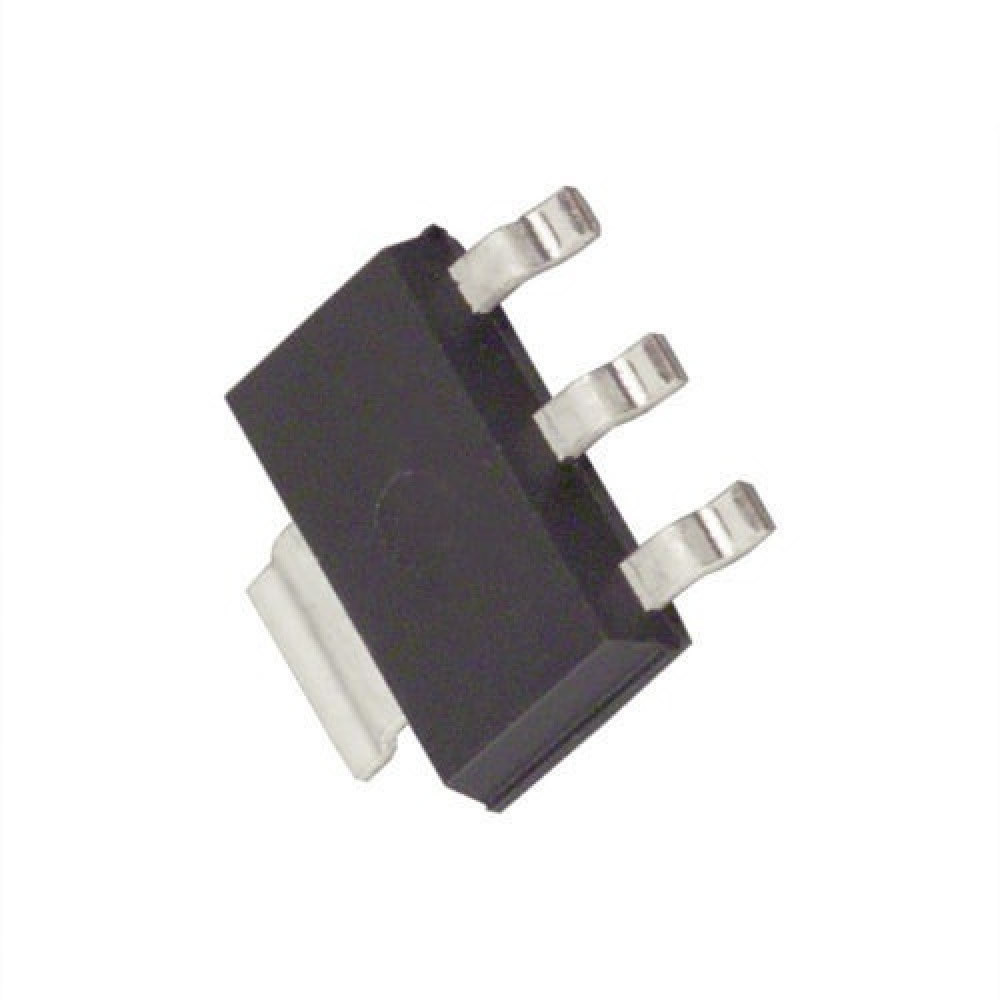

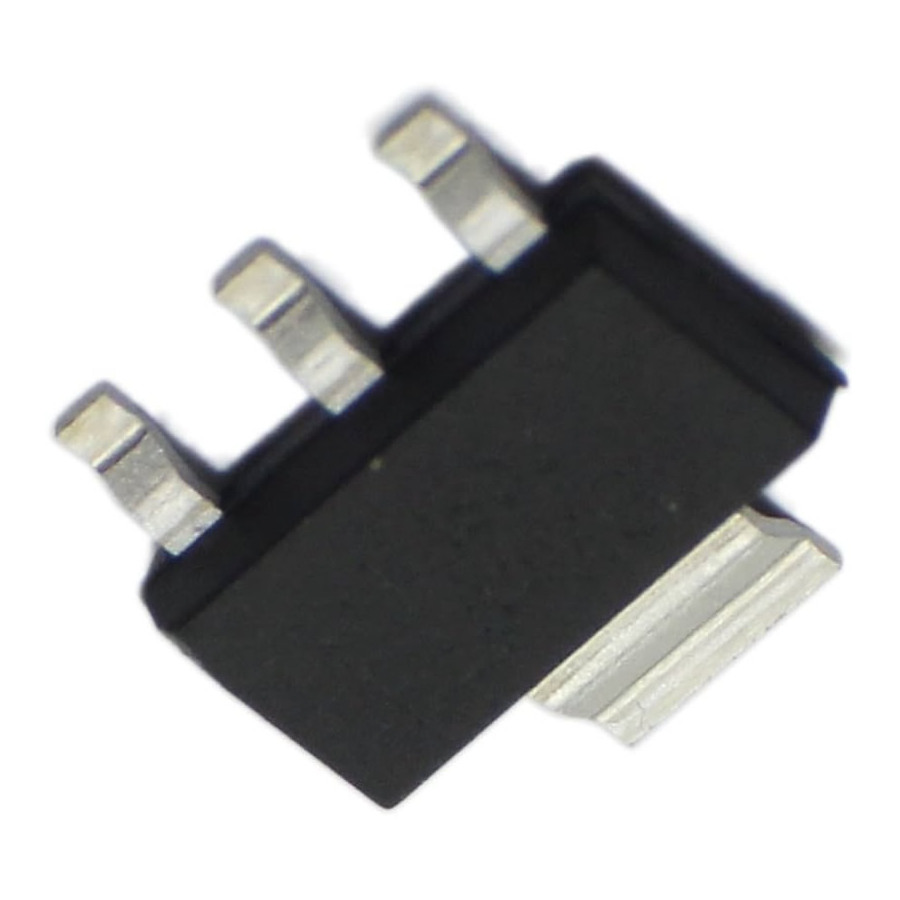

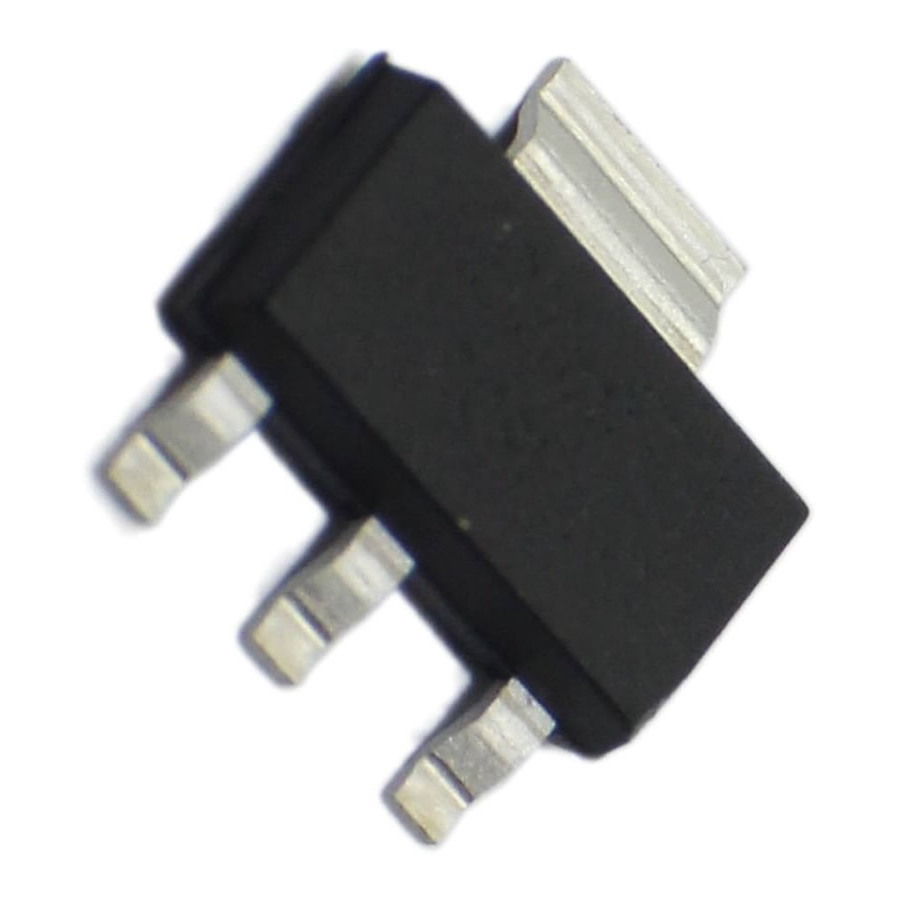

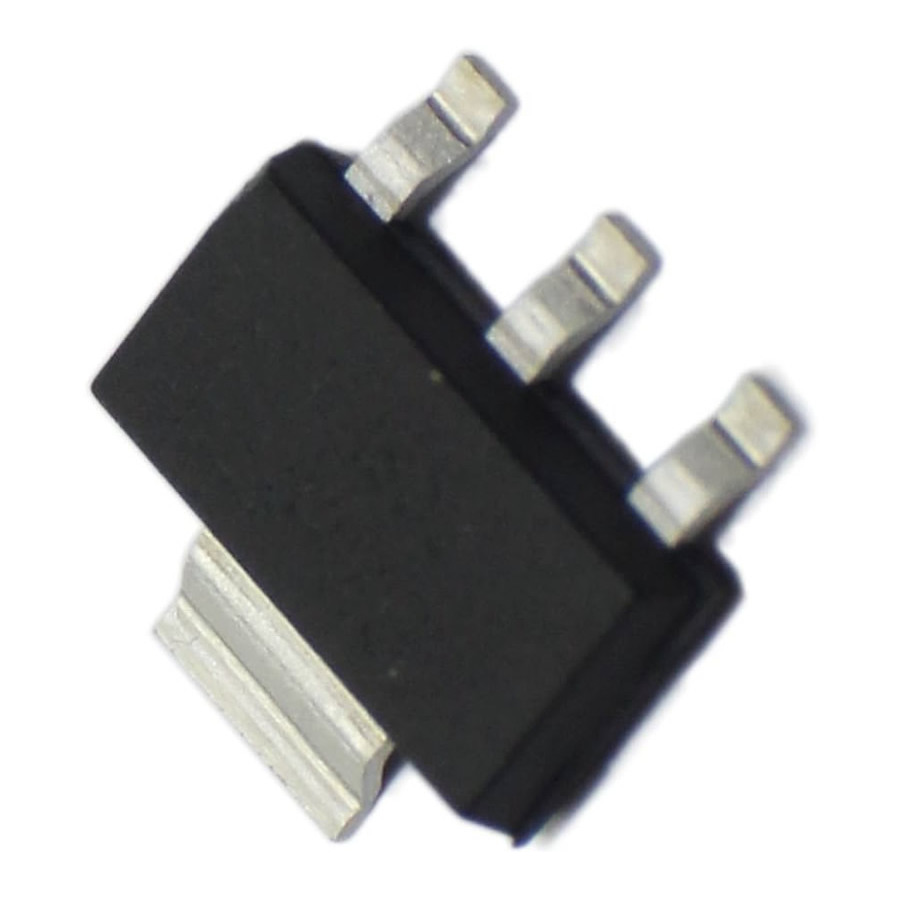

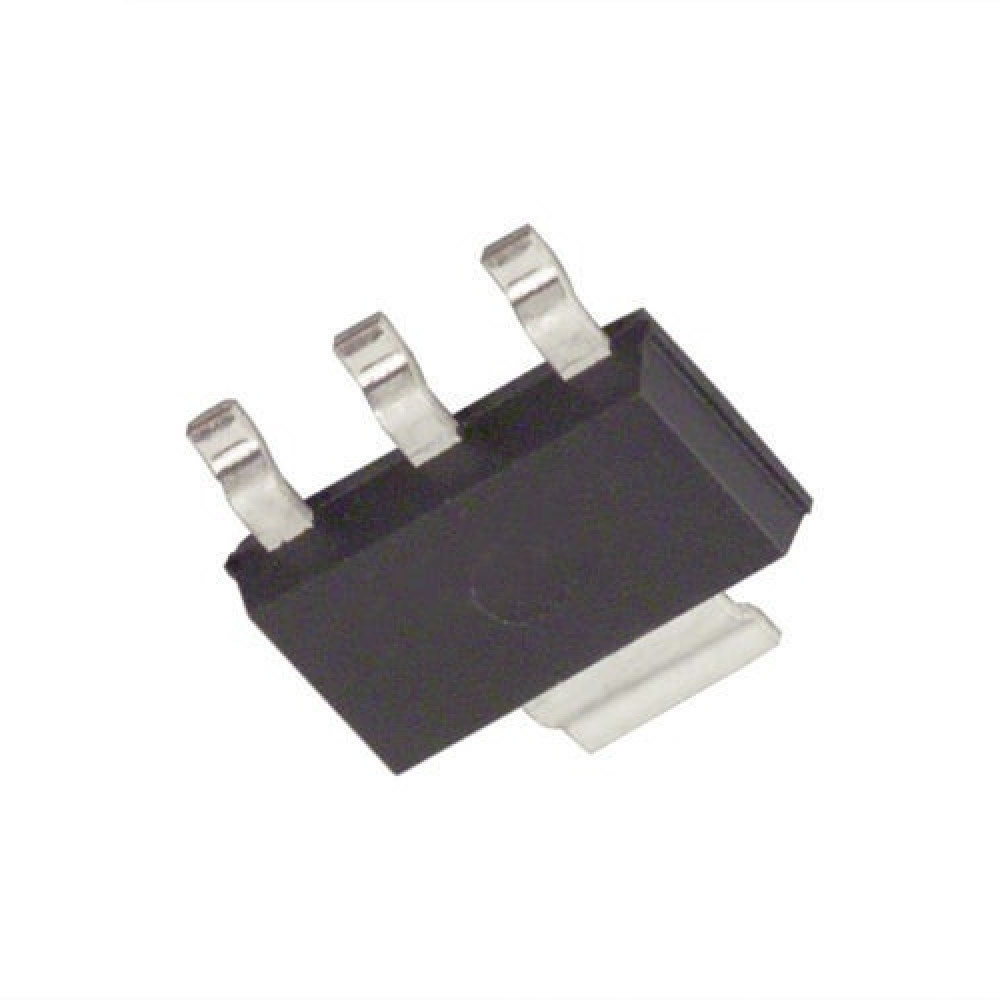

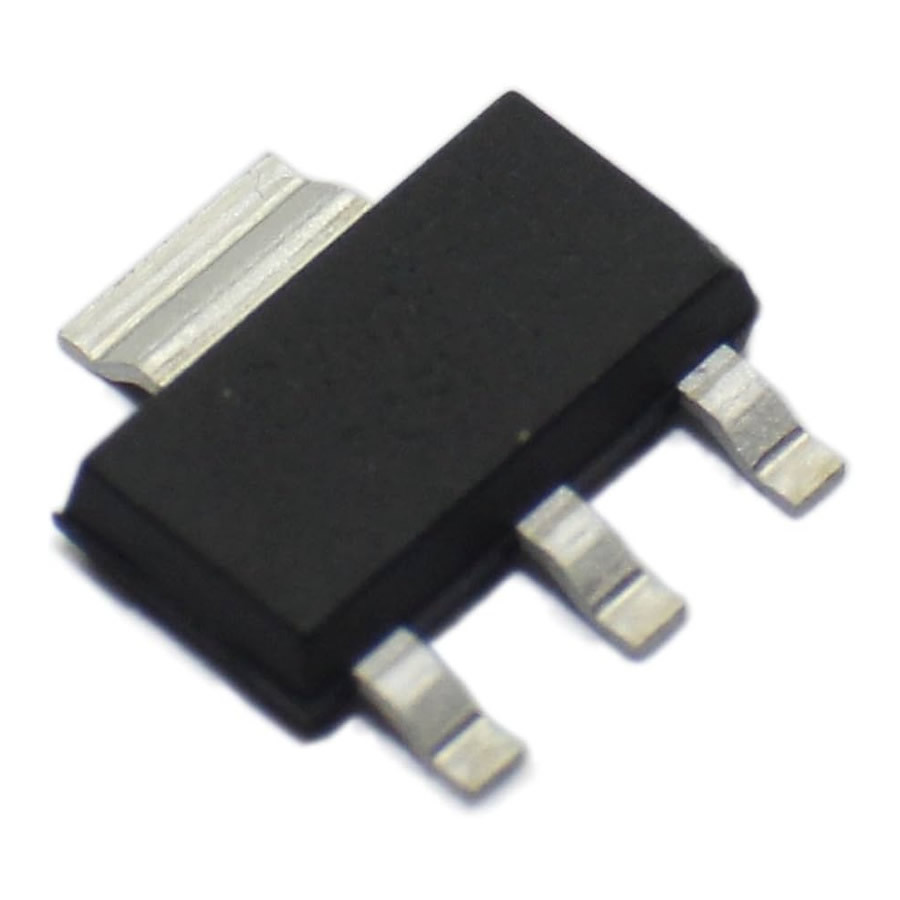

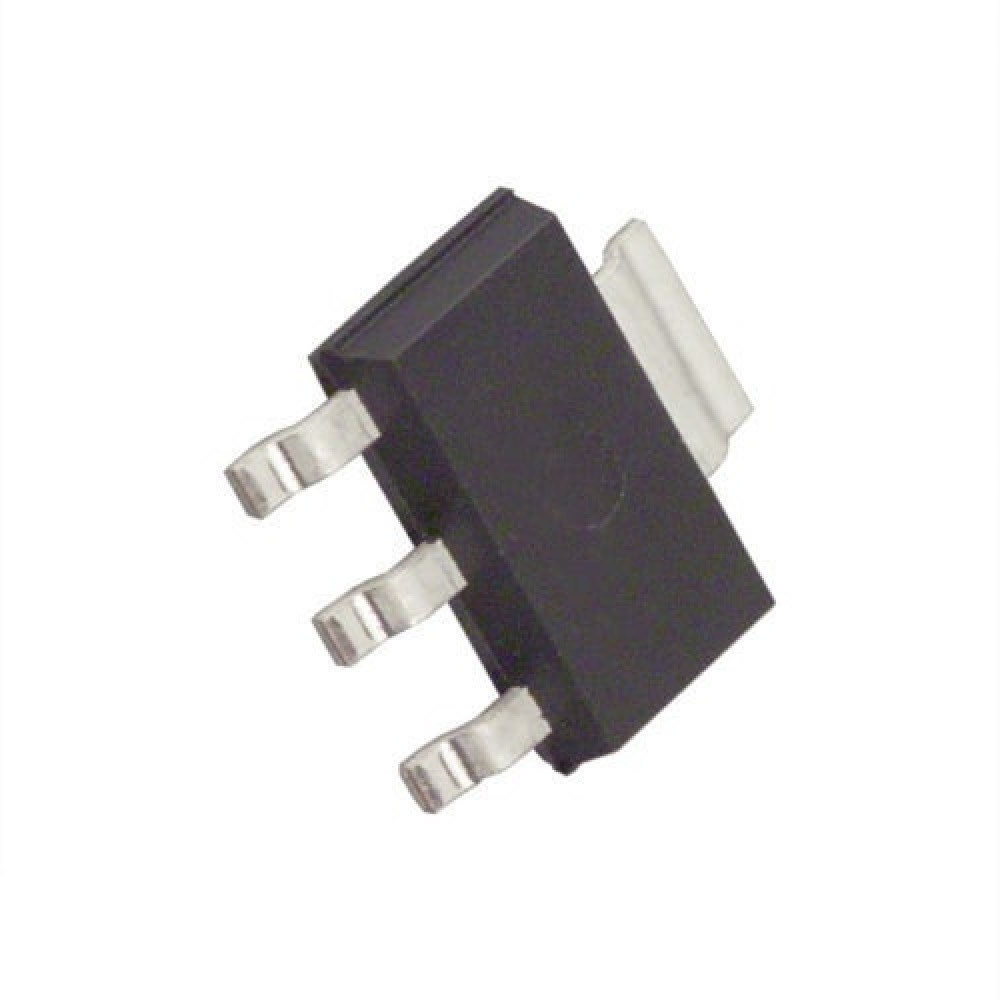

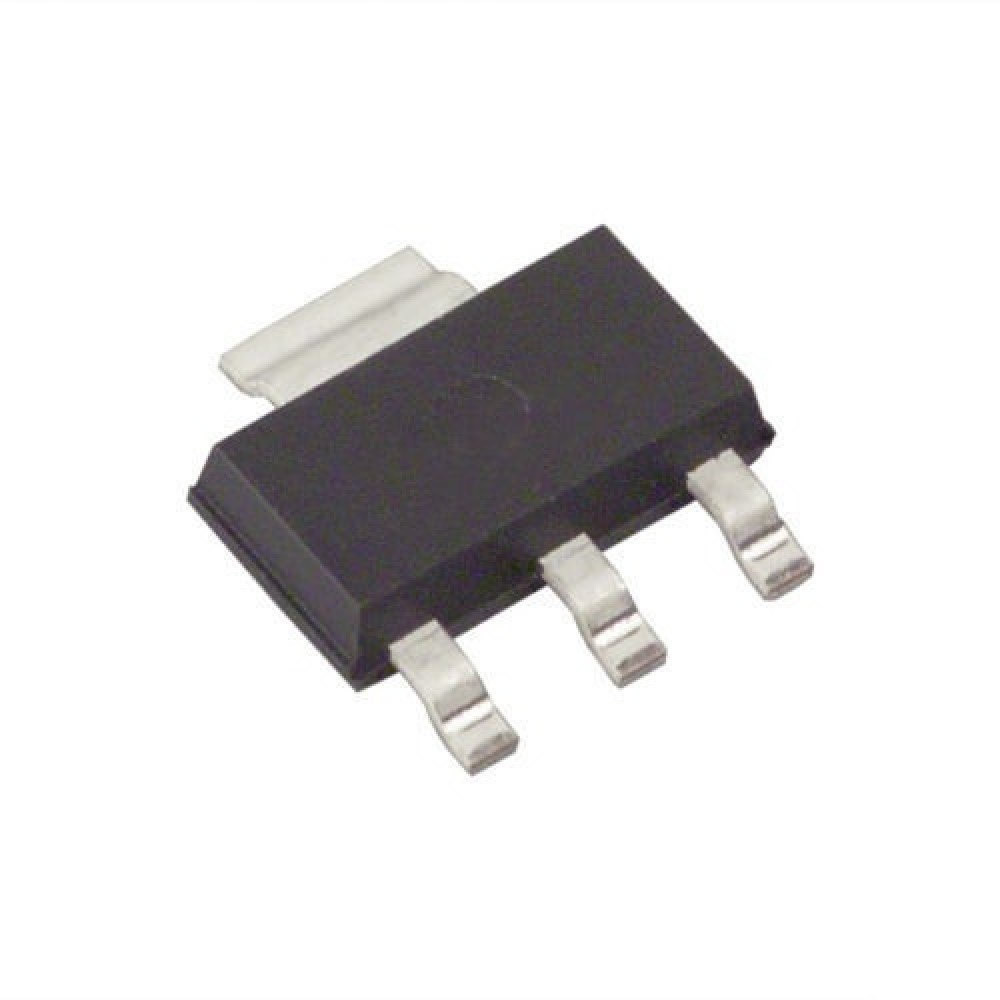

View detailed images (8)

PZT2222A

SKU: PZT2222A
PZT2222A SemiConductor - Case: SOT223 Make: Fairchild Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
Datasheet
PZT2222A Datasheet
Product specifications
Equivalent PZT2222A-SMD
Case SOT223
Type Transistor Silicon NPN
Manufacturer Fairchild Semiconductor
Vbr CBO 75
Vbr CEO 40
Max. PD (W) 1.5
t(f) Max. (S) 60n
Max. hFE 300
Min hFE 100
Ic Max. (A) 600m
@Ic (test) (A) 150m
Icbo Max. @Vcb Max. (A) 10n
Polarity NPN
Tr Max. (s) 25n
Trans. Freq (Hz) Min. 300M
Oper. Temp (°C) Max. 150
@VCE (V) 10
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 75 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code P1F_ZT2222A
SKU 279184
