SN74HC05D

SN74HC05D

SKU: SN74HC05D

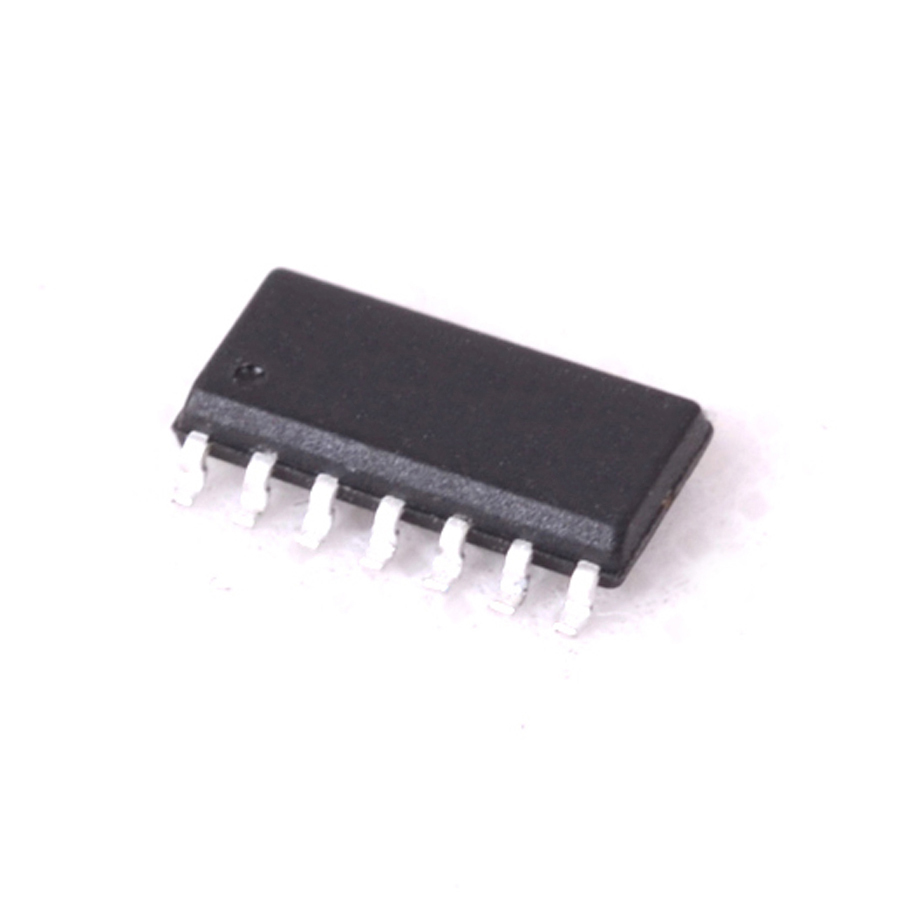

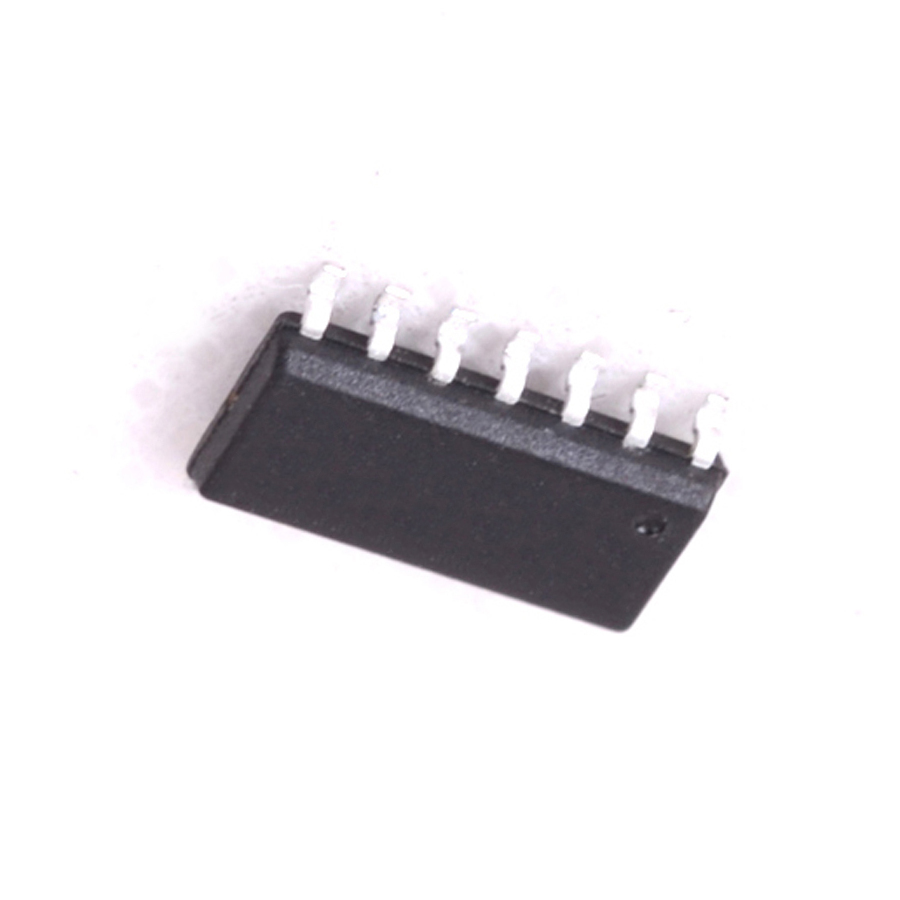

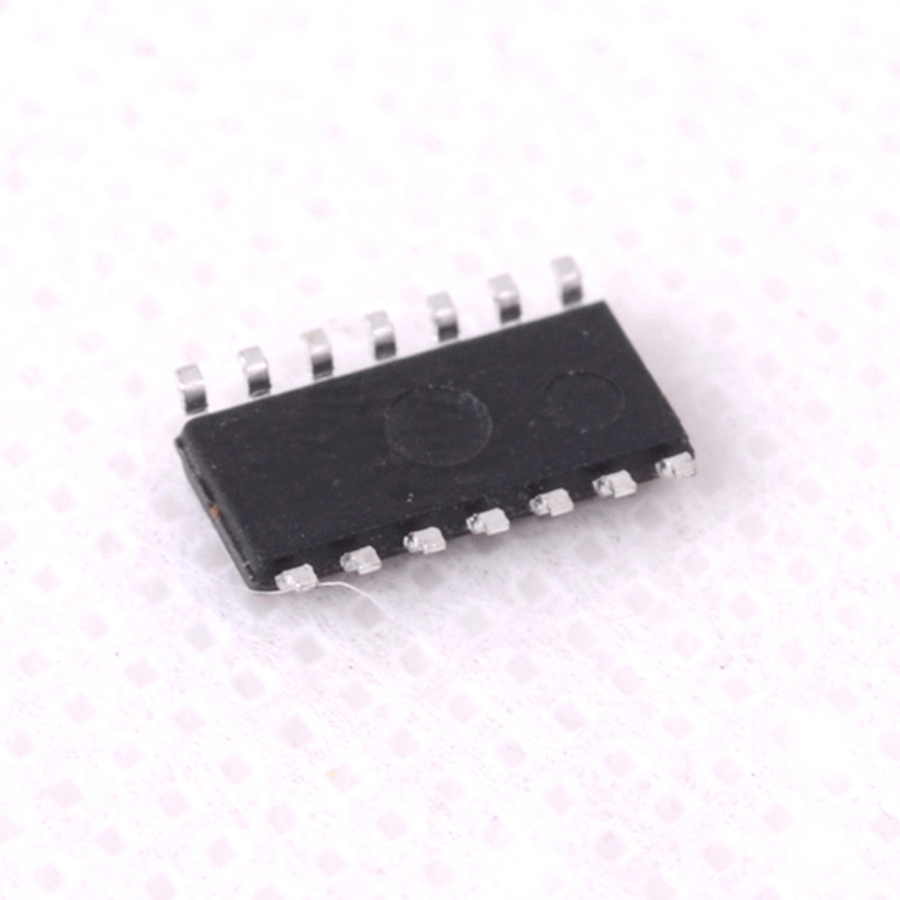

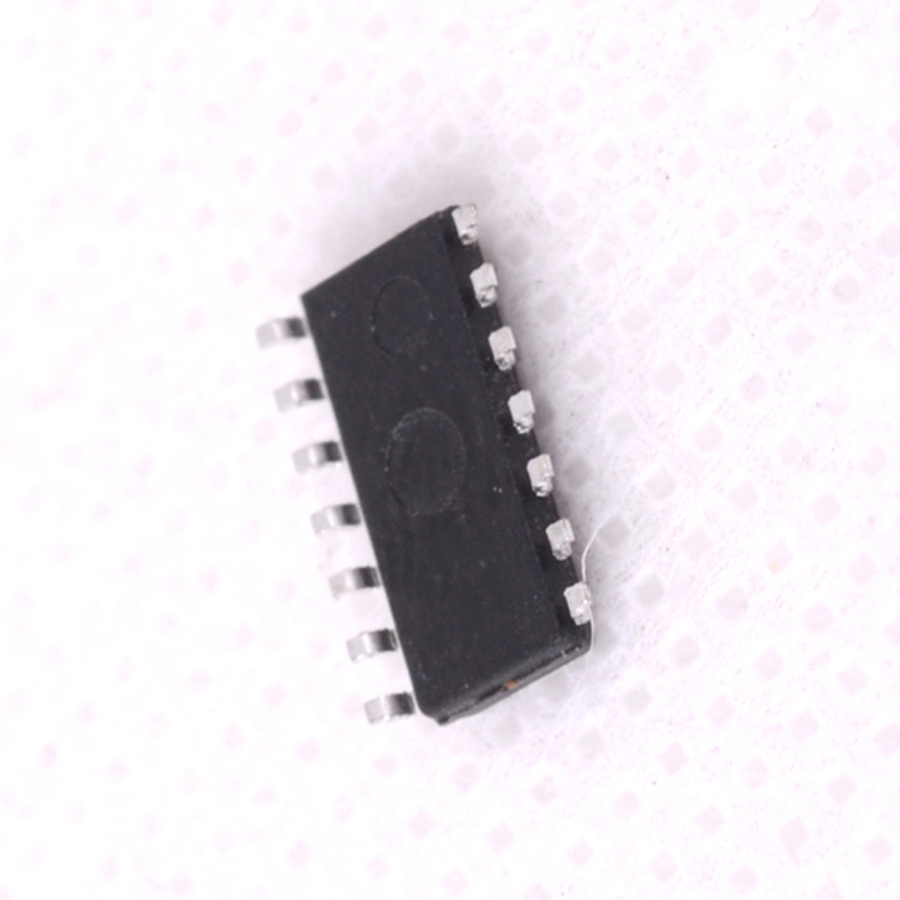

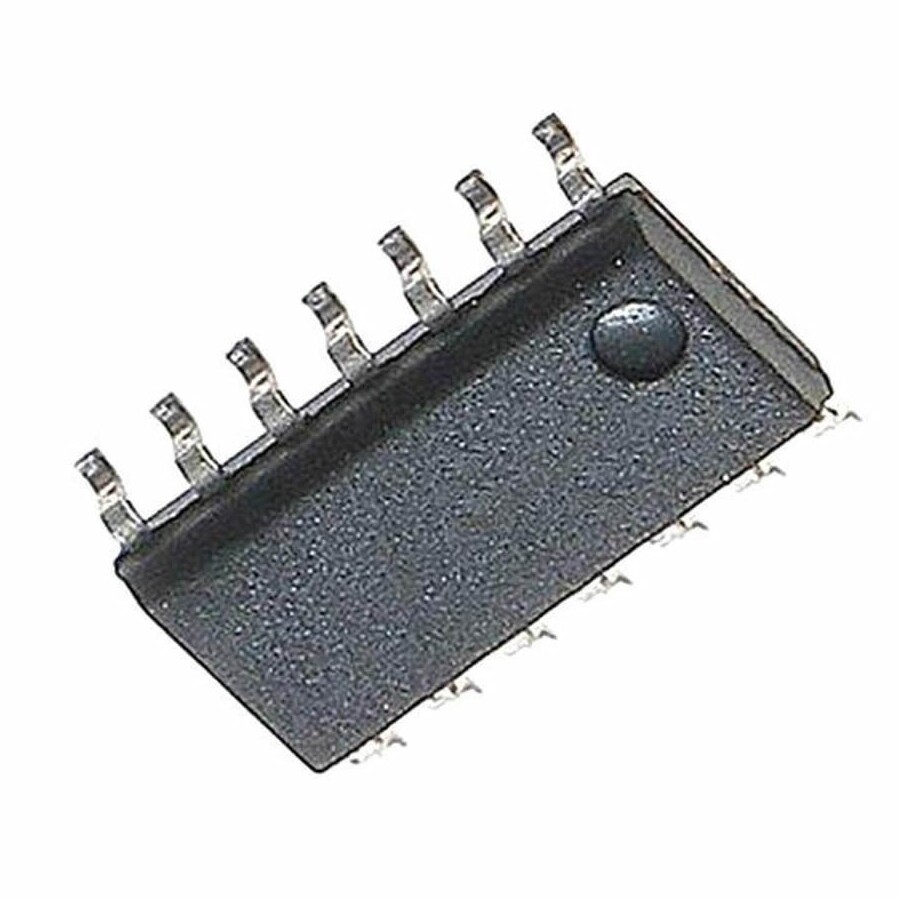

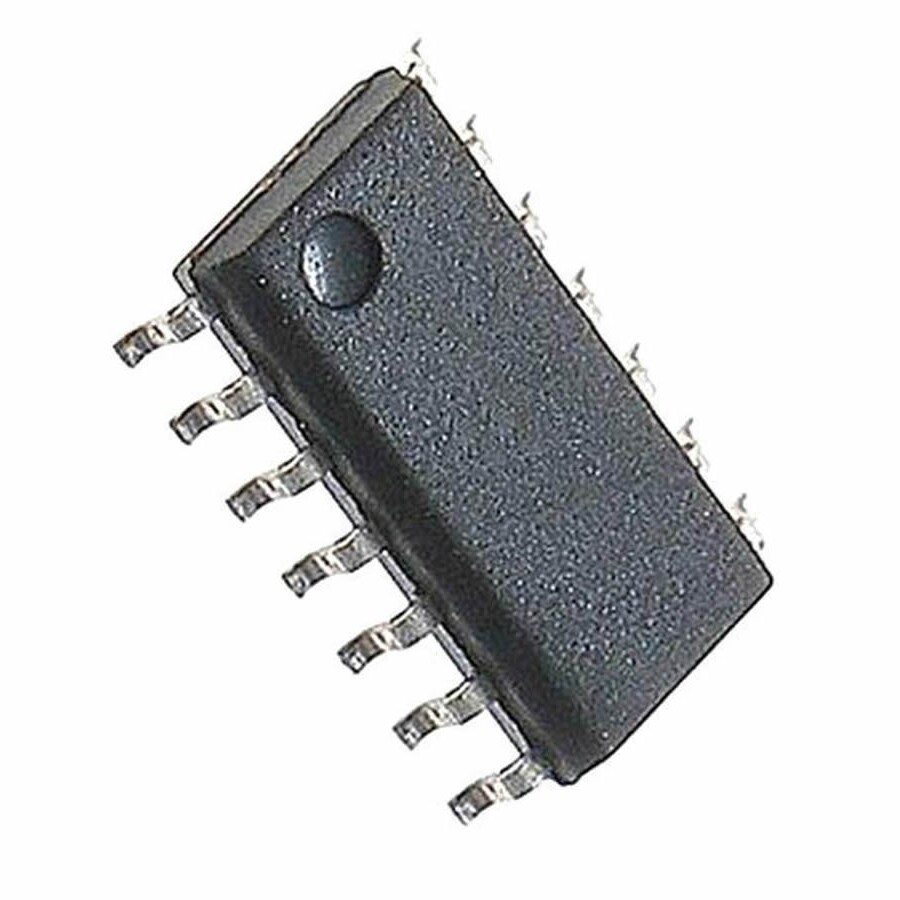

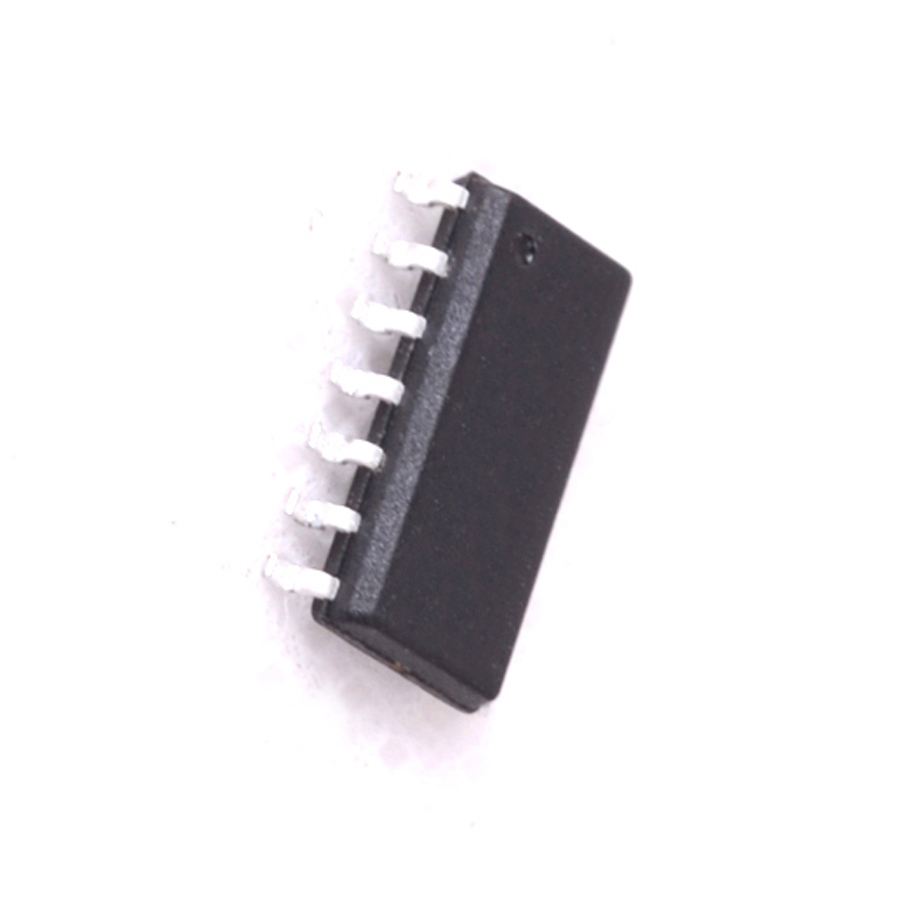

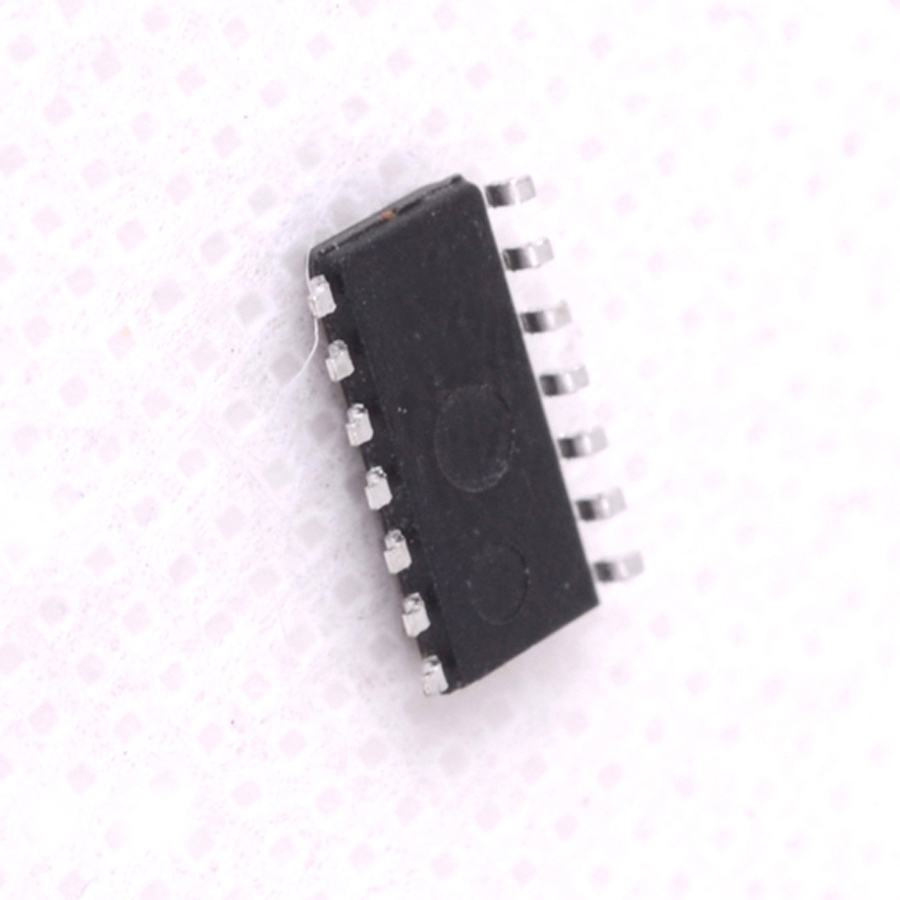

SN74HC05D Logic IC CASE: SOP14 MAKE: Texas Instruments
Product specifications
Equivalent SN74HC05DR
Type Logic IC
Case SOP14
Manufacturer Texas Instruments
Ckts Per Dev. 6
Vih Min (V) 3.15
Vil Max. (V) 0.9
Inp Per Ckt 1
Output Config Open-Drain
VOL Max. 0.33
tPD Max. (S) 29n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 4.0m
Pinout Equivalence Number 14-447
Surface Mounted Yes/No YES
SKU 298693
