SN74HC05DR
View detailed images (12)

SN74HC05DR

SKU: SN74HC05DR

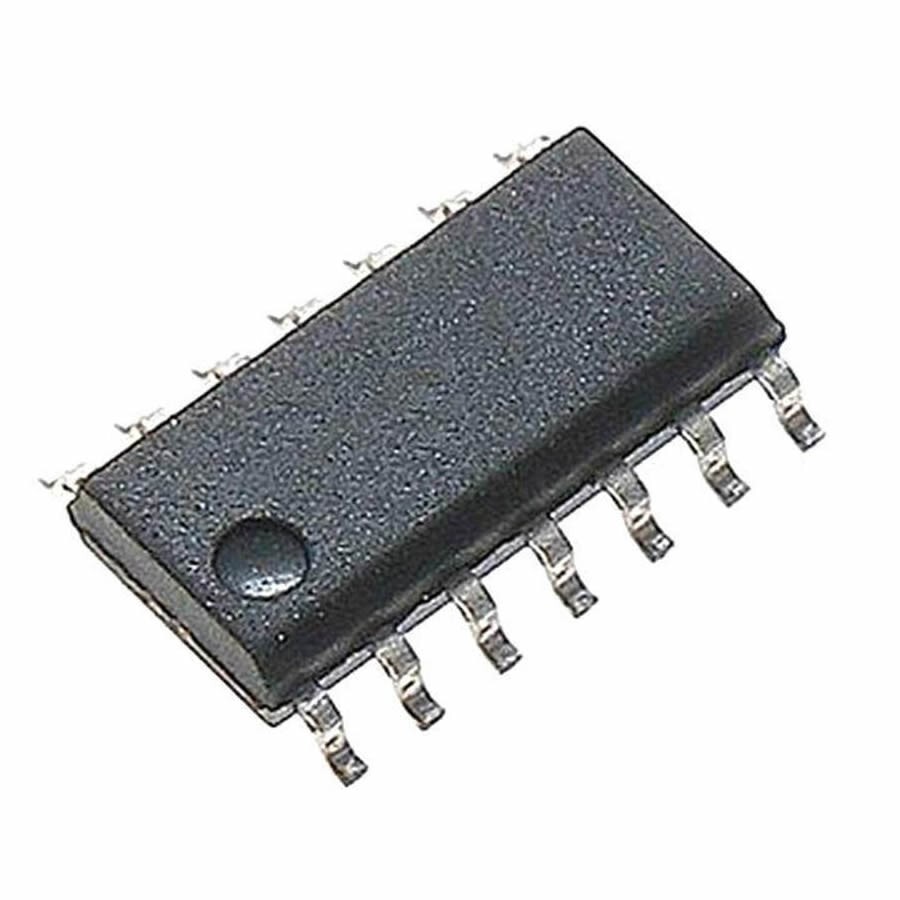

SN74HC05DR Integrated Circuit - Case: SOP14 Make: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Equivalent SN74HC05D
Type Logic IC
Case SOP14
Manufacturer Texas Instruments
Ckts Per Dev. 6
Vih Min (V) 3.15
Vil Max. (V) 0.9
Inp Per Ckt 1
Output Config Open-Drain
VOL Max. 0.33
tPD Max. (S) 29n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 4.0m
Pinout Equivalence Number 14-447
Surface Mounted Yes/No YES
SKU 298694
